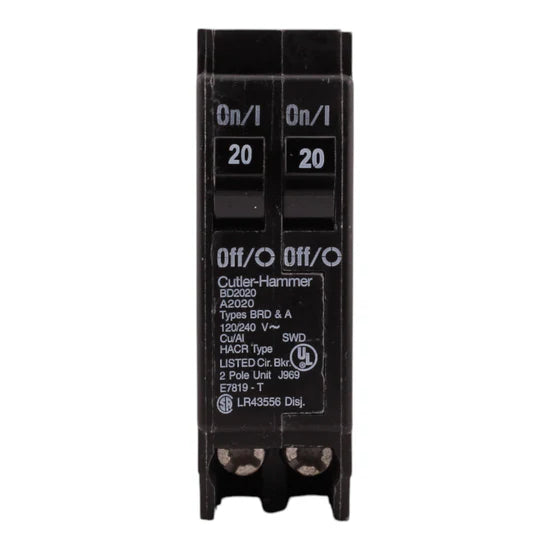

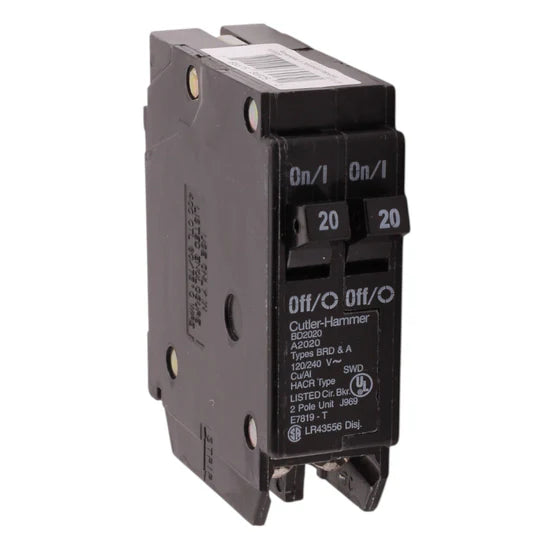

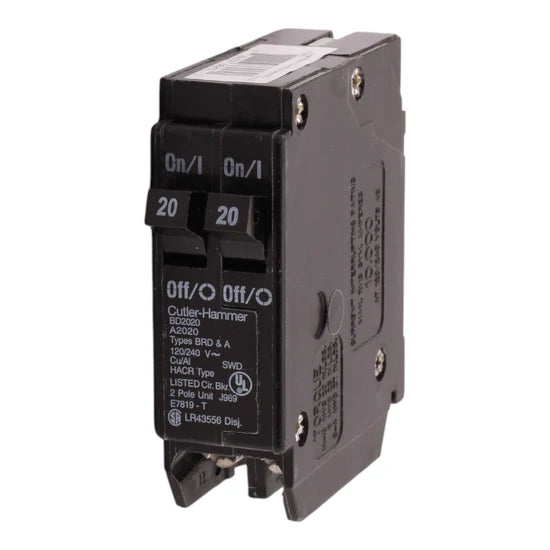

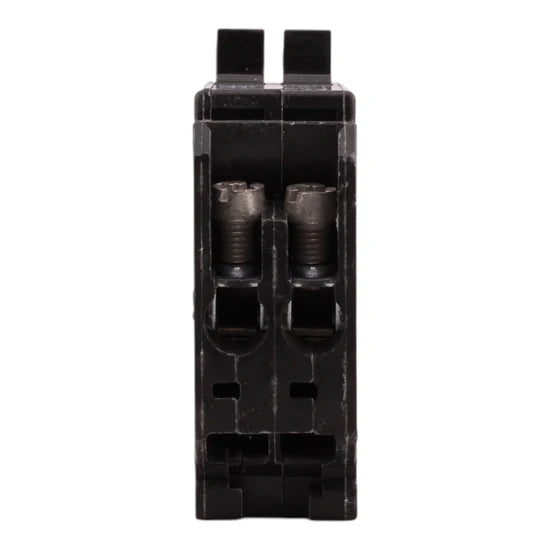

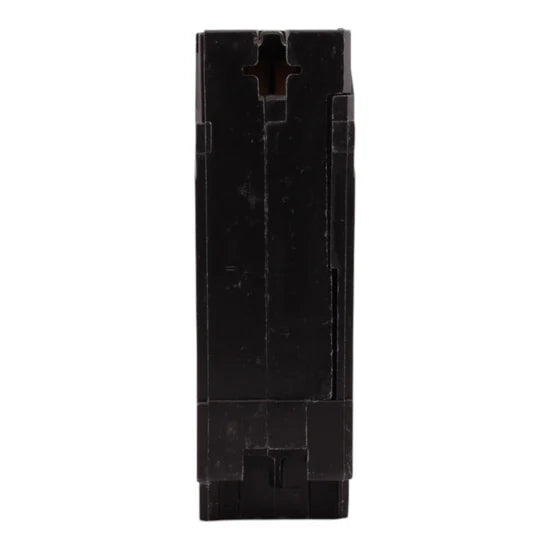

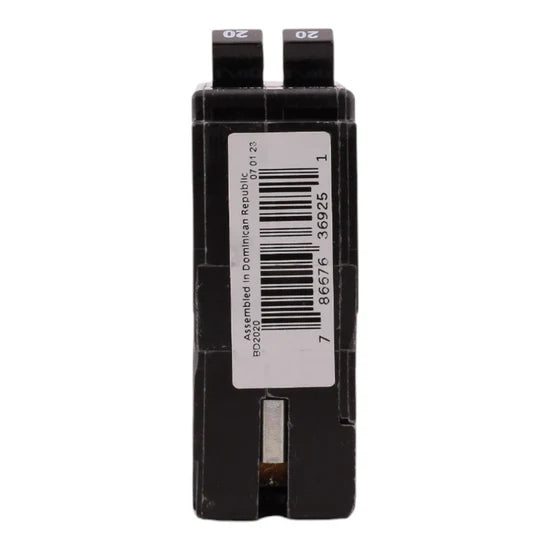

Eaton BD2020 20A 1-Pole Duplex – Plug-On – 120V

The Eaton BD2020 is a 20 Amp, 1-Pole duplex (tandem) circuit breaker designed for Type BR loadcenters. It provides reliable 120V residential circuit protection with a compact form factor and includes a rejection tab feature for safe and secure installation.

Electrical Specifications

• Breaker Type: Duplex Circuit Breaker
• Amperage: (2) 20 Amps
• Poles: Single-Pole
• Voltage: 120 Volts AC
• Interrupt Rating: 10 kAIC

Mechanical & Mounting Specifications

• Mounting Mode: Plug-On
• Connection Terminals: Not applicable
• Wire Size Range: #14–4 AWG Cu/Al
• Tightening Torque: 35.4 lb-in

Certifications

• UL 489 Listed
• HACR Rated

Physical Dimensions

• • Height: 1.0 in
  • Width: 1.6 in
  • Depth: 3.0 in
  • Weight: 0.37 lbs

Key Features

• Reliable 20A, 1-Pole duplex protection for 120V circuits
• Compact tandem design saves panel space
• Rejection tab feature prevents improper installation
• Plug-on mounting for easy installation in BR loadcenters
• UL and HACR listed for compliance and safety
