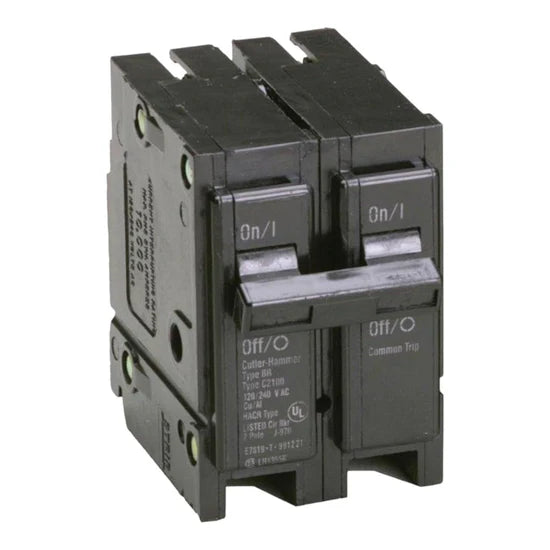

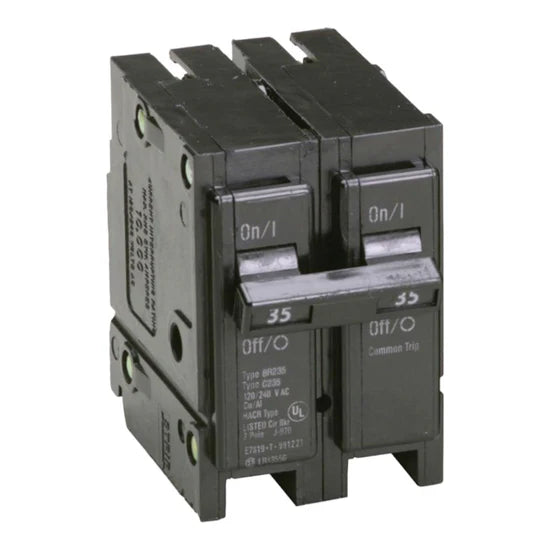

Eaton BR BR235 35A 2-Pole Thermal-Magnetic Circuit Breaker – 120/240V AC

The Eaton BR235 is a 35 amp, 2-pole thermal-magnetic circuit breaker designed for use in Eaton BR load centers as well as compatible panels from Cutler-Hammer, Bryant, Westinghouse, and Challenger. It provides reliable overcurrent protection for 120/240V circuits, safeguarding wiring and equipment from overloads and short circuits.

Featuring line and load lug terminals, this breaker ensures secure connections and consistent performance. Its standard trip design makes it a dependable choice for residential and commercial branch circuits.

Voltage and Ratings

• Current Rating: 35 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Standard Trip (Thermal-Magnetic)
• Poles: 2-Pole
• Series: BR
• Mounting Type: Plug-On
• Terminal Type: Line and load lug terminals
• Application: Overcurrent protection for branch circuits
• Compatible Panels: Eaton BR load centers and compatible panels (Cutler-Hammer, Bryant, Westinghouse, Challenger)

Technical Specifications

• Wire Size Range: #14–4 AWG
• Terminal Tightening Torque: 20 lb-in
• Operating Mechanism: Thermal-magnetic trip

• Dimensions:

  • Height: 2.5 in
  • Width: 2.0 in
  • Depth: 1.9 in
  • Weight: 0.6 lbs

• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: BR235
• UPC: 786676374354
