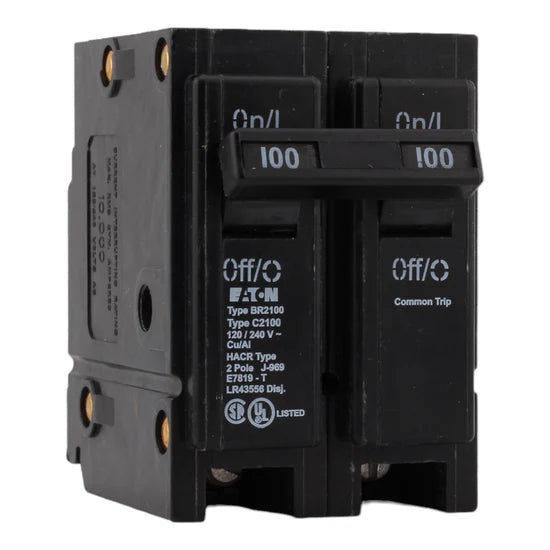

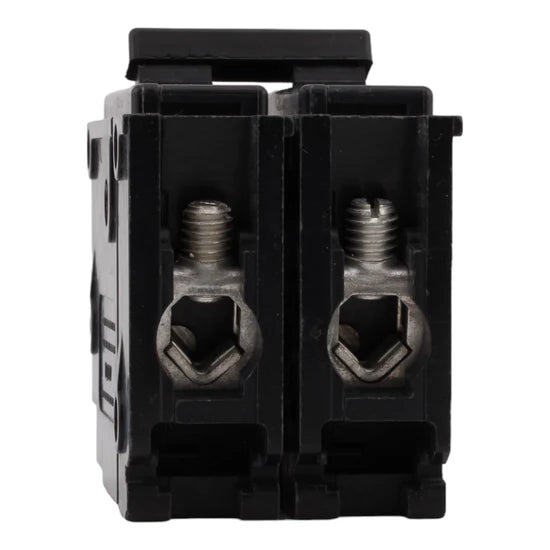

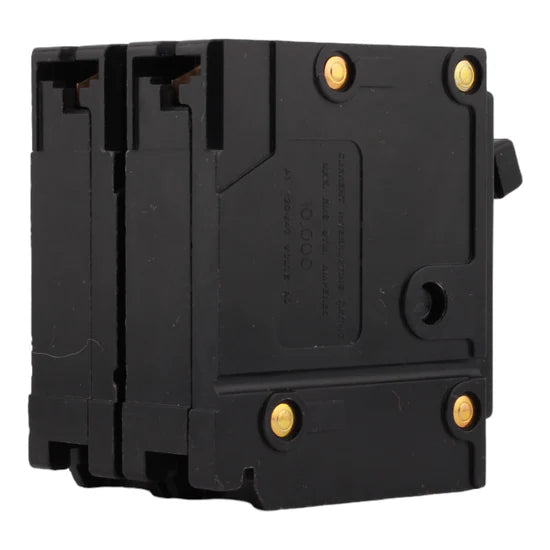

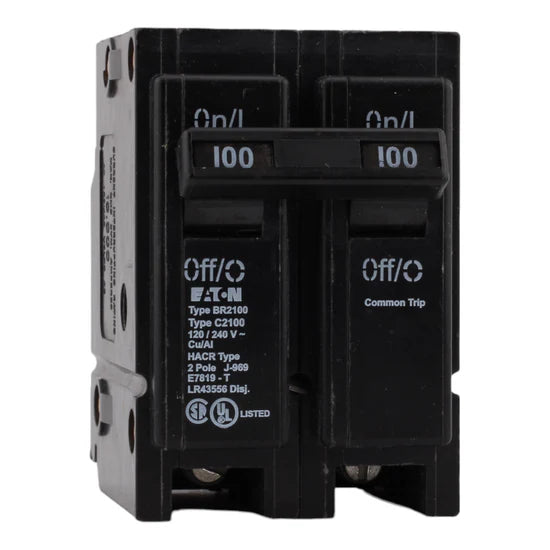

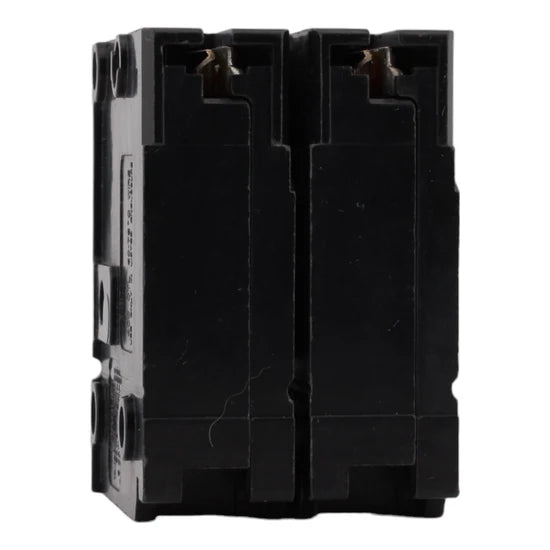

The Eaton BR2100CS 100 Amp two-pole circuit breaker delivers reliable overcurrent protection for residential and light commercial electrical systems. Designed for Type BR load centers, this thermal-magnetic breaker provides dependable performance with a common trip mechanism that simultaneously disconnects both poles during fault conditions. The plug-on design enables quick installation, while the high interrupt rating ensures robust circuit protection.
Voltage and Rating
- Amperage Rating: 100 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupt Rating: 42 kAIC
Key Specifications
- Type: Type BR 1-Inch Plug-On Circuit Breaker
- Number of Poles: 2-Pole
- Connection Type: Plug-On
- Trip Type: Thermal Magnetic
- Special Features: Common breaker trip, clamshell pack
- Compatibility: Type BR load centers
Technical Specifications
- Wire Size: #4–1/0 AWG Copper/Aluminum
- Mounting Style: Plug-on breaker
- Protection Function: Overload and short-circuit protection
- Certifications: UL Listed
Product Data
-
- Brand: Eaton
- Model Number: BR2100CS
- UPC: 782116630523
- Dimensions (H × W × L): 3 in × 2 in × 3 in
- Weight: 0.5 lb
