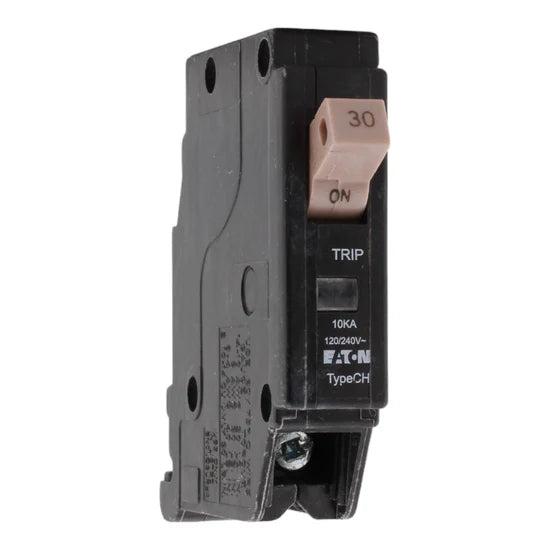

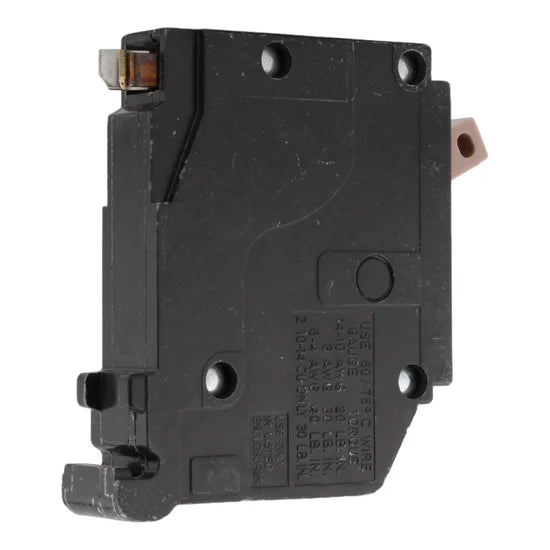

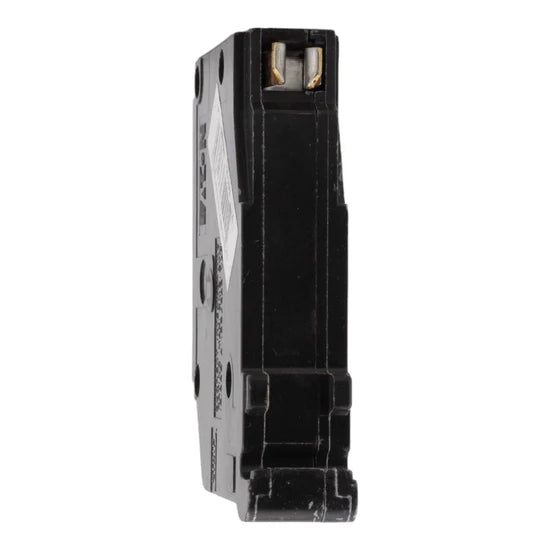

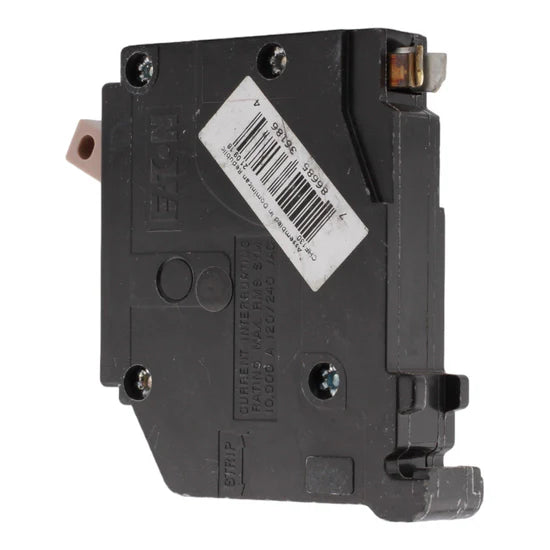

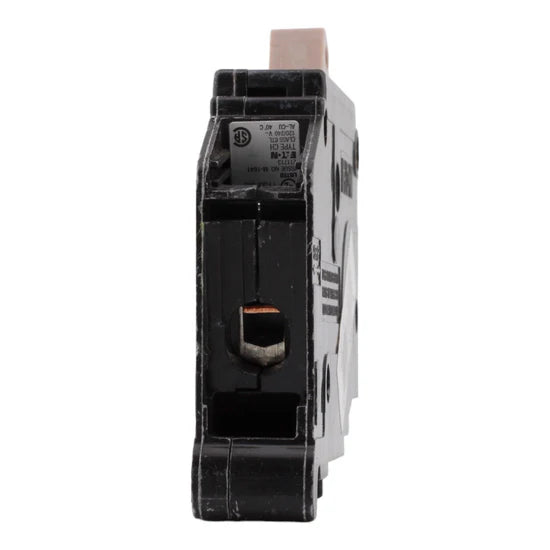

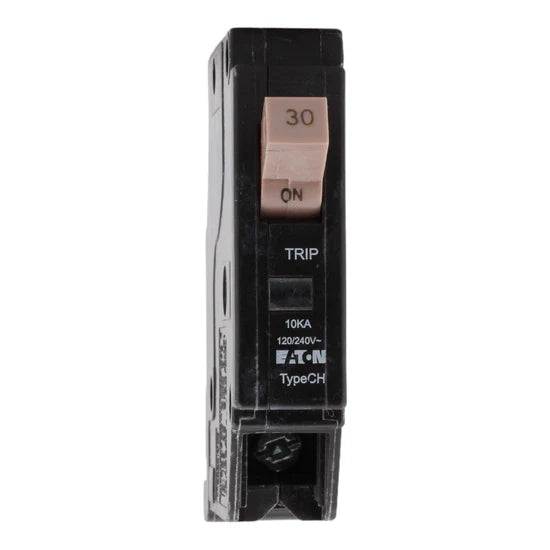

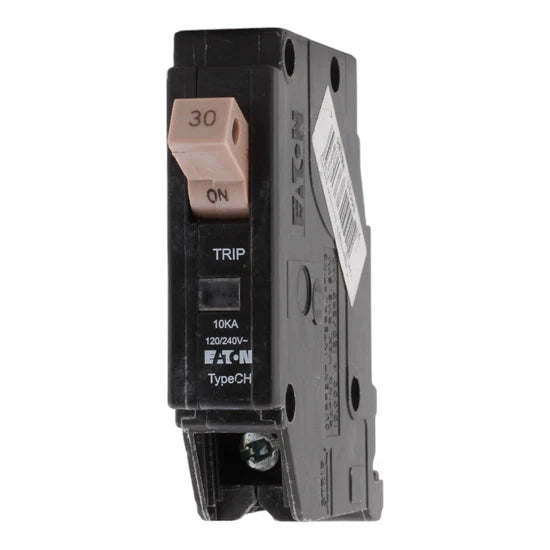

Eaton CHF130 30A 1-Pole Standard Circuit Breaker – Plug-On – 120/240V

The Eaton CHF130 is a 30-amp, single-pole standard circuit breaker designed to provide reliable overcurrent and short-circuit protection in Eaton CH load centers. Rated for 120/240V AC with a 10kA interrupt capacity, this breaker is suitable for residential and light commercial branch circuit applications. Its plug-on mounting design allows fast and secure installation, while terminals support copper or aluminum conductors. Built with a thermal-magnetic trip mechanism and certified to UL and CSA standards, the CHF130 delivers dependable circuit protection and long service life.

Voltage and Rating

• Current Rating: 30 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Standard (Thermal-Magnetic)
• Number of Poles: 1-Pole
• Mounting Type: Plug-On
• Series: CH Series
• Application: Residential and light commercial branch circuit protection
• Compatible Load Centers: Eaton CH load centers

Technical Specifications

• Wire Size Range:
• (1) #14–8 AWG
• (2) #14–10 AWG (Copper/Aluminum)
• Connection Type: Plug-on terminal
• Operating Mechanism: Thermal-magnetic trip unit
• Interrupt Rating: 10 kAIC
• Certifications: UL 489 Listed, CSA Approved

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: CHF130
• UPC: 786685361864

• Dimensions:

  • Height: 3.5 in
  • Width: 1.5 in
  • Depth: 3.5 in

• Weight: 0.28 lbs
