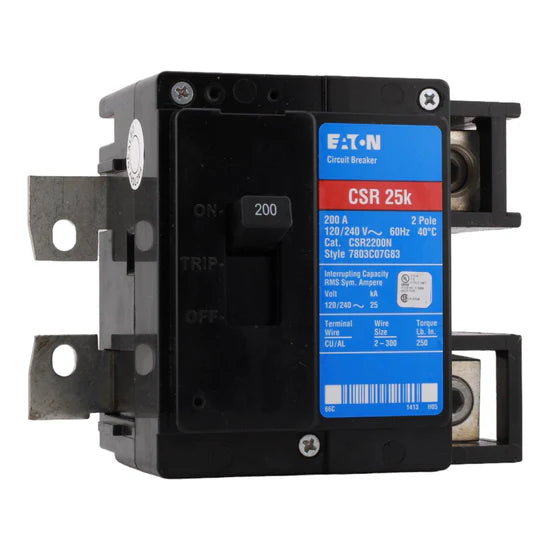

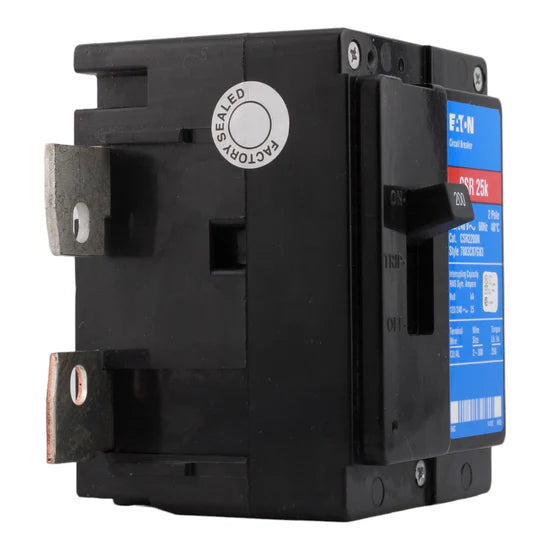

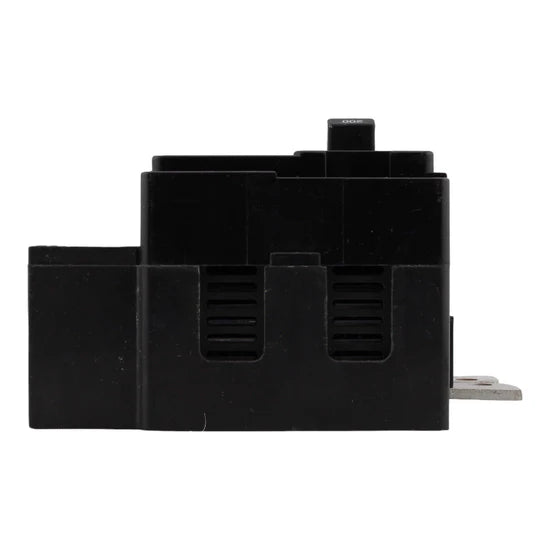

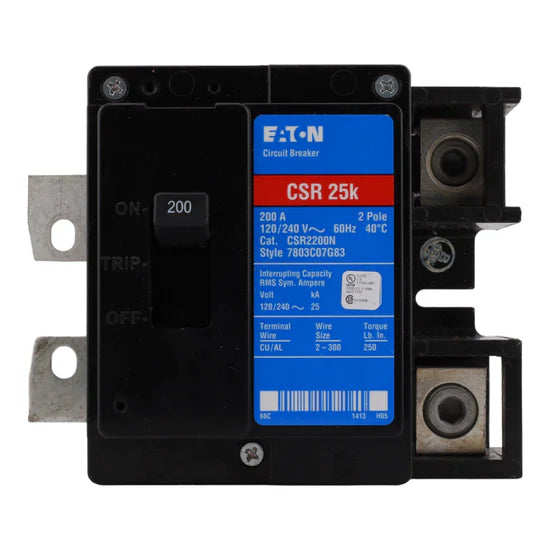

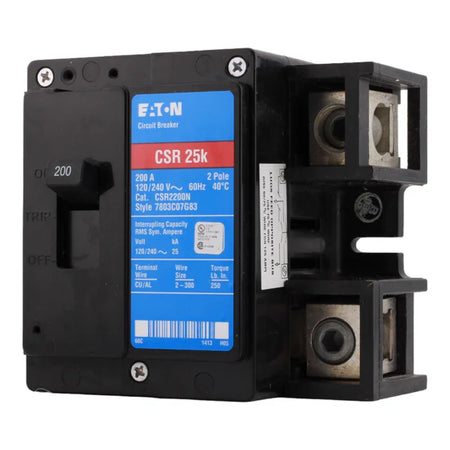

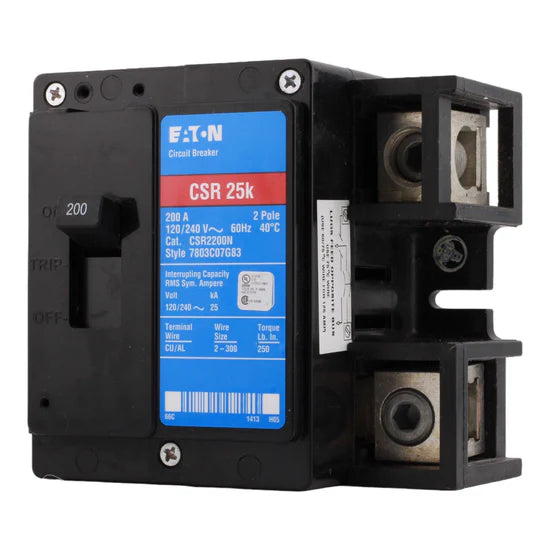

Eaton CSR2200N 200A 2-Pole Thermal-Magnetic Circuit Breaker – Lug Terminals – 120/240V AC

The Eaton CSR2200N is a 2-pole thermal-magnetic circuit breaker designed for dependable overcurrent and short-circuit protection in Eaton CH series load centers. Engineered for consistent performance, it helps protect electrical systems by automatically interrupting power when abnormal current conditions occur.

Equipped with lug terminals for secure wiring and a 25 kA interrupt rating, this breaker is suitable for installations where reliable fault protection and durable construction are required in 120/240V AC systems.

Voltage and Ratings

• Voltage Rating: 120/240 Volts AC
• Current Rating: 200 Amps
• Interrupting Capacity: 25 kAIC

Key Specifications

• Breaker Type: Thermal-Magnetic
• Poles: 2-Pole
• Series: CH

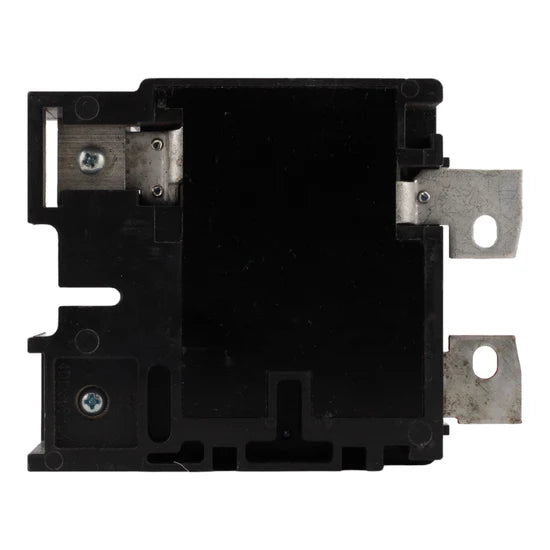

• Mounting Type: Plug-on

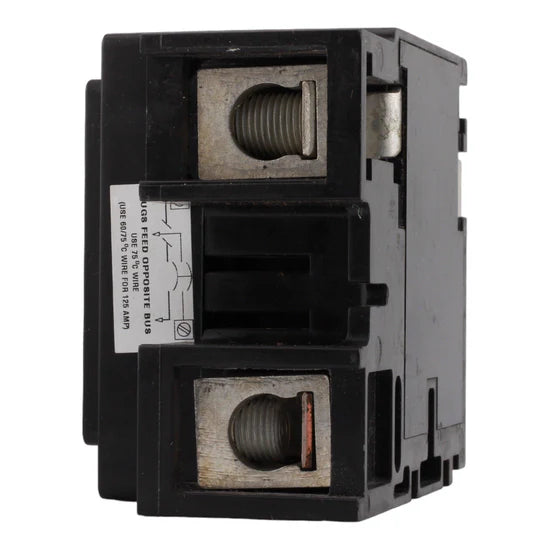

• Terminal Type: Lug terminals
• Compatible Panels: Eaton CH load centers and related equipment

Technical Specifications

• Wire Size: #2 AWG – 300 kcmil
• Tightening Torque: 275 lb-in

• Dimensions:

  • Height: 3.52 in
  • Width: 4.2 in
  • Depth: 5.3 in

• Weight: 2.5 lbs

• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: CSR2200N
• UPC: 782113098463
• Product Range: CH
