Eaton ECCVH150R 150A 2-Pole Enclosed – NEMA 3R – 240V

The Eaton ECCVH150R 150A 2-Pole Enclosed – NEMA 3R – 240V circuit breaker delivers robust 150 Amp, 2-pole overcurrent protection in a weatherproof NEMA 3R rainproof enclosure for outdoor and service entrance applications. Designed as part of Eaton’s ECC Series, this unit includes a factory-installed CCVH2150 molded case breaker with a 25 kAIC interrupt rating, ensuring dependable protection for 240V AC circuits. The surface-mounted enclosure supports copper and aluminum conductors up to #4–4/0 AWG and is UL 489 listed and CSA certified, providing reliable performance and safety in residential, light commercial, and outdoor installations.

Voltage and Rating

• Current Rating: 150 Amps
• Voltage Rating: 240 Volts AC
• Interrupting Capacity: 25 kAIC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Enclosed Molded Case Circuit Breaker
• Number of Poles: 2-Pole
• Mounting Type: Surface
• Product Range: ECC Series (enclosed breakers for outdoor and service entrance applications)
• Application: Outdoor, residential, and light commercial branch and service protection

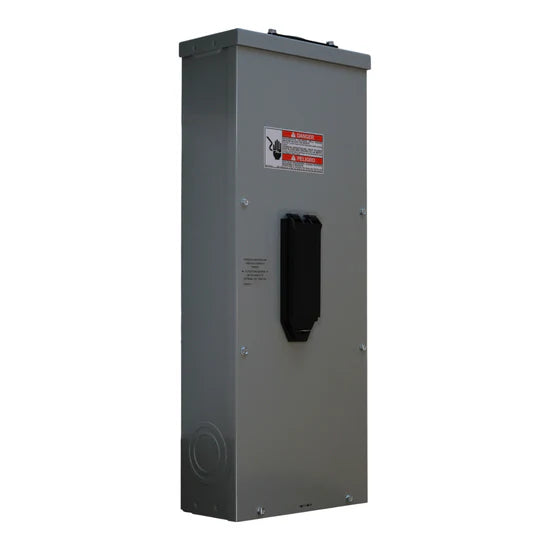

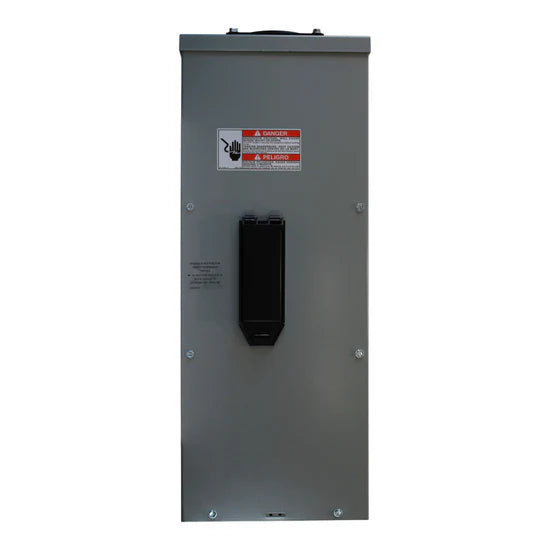

• Enclosure Rating: NEMA 3R (rainproof, outdoor)

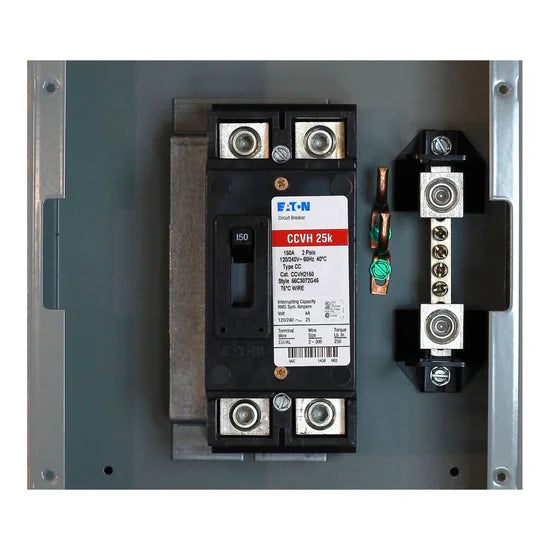

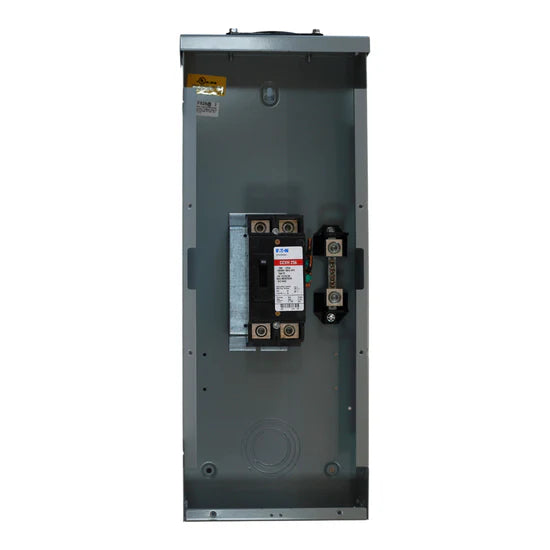

• Included Breaker: CCVH2150 (Type CCV tenant main breaker)
• Ratings: UL 489 Listed, CSA Certified

Technical Specifications

• Wire Size: #4–4/0 AWG Cu/Al
• Operating Mechanism: Thermal-magnetic molded case
• Interrupt Rating: 25 kAIC
• Certifications: UL 489 Listed, CSA Certified

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: ECCVH150R
• UPC: 786685934846

Dimensions

• • Height: 23.69 in
  • Width: 9.31 in
  • Depth: 5.44 in
  • Weight: 16.3 lbs
