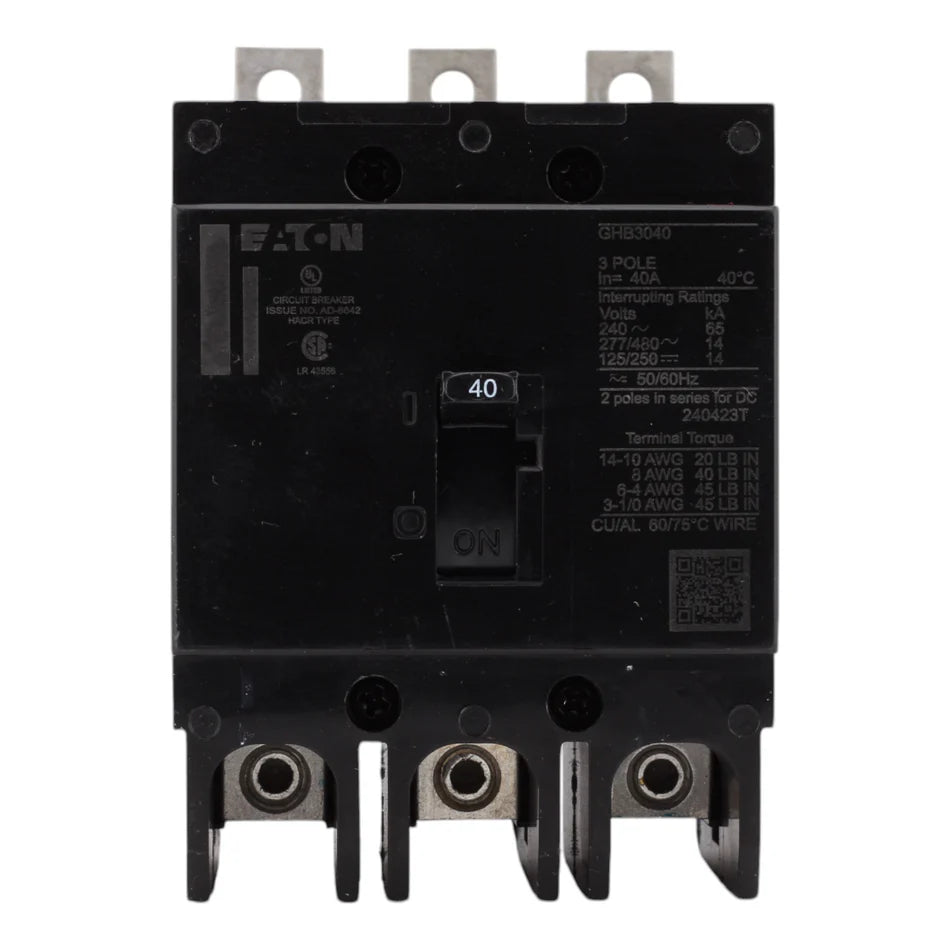

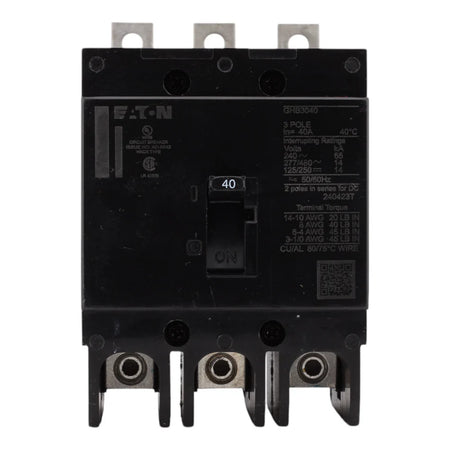

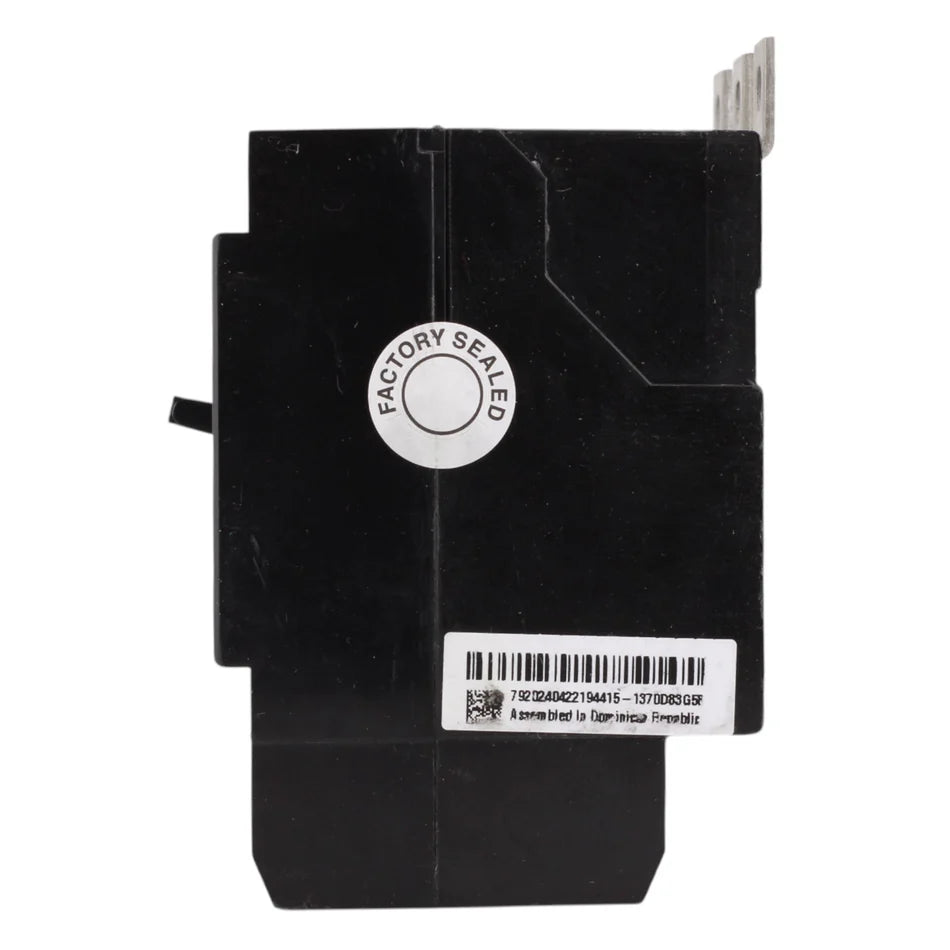

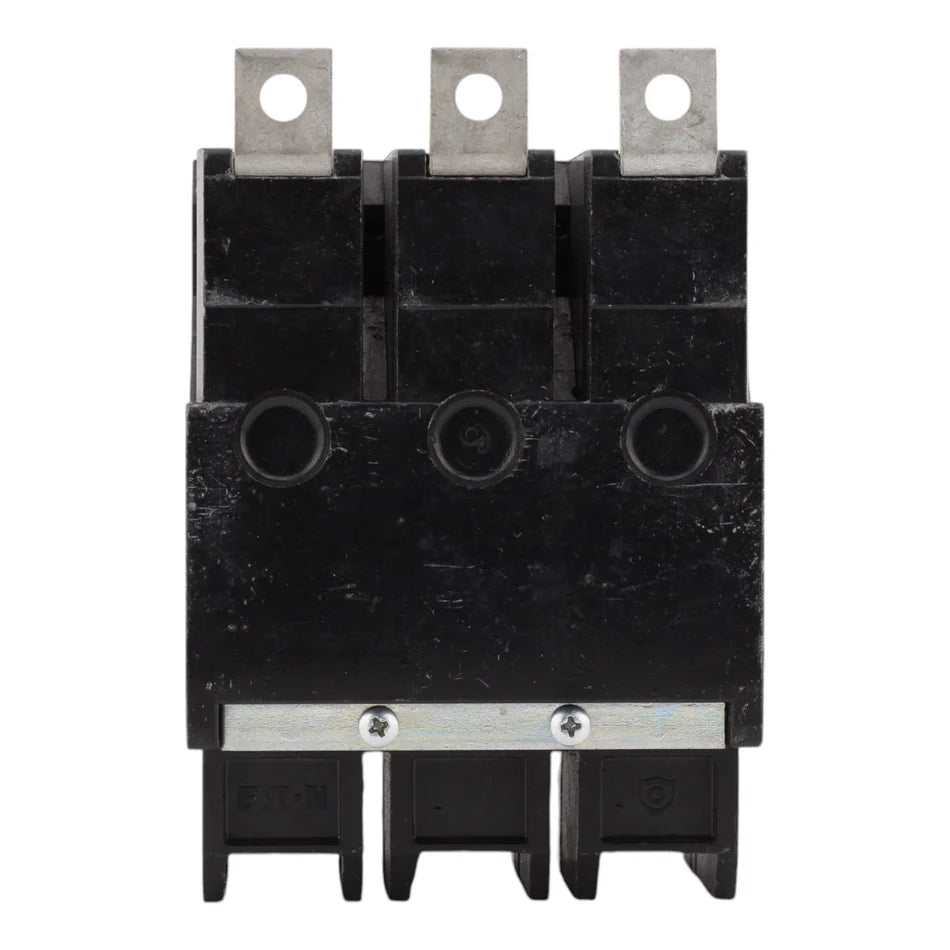

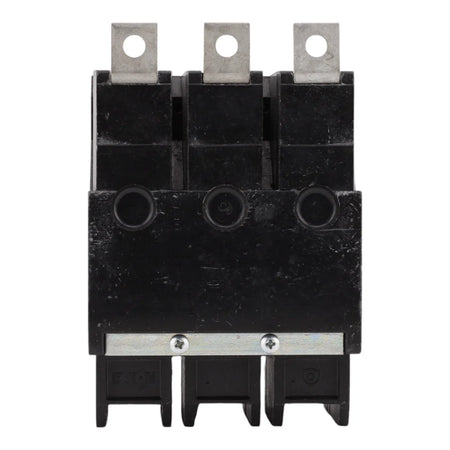

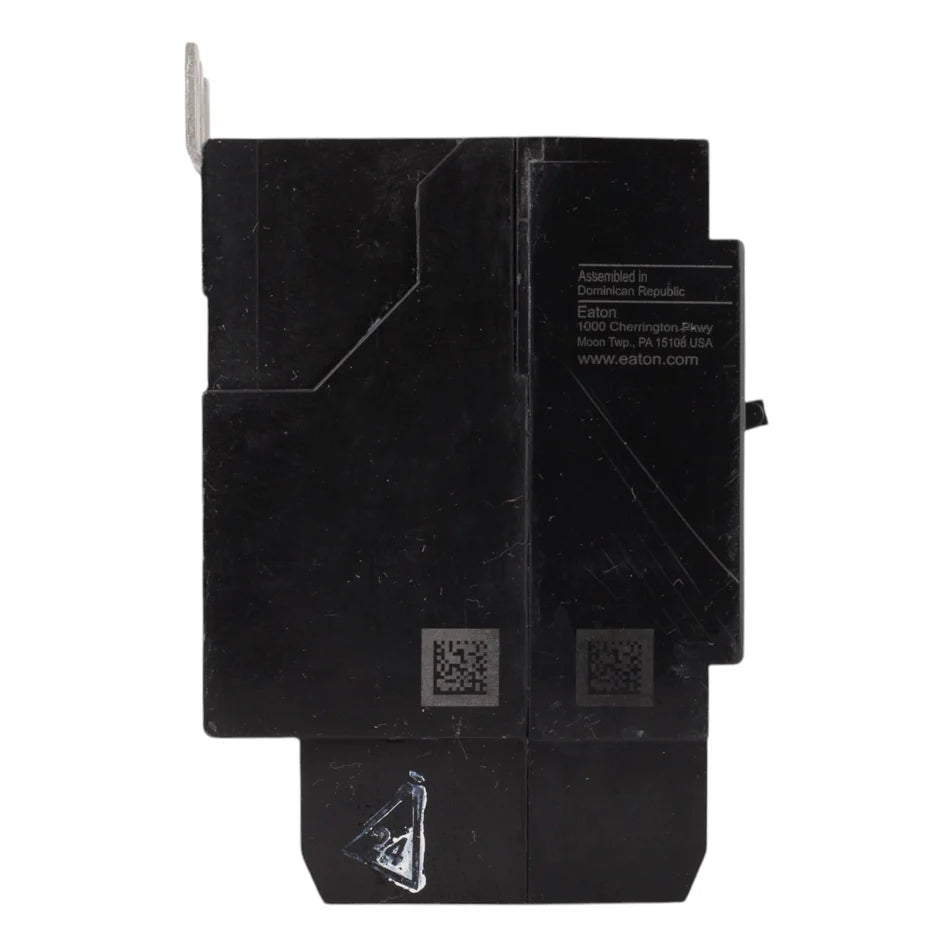

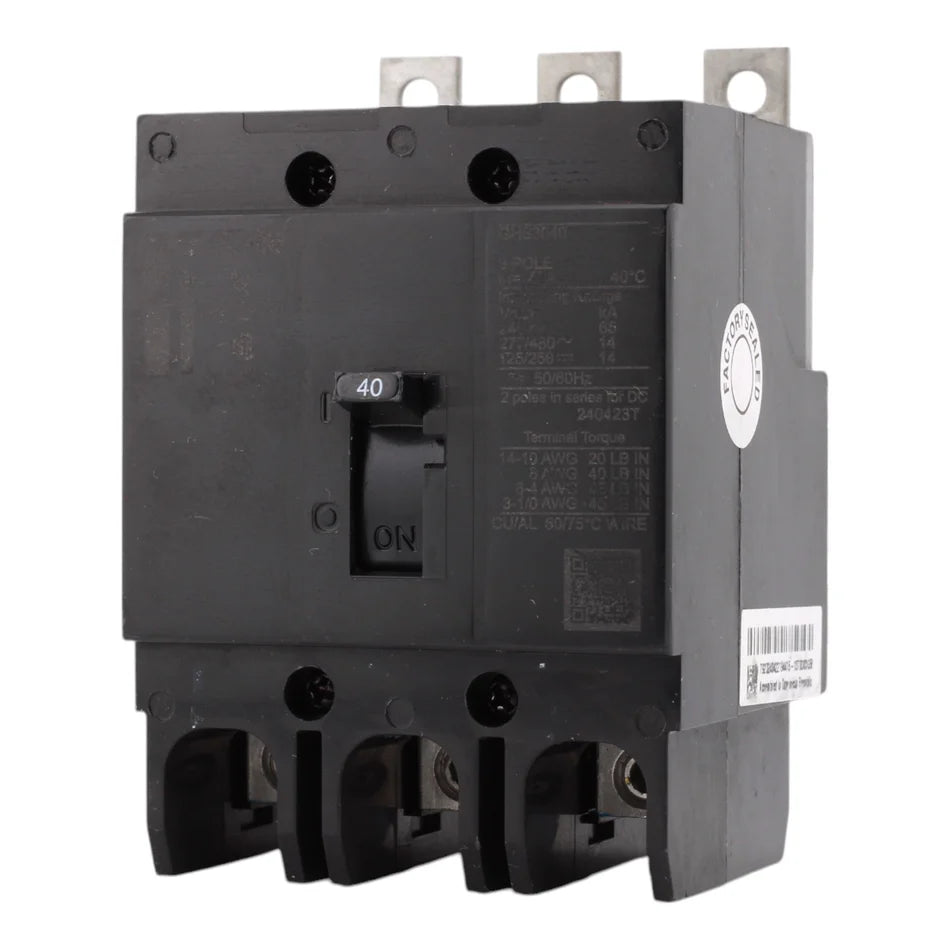

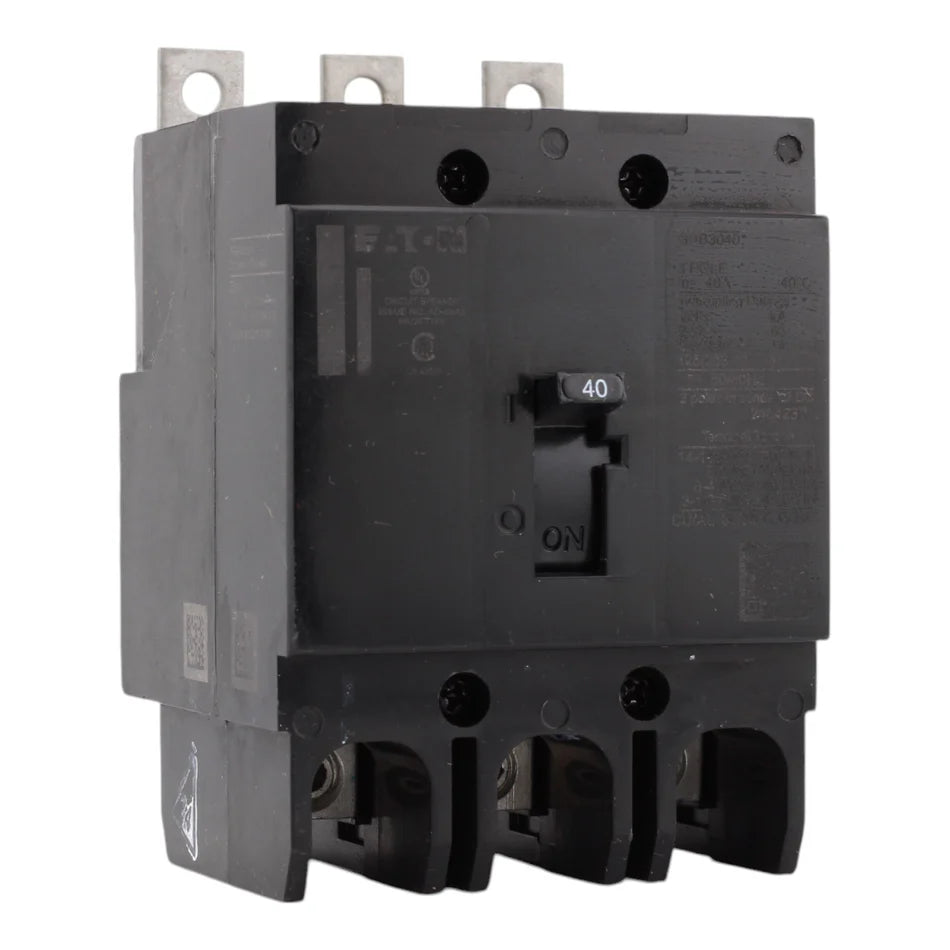

Eaton GHB3040 40 Amp Molded Case Circuit Breaker – 3-Pole – Fixed Thermal Magnetic

The GHB3040 Molded Case Circuit Breaker from Eaton is a compact, high-performance breaker designed for commercial and industrial power distribution systems. Built on Eaton’s G-Frame platform, it provides dependable overcurrent and short-circuit protection with fixed thermal and magnetic trip settings, making it ideal for applications requiring consistent and reliable performance.

Voltage and Rating

• Current Rating: 40 Amps
• Voltage Rating:
• 480Y/277 Volts AC
• 125/250 Volts DC
• Frequency Rating: 50 / 60 Hz

Breaker Details

• Breaker Type: Molded Case Circuit Breaker (GHB Series)
• Trip Type: Fixed Thermal / Fixed Magnetic
• Number of Poles: 3-Pole
• Frame Type: G-Frame

Interrupt Ratings

• 14 kAIC @ 480Y/277V AC
• 65 kAIC @ 240V AC

Certifications

• UL Listed

Physical Specifications

• Dimensions (H × W × D): 4 × 3 × 2.63 inches
• Weight: 1.75 lbs

Product Data

• Brand: Eaton
• Model Number: GHB3040
• UPC: 786679911280
