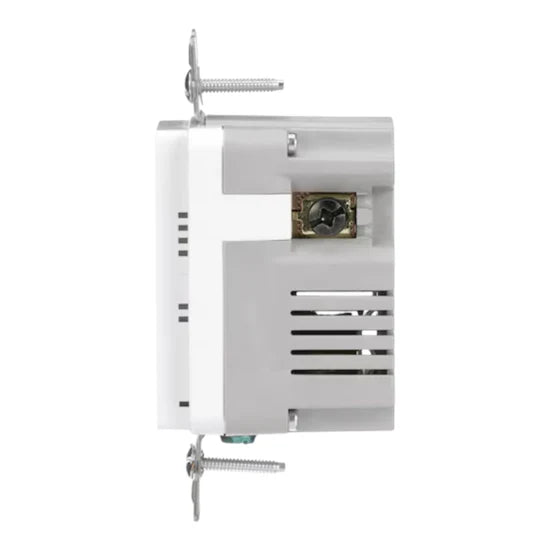

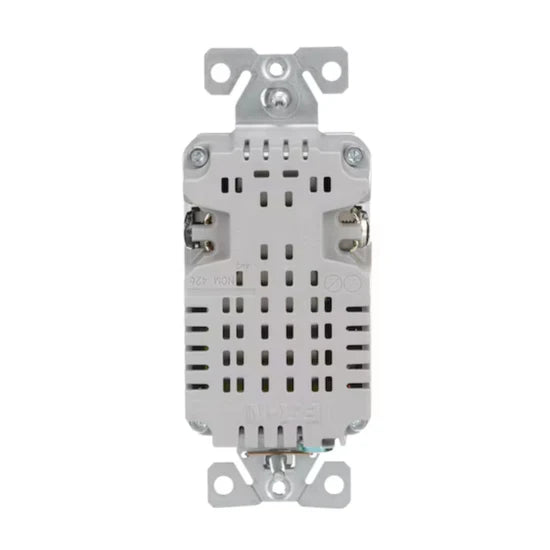

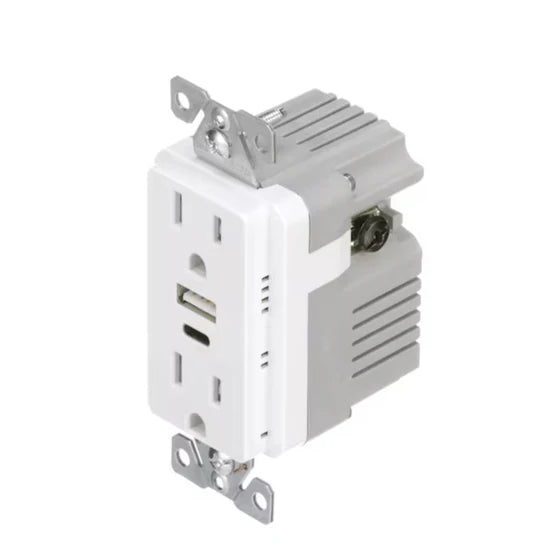

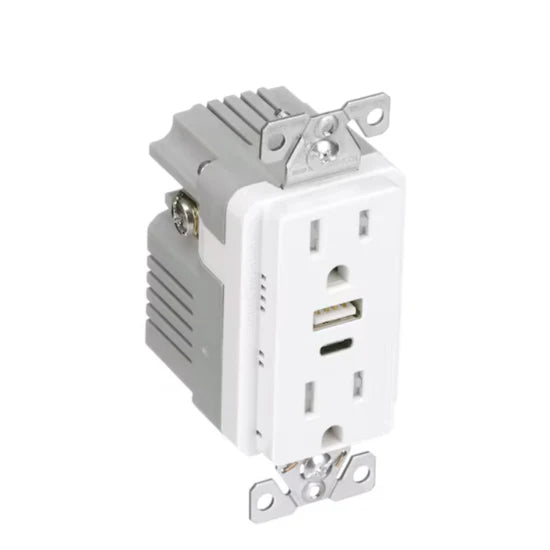

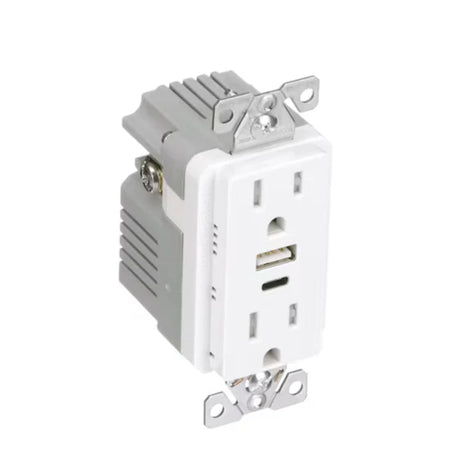

Eaton TRUSBAC15W-BOX 15A USB Type A/C Charger – Duplex Receptacle – 125V – White

The Eaton TRUSBAC15W-BOX is a 15 Amp, 125V duplex receptacle with built-in USB Type A and C charging ports, delivering 5A combined USB output. Its tamper-resistant decorator style and durable thermoplastic construction make it ideal for residential and commercial applications, providing safe, convenient charging for modern devices.

Voltage and Rating

• Amperage Rating: 15 Amps (receptacle)
• Voltage Rating: 125 Volts AC
• USB Charging: 5 Amps combined (5 VDC)

Key Specifications

• Receptacle Type: Two-pole, three-wire, grounding
• USB Ports: 2 ports – Type A and Type C
• Poles: Two-pole
• Number of Wires: Three-wire
• NEMA Configuration: 5-15R
• Contact Material: Brass
• Wiring Method: Screw terminals (back and side wiring)
• Allowable Wire Size: #10–14 AWG Copper or Copper Clad Aluminum
• Tightening Torque: 14 lb-in
• Mounting Method: Flush
• Style: Decorator
• Material: Thermoplastic
• Color: White

Features

• Tamper-resistant shutters for added safety
• Automatic grounding system
• Patented built-in wire strippers
