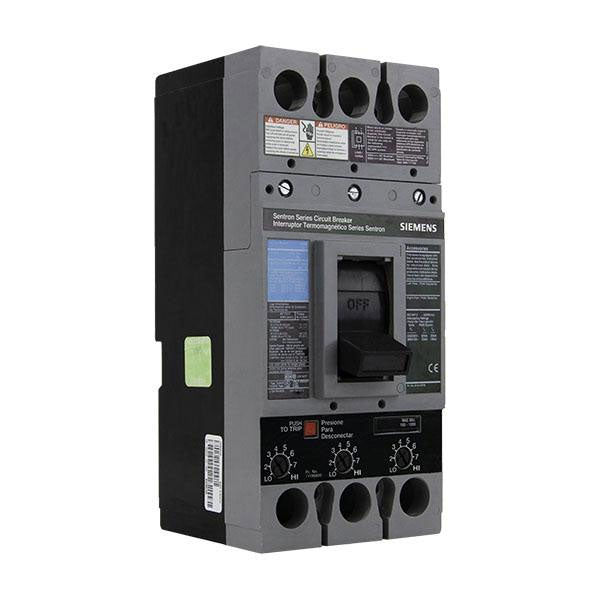

FXD62B250 - Siemens Bolt-On 600V 250A 2 pole circuit breaker 35kA@480V
Couldn't load pickup availability
Ask an expert
Description
FXD62B250
The Siemens FXD62B250 is a Molded Case Circuit Breaker. This type FXD circuit breaker is a member of The Sentron Series family. The FXD62B250 is a 2 pole, 600 Volt, 250 amp rated circuit breaker, with an AIC rating of 35kA@480V. The FXD62B250 is manufactured by Siemens. The FXD62B250 uses a Bolt-On connection. Includes Thermal Magnetic protection. Every part My Circuit Breakers sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: FXD62B250
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 250A/FD
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783643211186
- GTIN : 00783643211186
- Country of Origin : Mexico
- Dimensions : 4.5 in x 9.5 in
- Weight : 7.1
- Panel Type : SB Switchboards Without Lugs, Sentron Panelboards
- Standards : UL Listed
- Certification : UL Listed
- Type Circuit Breakers
- Vendor Siemens / ITE
- Brand Siemens
- Electrical Rating Bolt-on - 250 Amp - 2 Pole - 600 Volt
