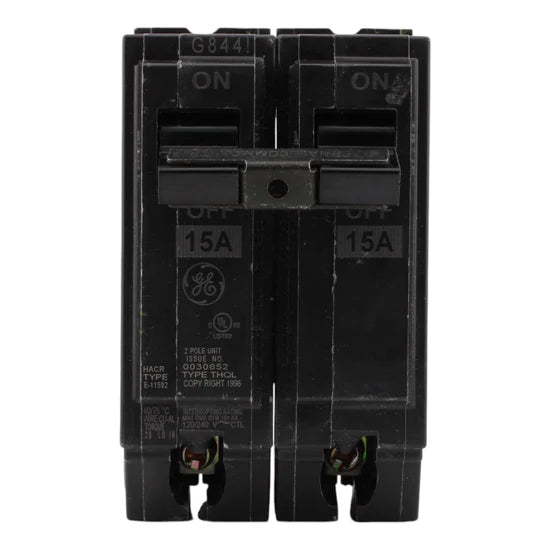

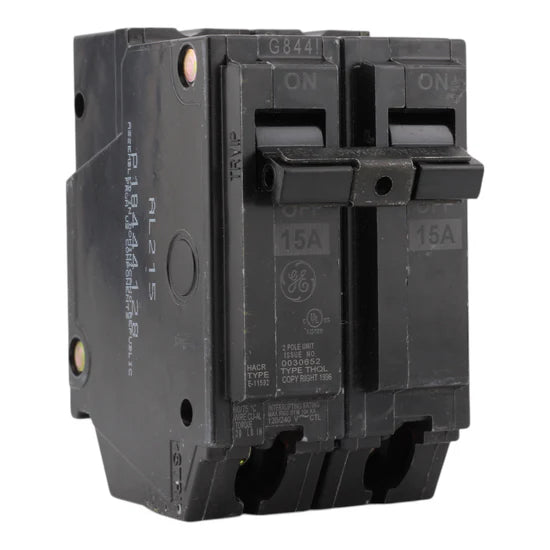

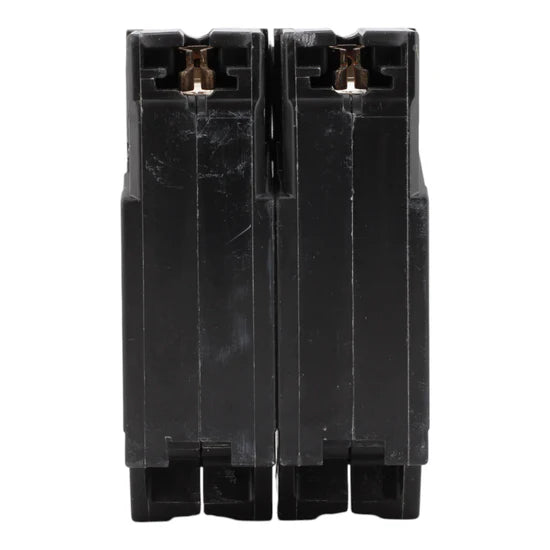

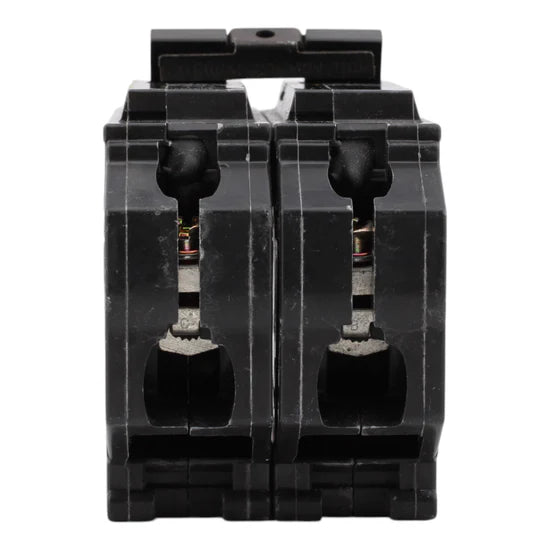

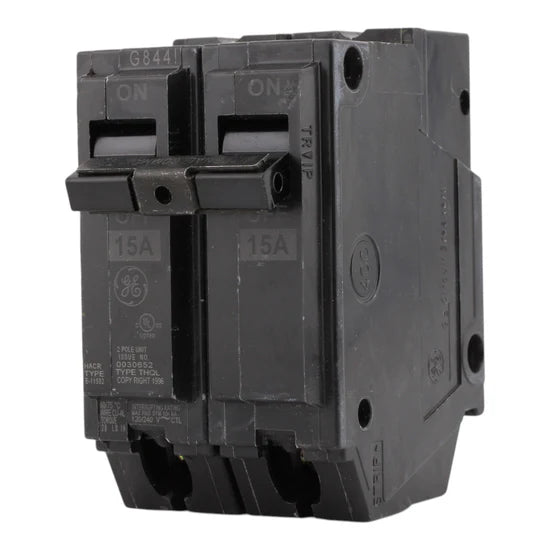

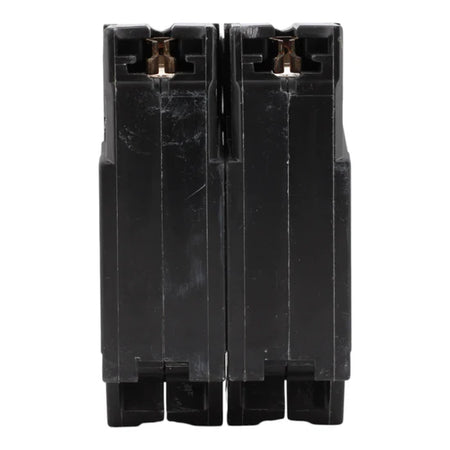

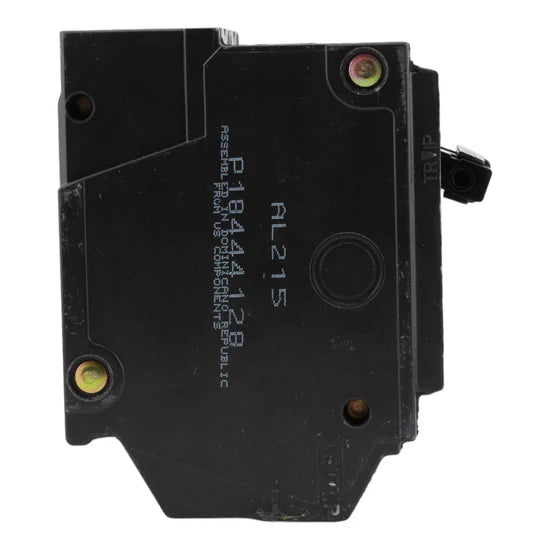

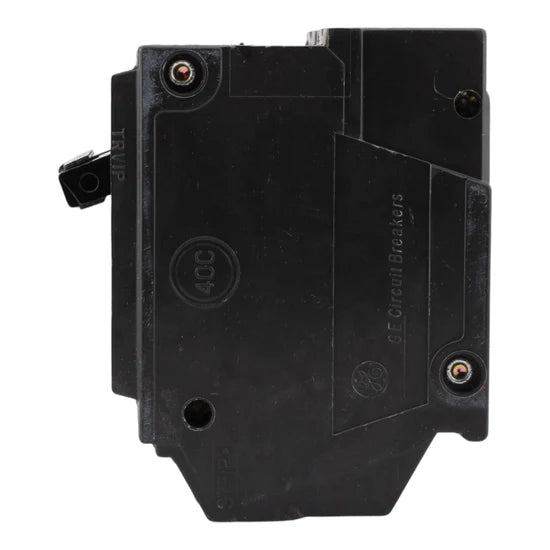

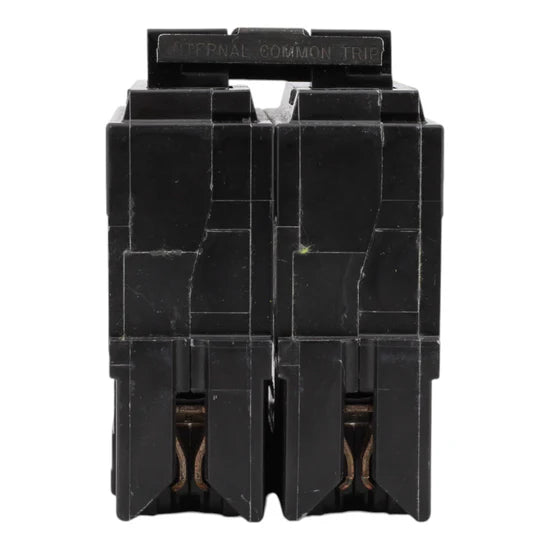

The GE THQL2115 15 Amp 2-pole thermal-magnetic circuit breaker provides reliable overload and short-circuit protection for residential and commercial applications. Designed with the Q-Line plug-in configuration, it ensures fast installation and secure connection in compatible GE load centers. Featuring a non-interchangeable trip, quick-make/quick-break mechanism, and HACR rating, this breaker is UL listed and suitable for use in circuits requiring dependable thermal-magnetic protection.
Voltage and Rating
- Current Rating: 15 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 10 kAIC @ 120VAC and 120/240VAC
- Poles: 2-Pole
Key Specifications
- Breaker Type: Q-Line Miniature Circuit Breaker (Plug-In)
- Trip Function: LI (Long-Time and Instantaneous)
- Long-Time Setting: Fixed
- Instantaneous Setting: Fixed
- Mounting Type: Plug-In
- Continuous Current Rating: Standard
- Suitable for Reverse Feed: Yes
- Special Markings: HACR
Technical Specifications
- Trip Style: Non-Interchangeable
- Mechanism: Quick-make/quick-break thermal-magnetic
- Certifications: UL Listed (File #E11592)
- GSA Compliance: Yes
Product Data
-
- Manufacturer: GE
- Brand: GE
- Model Number: THQL2115
- UPC: 783164012903
- Dimensions: Standard 1-inch width per pole
