Eaton GHB3030 Molded Case Circuit Breaker – 30A, 3 Pole, 600V, 10kAIC @ 480V

Eaton GHB3030 Molded Case Circuit Breaker | 30A, 3-Pole, 480Y/277V

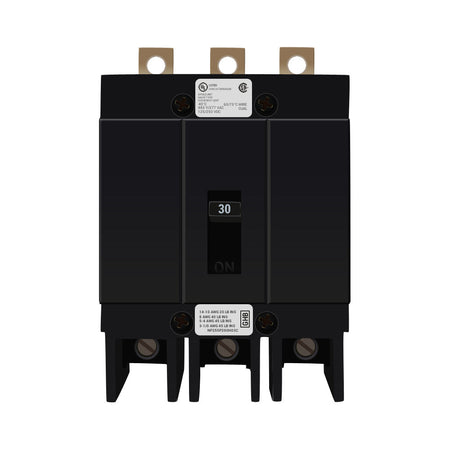

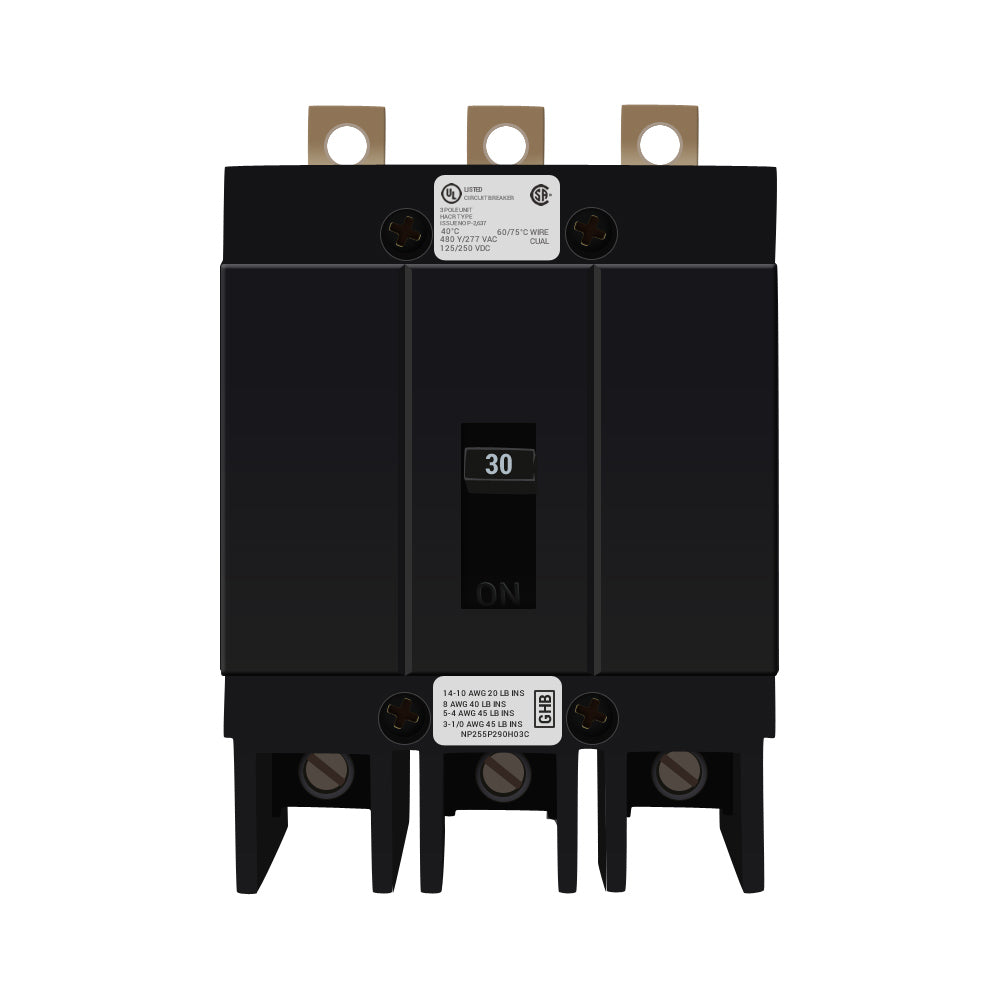

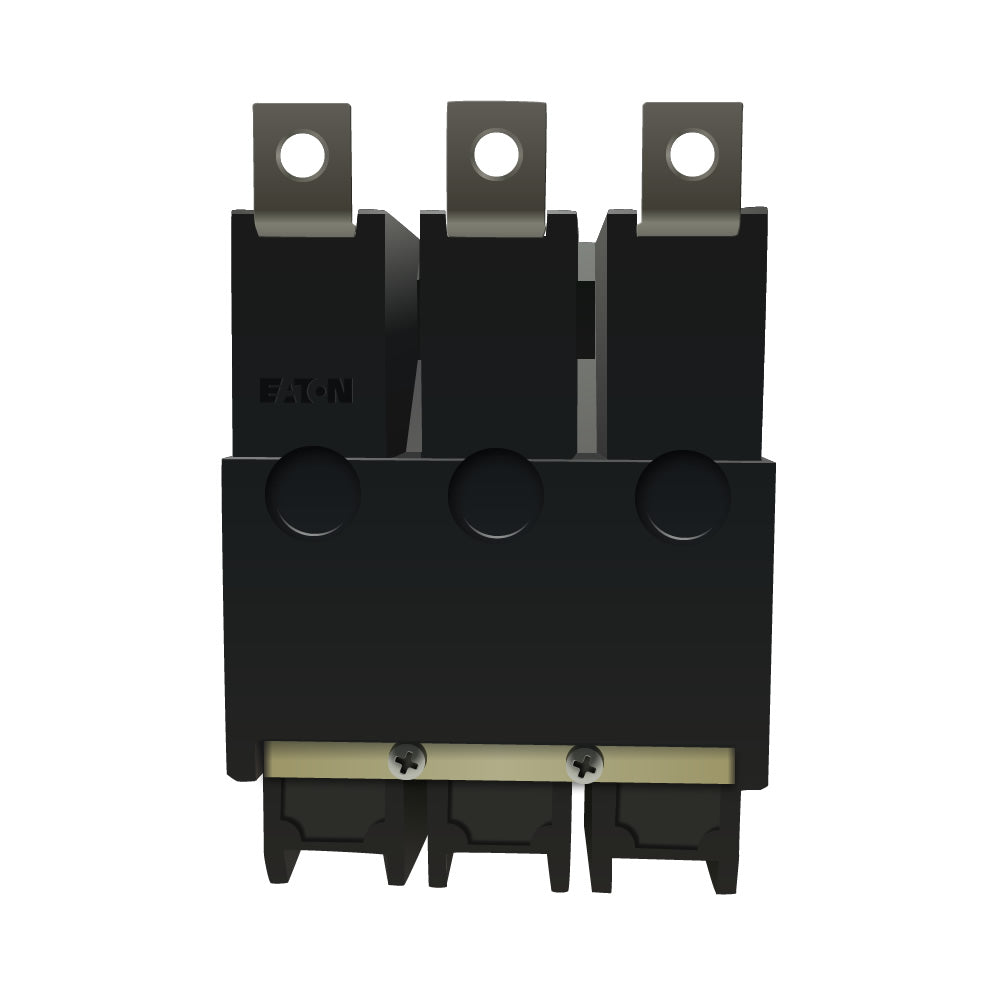

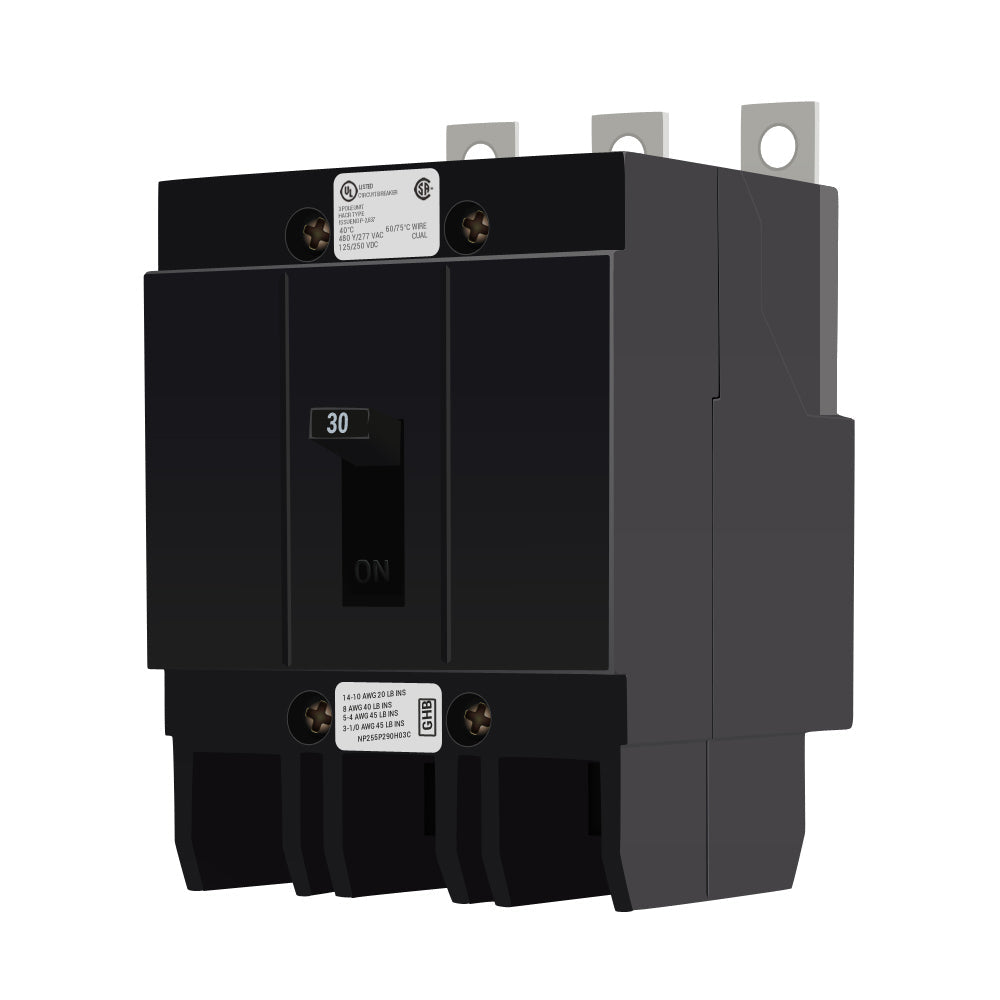

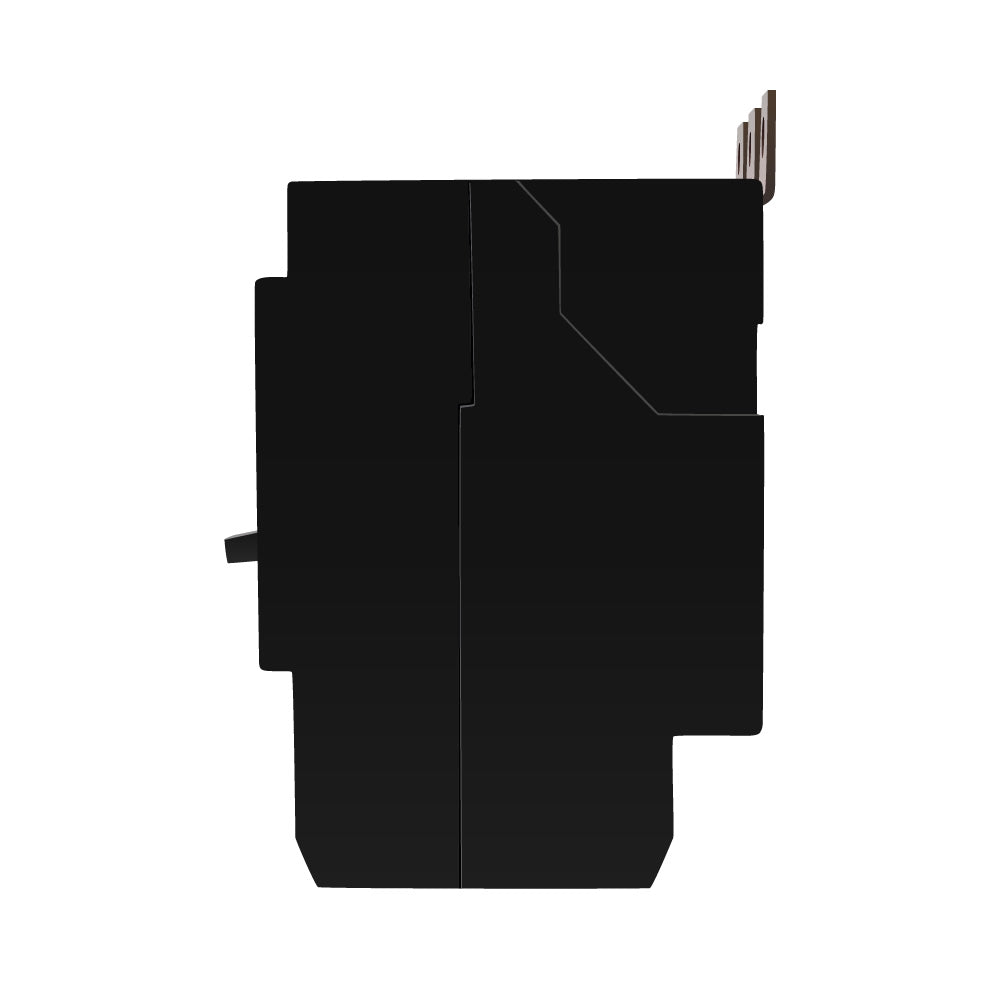

The Eaton GHB3030 is a 3-pole, 30 Amp, 480Y/277 V AC molded case circuit breaker engineered for demanding commercial and industrial environments. This G-Series breaker utilizes a fixed thermal-magnetic trip system to provide reliable protection against electrical overloads and short circuits in power distribution and motor control circuits.

Optimized for use in Eaton Pow-R-Line panelboards, the GHB3030 provides an interrupting capacity of 14 kAIC @ 480Y/277 V AC. Its bolt-on mounting design ensures a high-integrity mechanical and electrical connection, making it a preferred choice for high-duty applications such as HVAC systems and heavy-duty lighting circuits.

Key Features

• Poles: 3

• Amperage: 30 A

• Voltage: 480Y/277 V AC

• Type: Molded Case Circuit Breaker (Type GHB)

• Trip Unit: Fixed Thermal-Magnetic

• Interrupting Capacity: 14 kAIC @ 480Y/277 V AC

• Mounting Style: Bolt-On

• Applications: Suitable for industrial lighting, HVAC, and commercial power distribution

• Protection: Precise protection against short-circuit and thermal overload conditions

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: GHB3030

• UPC Number: 786679911273

• Phase: Three-phase

• Frequency Rating: 50/60 Hz

• Connection: Bolt-On

• Wire Range: #14 - #10 AWG (Cu/Al)

• Approvals: UL Listed, CSA Certified
