GHB3040 - Eaton - Molded Case Circuit Breaker

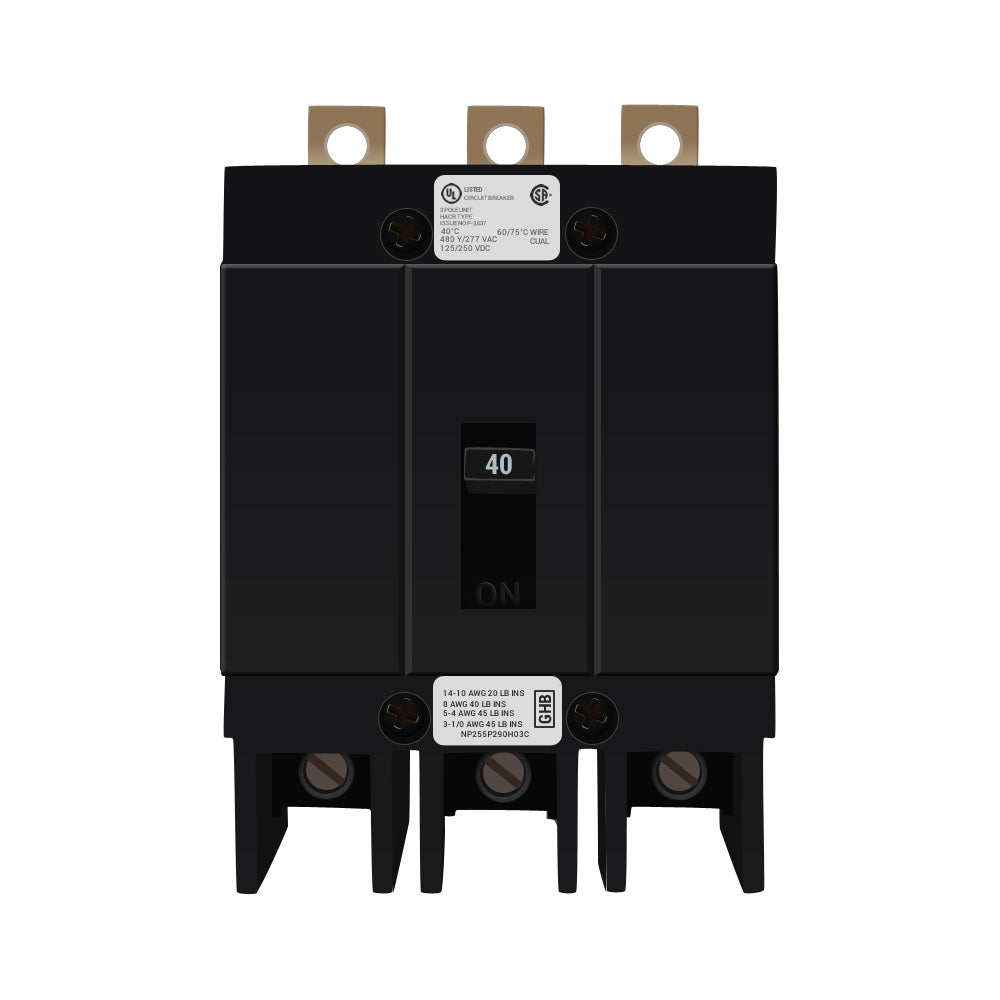

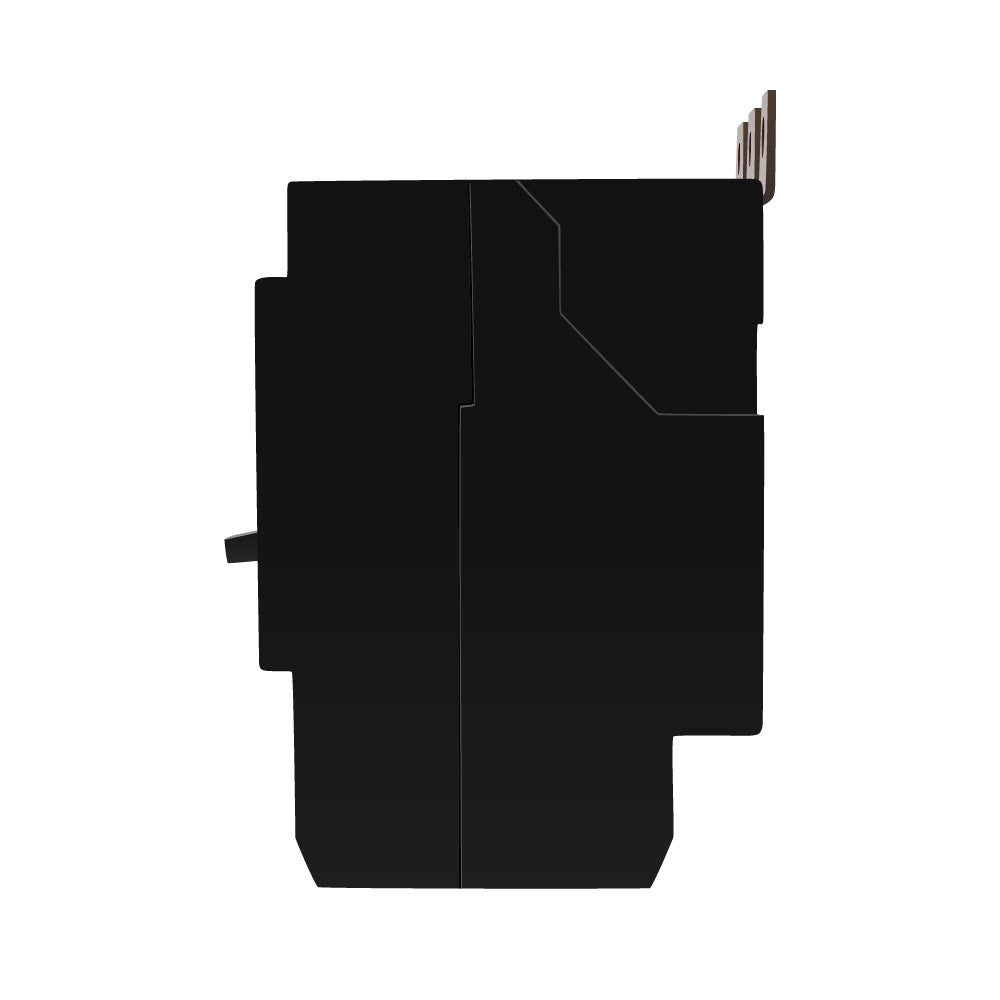

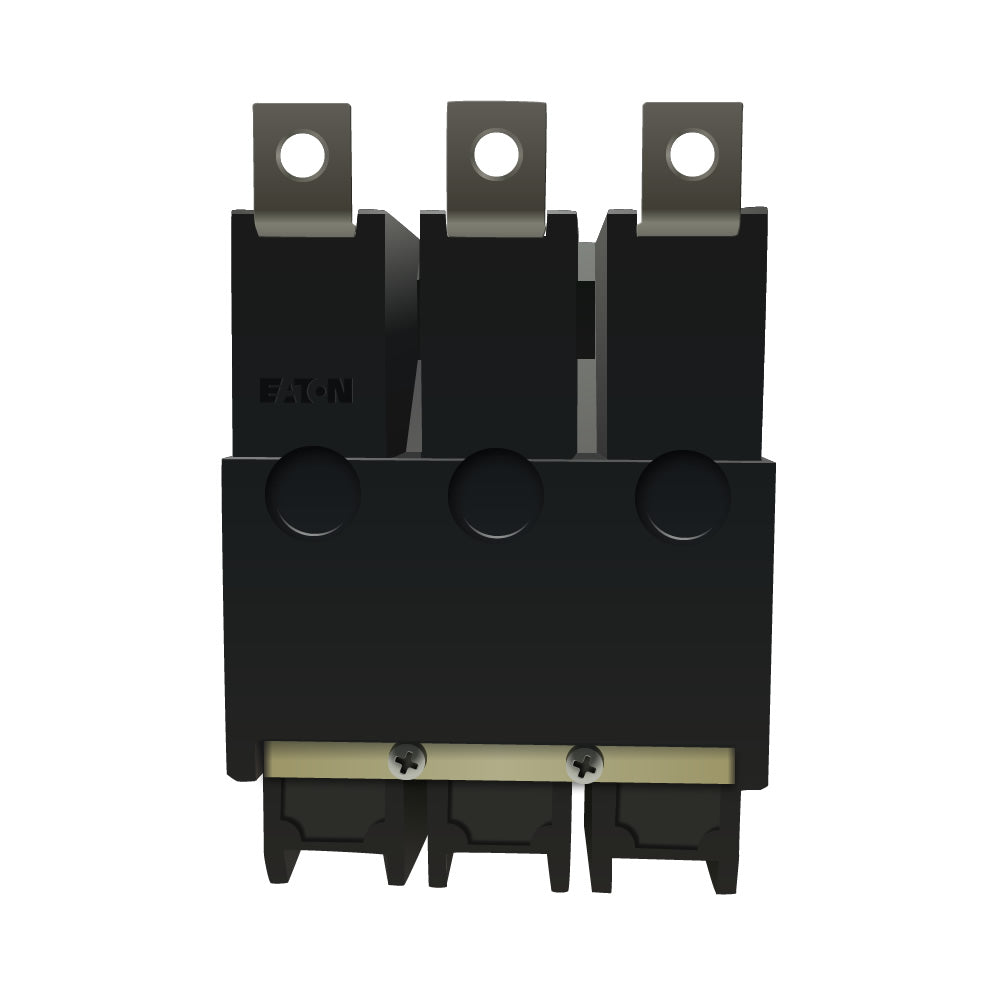

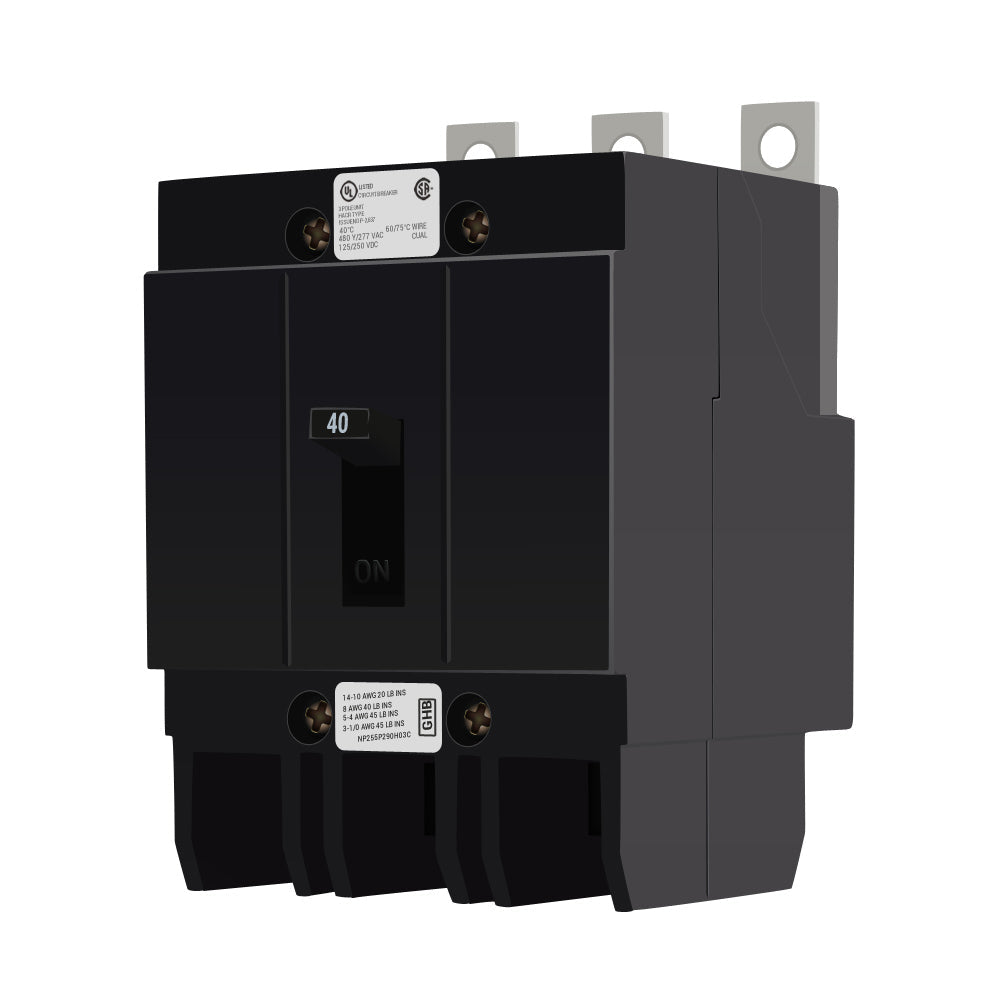

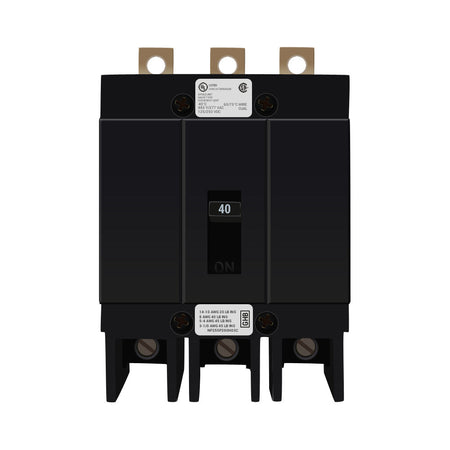

Eaton GHB3040 Molded Case Circuit Breaker | 40A, 3-Pole, 480Y/277V

The Eaton GHB3040 is a 3-pole, 40 Amp, 480Y/277 V AC molded case circuit breaker designed for high-performance commercial and industrial electrical systems. Part of the rugged G-Series (GHB Frame), this breaker utilizes a fixed thermal-magnetic trip mechanism to provide consistent protection against electrical overloads and short circuits in diverse power distribution environments.

Tailored for use in Eaton Pow-R-Line panelboards, the GHB3040 offers an interrupting capacity of 14 kAIC @ 480Y/277 V AC. Its bolt-on mounting style provides a secure, vibration-resistant connection, making it an ideal choice for protecting HVAC equipment, industrial lighting systems, and motor control circuits.

Key Features

• Poles: 3

• Amperage: 40 A

• Voltage: 480Y/277 V AC

• Type: Molded Case Circuit Breaker (Type GHB)

• Trip Unit: Fixed Thermal-Magnetic

• Interrupting Capacity: 14 kAIC @ 480Y/277 V AC

• Mounting Style: Bolt-On

• Applications: Excellent for industrial machinery, HVAC, and large-scale commercial power distribution

• Protection: Reliable thermal-magnetic protection for critical equipment branch circuits

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: GHB3040

• UPC Number: 786679911280

• Phase: Three-phase

• Frequency Rating: 50/60 Hz

• Connection: Bolt-On

• Wire Range: #14 - #10 AWG (Cu/Al)

• Approvals: UL Listed, CSA Certified
