HF361 - Siemens 30 Amp 600V 3-Pole Heavy Duty Fusible Safety Switch, NEMA 1, Enclosed, Class H/J/K/R Fuse, Indoor Mount

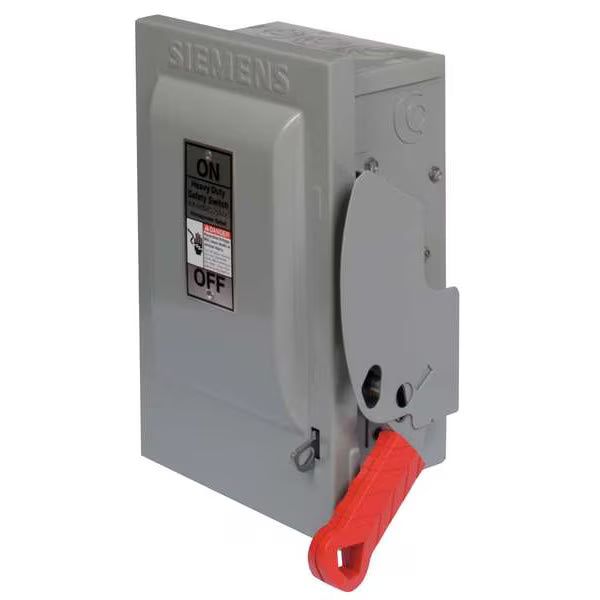

Siemens HF361 Heavy Duty Fusible Safety Switch

The Siemens HF361 is a dependable 30 Amp, 3-pole, 3-wire fusible safety switch built for demanding electrical applications. Designed for heavy-duty performance, this unit ensures safe circuit isolation and protection within a compact, easy-to-mount NEMA 1 indoor enclosure.

This switch supports operation up to 600V AC or 250V DC, making it versatile across a wide range of commercial and industrial systems. It features a visible-blade, single-throw mechanism for clear confirmation of switch position and enhanced operator safety. The HF361 is compatible with Class H, J, K, or R time-delay fuses, providing flexible protection options tailored to your setup.

Technical Details

• Amperage: 30A

• Voltage Rating: 240/480/600V AC, 250V DC

• Poles: 3

• Configuration: 3-wire, non-fused neutral

• Enclosure Type: NEMA 1 (Indoor)

• Interrupting Rating: 10,000 AIC (Class H) | 200,000 AIC (Class R/J)

• Horsepower Rating: Up to 7.5 HP at 600V AC

• Fuse Compatibility: Class H, J, K, or R time-delay fuses

• Certifications: UL Listed (E4776), complies with UL98, UL50, and NEMA KS-1 standards

• Operating Temperature Range: -20°C and above

• Series: Heavy Duty

•

  Specifications

  • Part Number: HF361
  • Manufacturer : Siemens
  • Category : Switch
  • Item Subcategory : Disconnect
  • Family : VBII Series
  • Type : HF
  • Voltage : 600 AC
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@600V
  • Fuse Class : R
  • Configuration : Single
  • Switch Style : Fusible
  • Nema Rating : NEMA 1
  • Compatible Frames : PAF




  Product Data

  • UPC : 783643151000
  • GTIN : 00783643151000
  • Country of Origin : Mexico
  • Dimensions : 9 in x 15 1/2 in
  • Weight : 20 lb
  • Certification : UL 98, UL Listed
