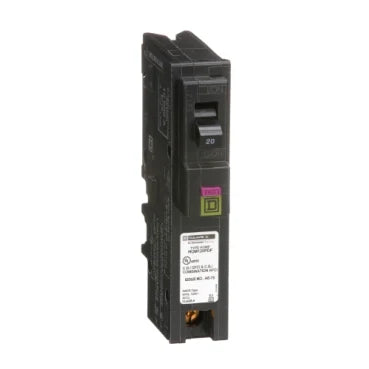

HOM120PDF - Square D Plug In 120V 20A 1 pole circuit breaker 10kAIC@120V
Couldn't load pickup availability
Ask an expert
Description
HOM120PDF
The Square D HOM120PDF is a Molded Case Circuit Breaker. This type HOM circuit breaker is a member of The HOMELINE family. The HOM120PDF is a 1 pole, 120 Volt, 20 amp rated circuit breaker, with an AIC rating of 10kAIC@120V. The HOM120PDF is manufactured by Square D. The HOM120PDF uses a Plug In connection. Includes Thermal Magnetic protection.
Specifications
- Part Number: HOM120PDF
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kAIC@120V
- Connection : Plug In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Clamp Terminal
- MCM Size : Min. Wire Size 14 AWG (Cu/Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al), 10 AWG (Cu)
- Breaker Type : Combination Arc-Fault And Ground Fault
- Protection : Thermal Magnetic
Product Data
- UPC : 785901978343
- GTIN : 00785901978343
- Country of Origin : Mexico
- Dimensions : 1 in x 3.13 in
- Weight : 1
- Standards : UL Listed
- Certification : UL Listed
- Wire Size : 14 - 8 AWG for 1 cable(s) (Aluminium/Copper) 14 - 10 AWG for 2 cable(s) (Copper)
