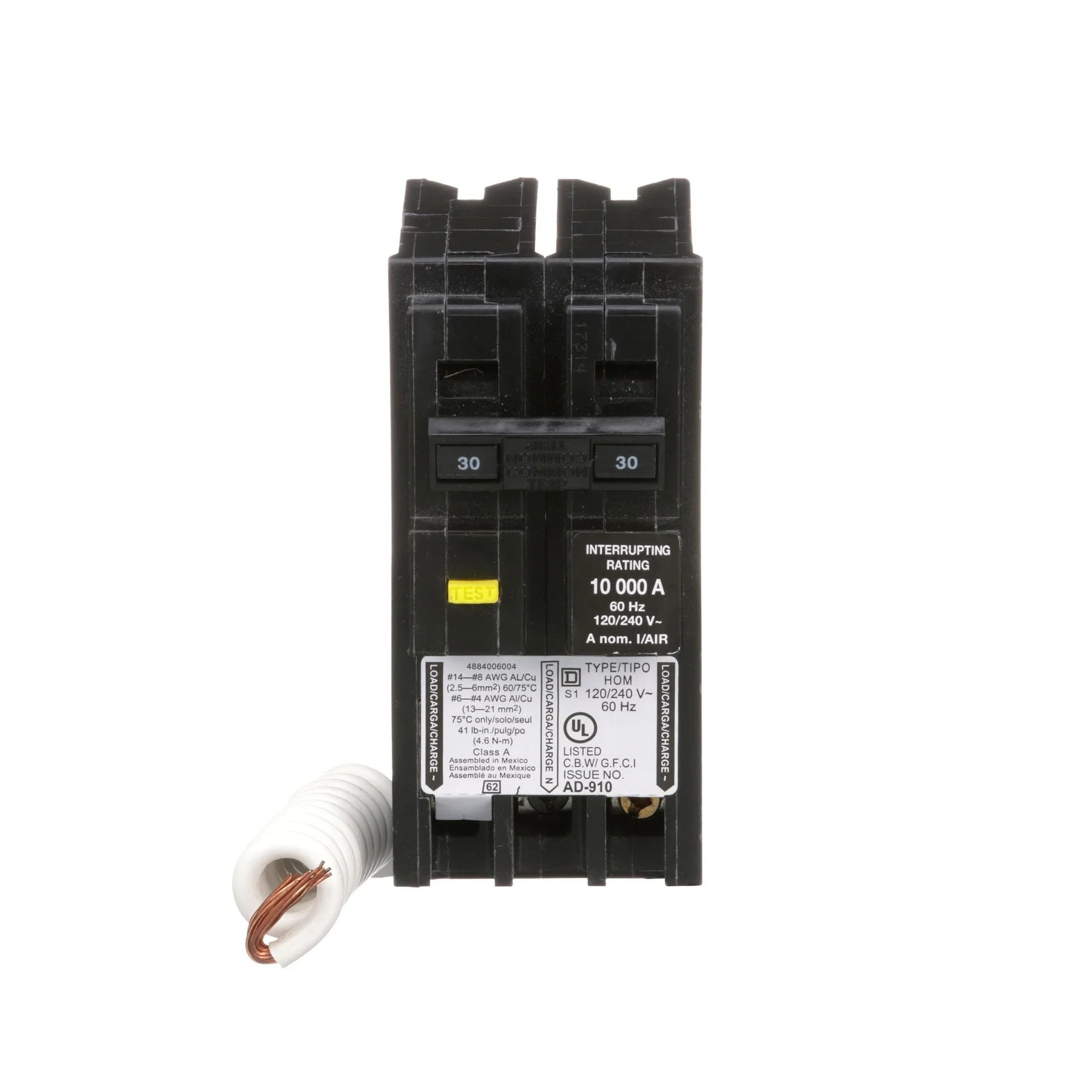

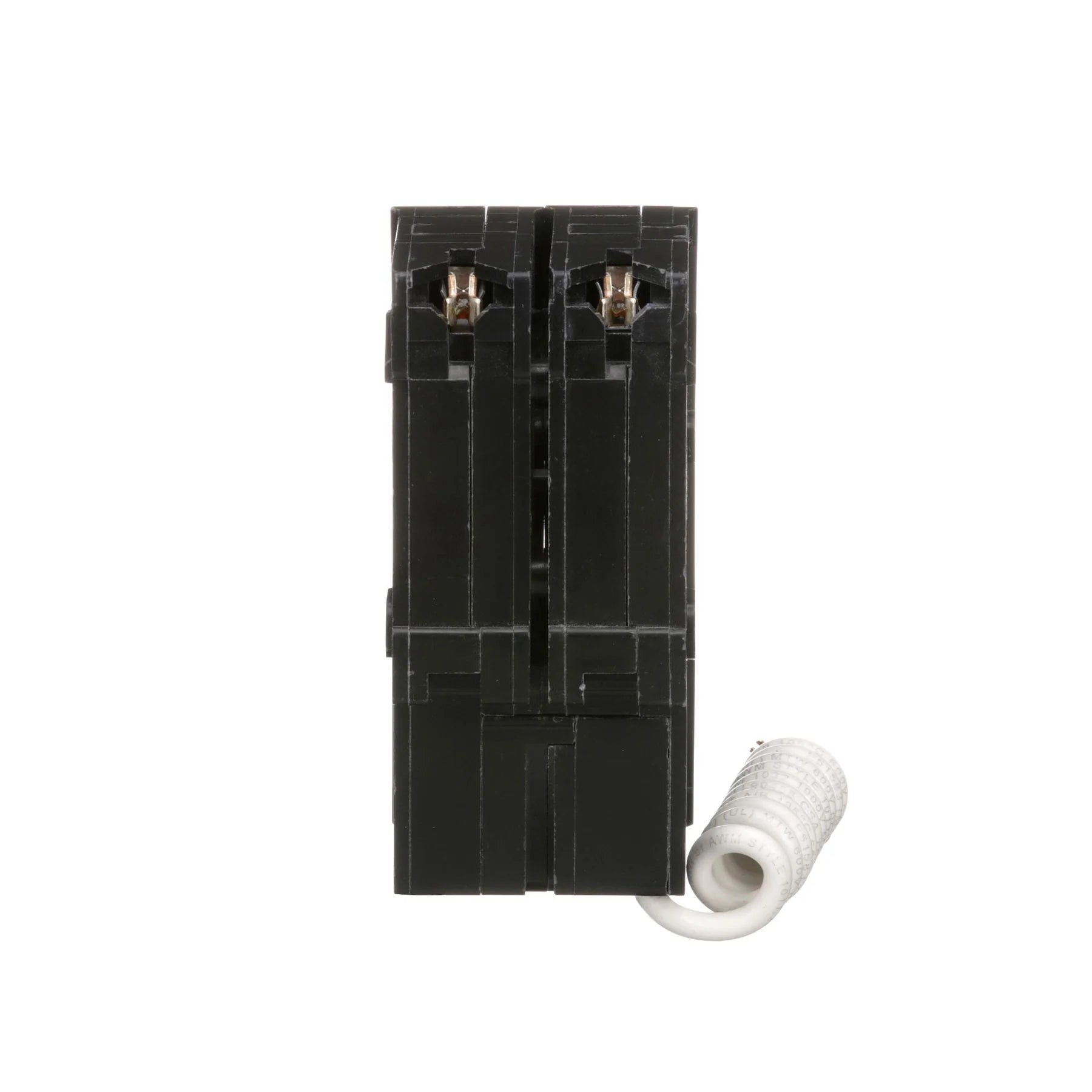

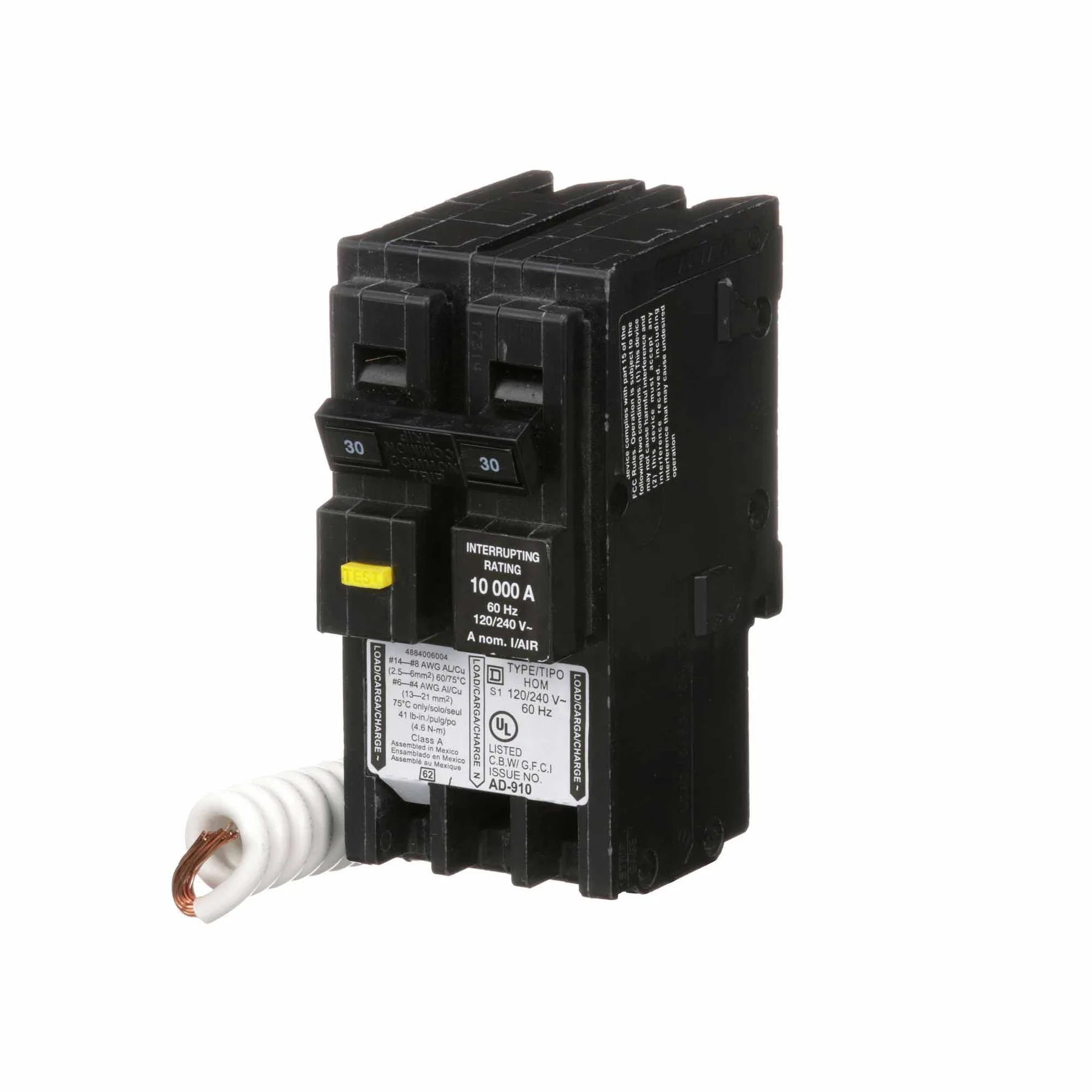

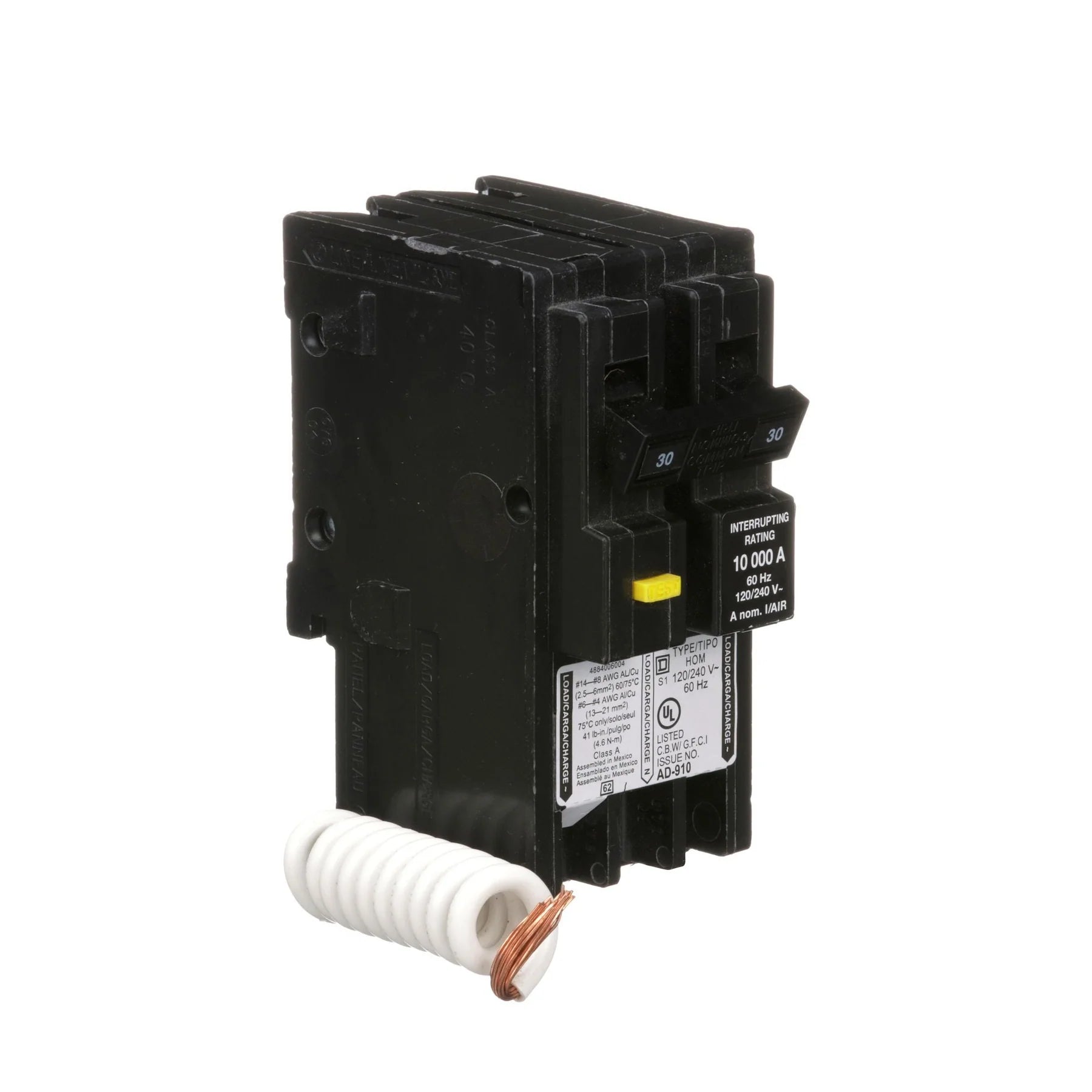

Square D HOM230GFI – 30A 120/240V 2-Pole GFCI Circuit Breaker, Homeline Series, 10kA @120/240V

Description

HOM230GFI

The HOM230GFI is a Square D Homeline 2-pole ground fault circuit interrupter (GFCI) circuit breaker rated for 30 amps at 120/240VAC. This breaker provides Class A GFCI protection designed to protect people from ground fault hazards by automatically disconnecting power when a ground fault is detected.

Engineered for use in Square D Homeline load centers, this breaker is commonly used for hot tubs, spas, outdoor equipment, and other applications requiring 2-pole GFCI protection. It features plug-on mounting for quick installation and reliable performance.

Key Features

• Manufacturer: Square D (Schneider Electric)

• Series: Homeline

• Type: GFCI (Ground Fault Circuit Interrupter)

• Amperage: 30A

• Voltage: 120/240VAC

• Poles: 2-Pole

• Class A ground fault protection (5mA trip sensitivity)

• Plug-on design for Homeline load centers

• Thermal magnetic trip mechanism

• Test button for manual trip verification

• HACR rated

• Suitable for spa, hot tub, and outdoor circuit protection

Technical Specifications

• Catalog Number: HOM230GFI

• Product Type: GFCI Circuit Breaker

• Frame Type: Homeline

• Trip Unit: Thermal Magnetic

• Ground Fault Sensitivity: 5mA (Class A)

• Interrupting Rating: 10kA @120/240VAC

• Mounting Style: Plug-On

• Terminal Connection: Box Lug

• Wire Size Range: #14 – #6 AWG Copper or Aluminum

• Frequency: 60 Hz

• Certifications: UL Listed

Product Data

• Manufacturer: Square D

• Series: Homeline

• Catalog Number: HOM230GFI

• Poles: 2

• Amperage: 30A

• Voltage: 120/240VAC

• Interrupting Rating: 10kA @120/240V

• Condition: (New / New Surplus / Used – Specify)

• GTIN: 785901684644
