SELA36AI0030 - General Electric 30 Amp 600 Volt 3 Pole Molded Case Circuit Breaker Spectra Series

Description

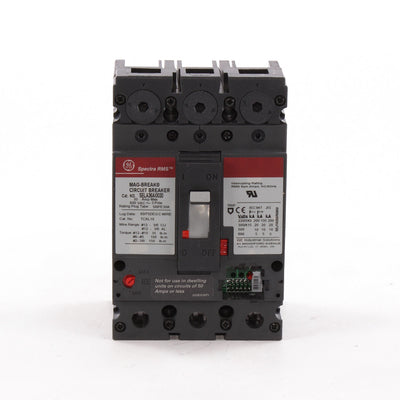

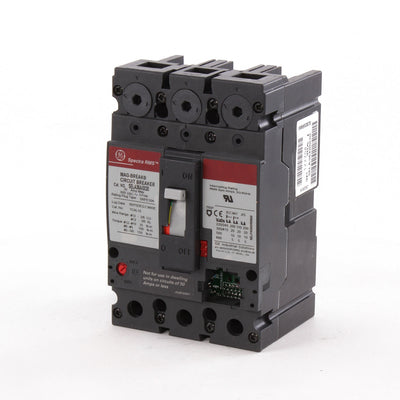

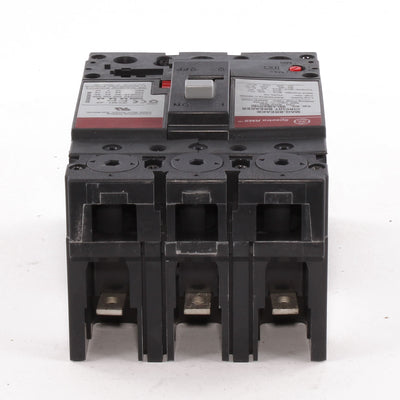

General Electric SELA36AI0030

The GE Spectra Series SELA36AI0030 is a 3-pole, 30 A molded case circuit breaker designed for reliable motor circuit protection in industrial applications. This breaker features a digital solid-state RMS trip unit with MAG-Break magnetic-only protection, providing precise instantaneous protection with high interrupting capacity and current limiting. The bolt-on mounting design ensures secure installation, while a 65 kAIC interrupting rating at 480 V guarantees robust fault protection. UL listed for safety, this breaker is ideal for demanding industrial environments.

Key Specifications

• Manufacturer: General Electric

• Series / Frame: Spectra Series SE-Frame

• Part Number: SELA36AI0030

• Amperage: 30 A

• Voltage: 600 V AC

• Phase: 3

• Poles: 3

• Interrupt Rating: 65 kAIC @ 480 V

• Trip Unit: Digital Solid-State RMS, MAG-Break Magnetic Only

• Mounting Type: Bolt-On

• Continuous Load Rating: Standard

• Functions: Instantaneous (I)

• Protection: Magnetic Only

• Dimensions: 6.31" H × 4.12" W × 3.38" D

• UL Listed: Yes

Product Data

• UPC: 78316422708

• GTIN: 00783164227086

• Dimensions: 7 × 8 × 7 in

• Weight: 7 lbs
