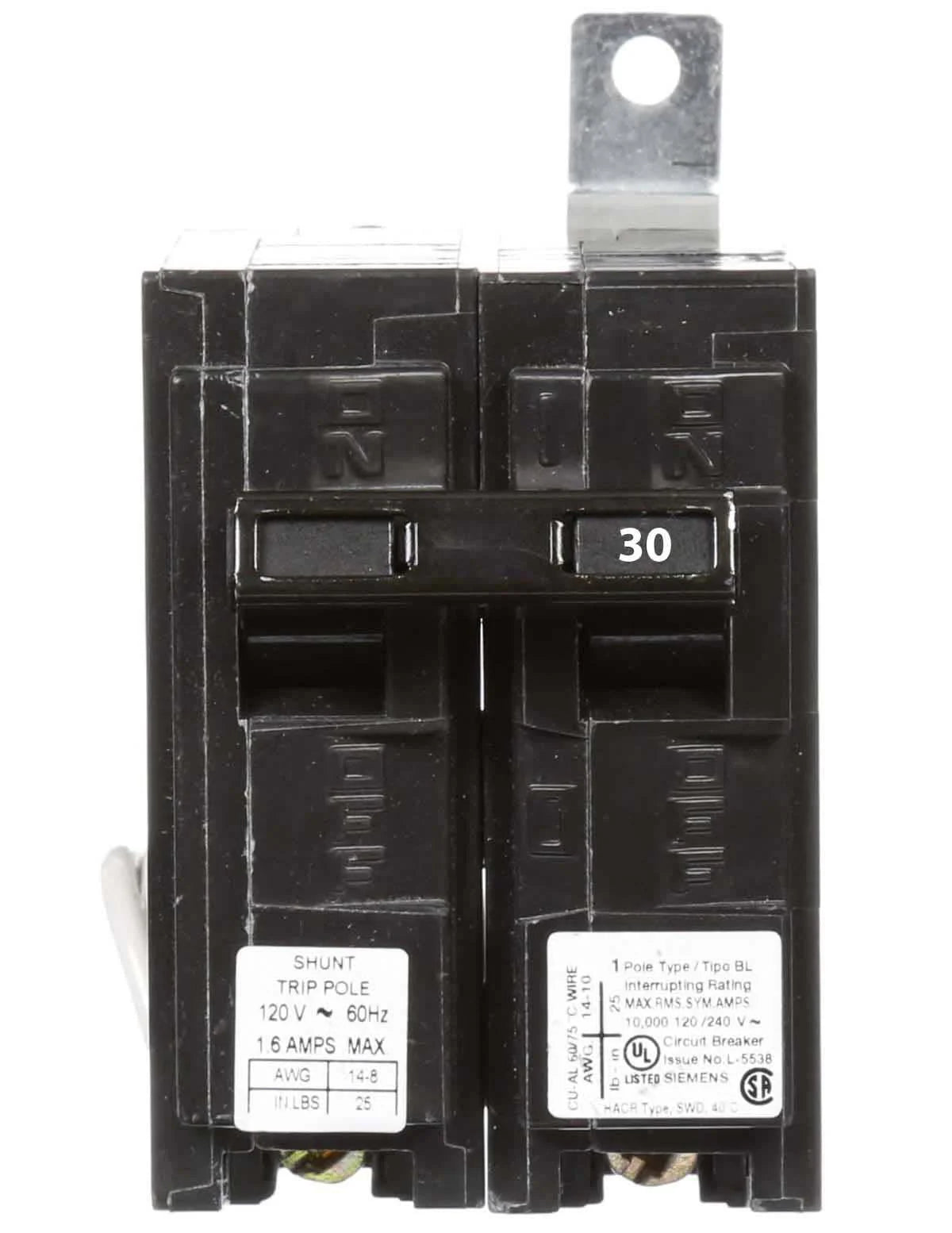

Product Description – Siemens B13000S01

The Siemens B13000S01 is a 30 A, 1‑pole molded case circuit breaker with shunt trip designed for commercial and industrial electrical applications. It provides thermal-magnetic protection and includes a 120 V shunt trip for remote switching or control. This bolt-on breaker is rated for 120 VAC, has a 10 kA interrupting capacity, and is suitable for use in Siemens panelboards.

Key Features

• Catalog Number: B13000S01

• Manufacturer: Siemens

• Series / Type: BL Series Molded Case Circuit Breaker

• Amperage: 30 A

• Voltage Rating: 120 VAC

• Poles: 1-Pole

• Interrupting Capacity: 10 kAIC @ 240 V AC

• Mounting Type: Bolt-On

• Trip Function: Thermal-Magnetic

• Shunt Trip: 120 V AC

• Panel Compatibility: Siemens panelboards

• Certifications: UL, CSA

Technical Specifications

Electrical

• Current Rating: 30 A

• Voltage Rating: 120 V AC

• Poles: 1

• Interrupting Rating: 10 kAIC @ 240 V AC

• Trip Type: Thermal-Magnetic

• Shunt Trip Voltage: 120 V AC

Construction & Connections

• Style: Bolt-On

• Terminal Connection: Load side lugs

• Frame Type: BL Series

• Actuator: Toggle handle

Physical

• Weight: ~2 lb (0.91 kg)

• Dimensions: 3″ (H) × 1.5″ (W) × 3.5″ (D)

• Operating Temperature: ~40 °C rating

Product Data

• UPC: 685991000102

• GTIN: 0685991000102

• Country of Origin: United States

• Standards & Certifications: UL, CSA

• Panel Type: Siemens panelboards

• Frame / Category: Molded Case Circuit Breaker – BL Series
