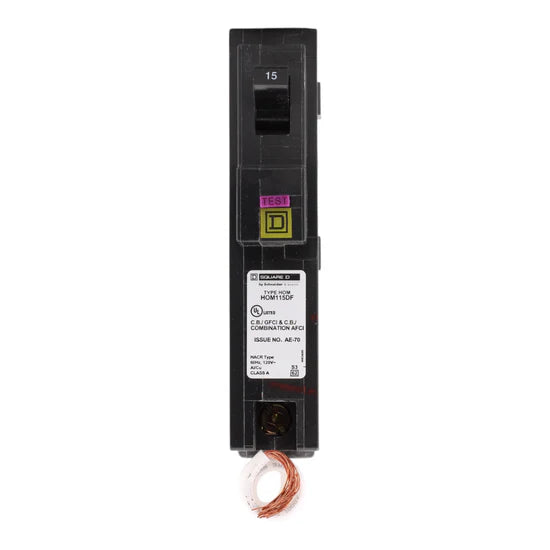

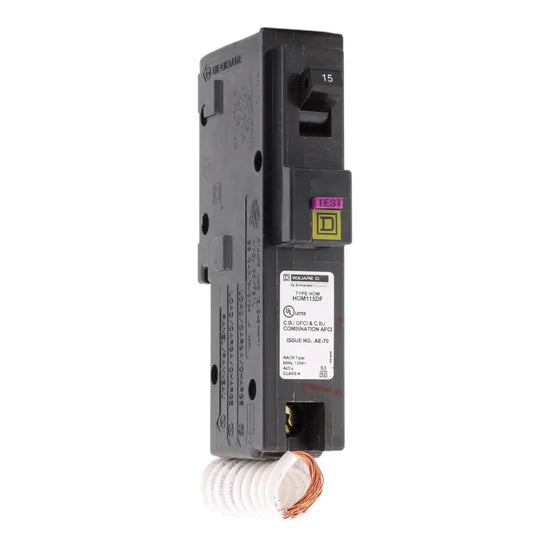

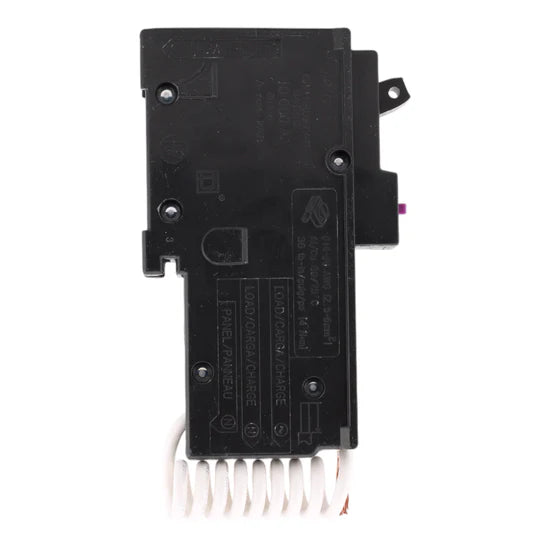

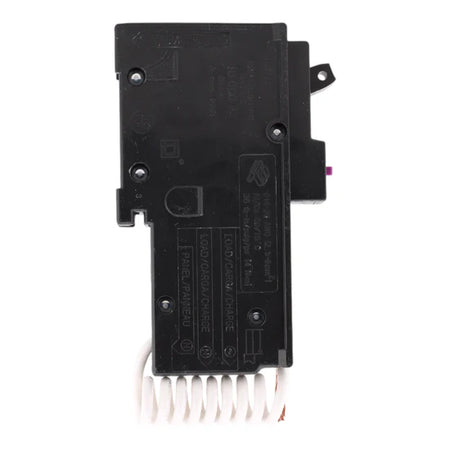

Square D HOM115DF 15A 1 Pole Dual Function Circuit Breaker 120V Plug-On CAFCI/GFCI
Couldn't load pickup availability
Ask an expert
Description
The Square D HOM115DF is a 15 Amp, 1 Pole, 120 Volt dual function circuit breaker designed for residential electrical protection applications. Part of the trusted Square D Homeline series, this breaker combines both Combination Arc Fault (CAFCI) and Ground Fault (GFCI) protection into one compact device for enhanced circuit safety.
Designed with a plug-on mounting style, the HOM115DF installs easily into compatible Square D Homeline load centers and provides dependable protection against overloads, short circuits, arc faults, and ground faults. This breaker is commonly used in kitchens, bathrooms, laundry rooms, bedrooms, and other residential branch circuits where dual-function protection is required by code.
Key Features
- Catalog Number: HOM115DF
- Amperage: 15 Amp
- Poles: 1 Pole
- Voltage Rating: 120VAC
- Dual Function Protection (CAFCI & GFCI)
- Plug-On Mounting Design
- Homeline Series
- Thermal Magnetic Trip Unit
- LED Trip Indicator
- Combination Arc Fault Protection
- Ground Fault Protection
- UL Listed
- Ideal for Residential Applications
Interrupting Rating
- 10kAIC @ 120VAC
Technical Specifications
- Brand: Square D
- Series: Homeline
- Type: Dual Function Circuit Breaker
- Phase: Single Phase
- Connection Type: Plug-On
- Frequency: 60 Hz
- Trip Function: Thermal Magnetic
- Mounting Style: Plug-On
- Protection Type: CAFCI / GFCI
- Application: Residential Load Centers & Branch Circuits
Product Data
- Manufacturer: Square D by Schneider Electric
- Catalog Number: HOM115DF
- UPC: 785901692160
- Amperage: 15A
- Voltage: 120VAC
- Poles: 1
- Interrupting Rating: 10kAIC @ 120V
- Condition: New / Reconditioned Available
- Vendor My Circuit Breakers
