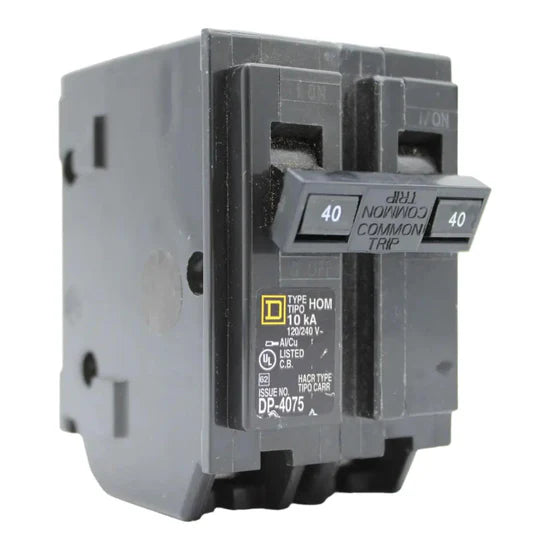

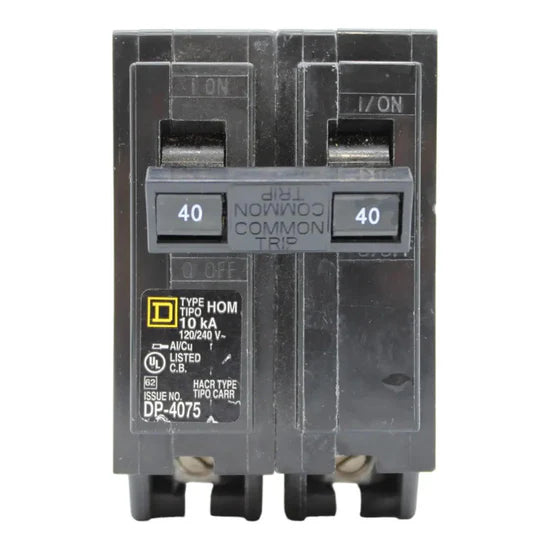

Square D HOM240 40A 2-Pole Standard Circuit Breaker – Plug-In – 120/240V

The Square D HOM240 is a 40-amp, 2-pole standard circuit breaker designed to provide reliable overcurrent and short-circuit protection in Square D Homeline load centers. Rated for 120/240V AC with a 10kA interrupt capacity, this plug-in breaker is ideal for residential and commercial branch circuit applications. Its box lug terminals provide secure connections for copper or aluminum wiring, and the plug-in mounting design ensures fast, dependable installation. UL listed and HACR rated, the HOM240 delivers consistent performance and trusted circuit protection.

Voltage and Rating

• Current Rating: 40 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Standard
• Number of Poles: 2-Pole
• Mounting Type: Plug-In
• Series: Homeline
• Application: Residential and commercial branch circuit protection
• Compatible Load Centers: Square D Homeline load centers

Technical Specifications

• Wire Size Range: (1) #8–2 AWG (Copper/Aluminum)
• Terminal Tightening Torque: 40.7 lb-in

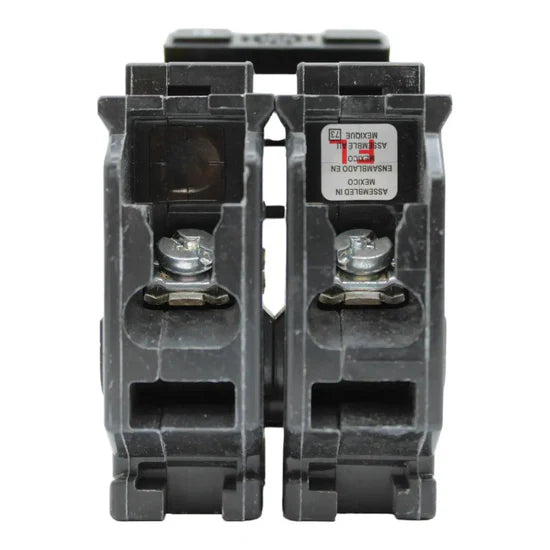

• Connection Type: Box lugs
• Operating Mechanism: Thermal-magnetic trip unit
• Interrupt Rating: 10 kAIC
• Certifications: UL Listed, HACR Rated

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: HOM240
• UPC: 785901065302

• Dimensions:

  • Height: 3.13 in
  • Width: 2.0 in
  • Depth: 2.98 in

• Weight: 0.701 lbs
