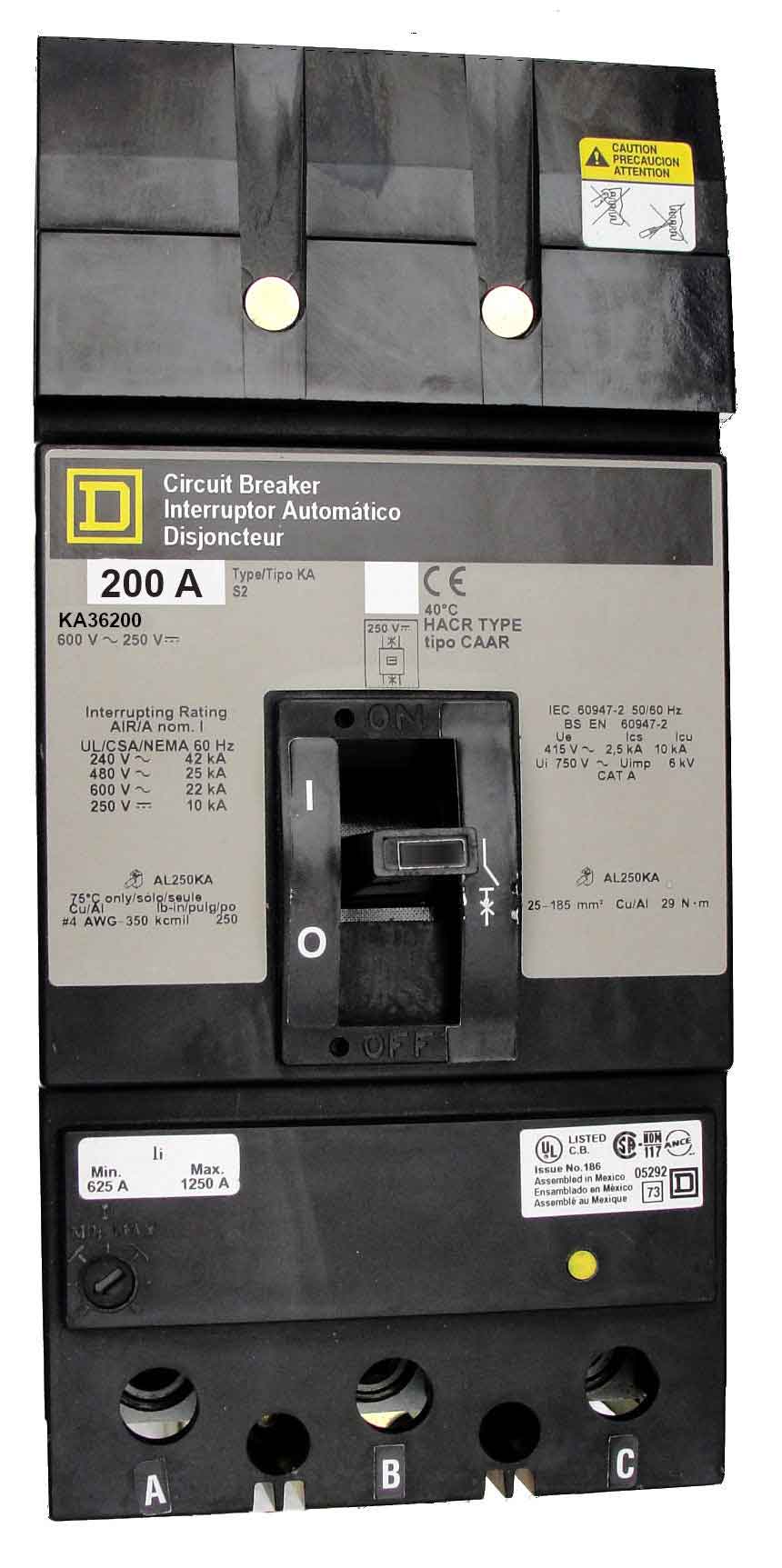

Square D KA36200 – 200A 600VAC 3-Pole I-Line Molded Case Circuit Breaker, KA Frame, Thermal Magnetic, 42kA @240V / 25kA @480V / 22kA @600V

Description

KA36200

KA36200 is a Square D KA-frame molded case circuit breaker rated for 200 amps and 600 VAC. This 3-pole breaker uses an I-Line style plug-on connection for quick and secure installation in Square D I-Line panelboards and switchboards.

It features a thermal magnetic trip unit with long-time and instantaneous (LI) protection for reliable defense against overloads and short circuits. Interrupting capacity varies by system voltage, making it suitable for a wide range of commercial and industrial applications. Designed for 3-phase systems, the KA36200 is rated for continuous operation at 40 °C ambient temperature and meets UL, CSA, and CE certifications.

Interrupting Ratings

• 42 kA @ 240 VAC

• 25 kA @ 480 VAC

• 22 kA @ 600 VAC

Key Specifications

• Manufacturer: Square D

• Part Number: KA36200

• Amperage: 200 A

• Voltage Rating: 600 VAC

• Poles: 3

• Frame Type: KA

• Mounting Type: I-Line Style Plug-On

• Trip Unit: Thermal Magnetic

• Trip Functions: LI – Long-Time and Instantaneous

• Phase: 3

• Ambient Temperature Rating: 40 °C

• Certifications: UL, CSA, CE

Specifications

• Part Number: KA36200

• Manufacturer: Square D

• Category: Circuit Breaker

• Item Subcategory: Molded Case

• Family: I-Line

• Type: KA

• Voltage: 600 VAC

• Amperage: 200 A

• Phase: 3

• Poles: 3

• AIC Rating: 42kA @ 240 V / 25kA @ 480 V / 22kA @ 600 V

• Connection: I-Line Style Plug-In

• Functions: LI – Long-Time and Instantaneous

• Frame Size: K Frame

• Temperature Rating: -13 °F to 158 °F (-25 °C to 70 °C)

• Protection: Thermal Magnetic

Product Data

• UPC: 785901425113

• GTIN: 00785901425131

• Weight: 13 lb
