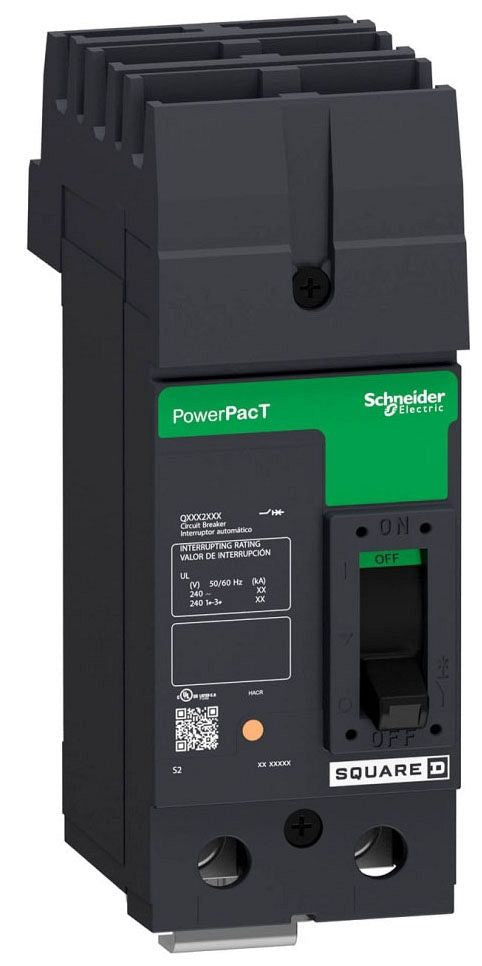

Square D QDA222001 I-Line Circuit Breaker – 200A – 2 Pole – 25kAIC – Thermal Magnetic – Q-Frame – 240VAC – I-Line Mount

The Square D QDA222001 is a molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. Built on the Q-Frame platform, it provides thermal magnetic overcurrent protection with long-time and instantaneous trip functions. It is intended for use in Square D I-Line panelboards and switchboards, offering plug-on installation and high fault interruption capability.

Electrical Ratings

• Current Rating: 200 A
• Voltage Rating: 240 VAC at 50/60 Hz
• Phase: 1 Phase (2-pole configuration)
• Interrupting Rating: 25 kA at 240 VAC (UL/CSA), 10 kA at 240 VAC (IEC)
• Application: Power distribution systems (commercial and industrial)

Protection and Function

• Device Type: Molded case circuit breaker
• Trip Technology: Thermal magnetic
• Trip Function: Long-time and instantaneous (LI)
• Trip Setting Range: 1200 to 2400 A
• Trip Adjustability: Fixed thermal and fixed magnetic
• Safety Features:
  • Visual trip indication
  • Trip-free mechanism
  • Common trip operation
  • Quick-make / quick-break switching

Configuration and Function

• Series: QDA
• Model: QDA222001
• Frame Type: Q-Frame
• Mounting Style: Plug-on I-Line connection
• Connection Type: AB phase connection
• Used With: Square D I-Line panelboards and switchboards
• Sub-category: Panelboard circuit breaker
• Application: Electrical distribution protection

Mechanical and Physical Characteristics

• Compact industrial molded case design
• Wire Range: 4 AWG to 300 kcmil (Aluminum/Copper)
• Terminal Type: Lug connection
• Durable construction for heavy-duty electrical systems
• Designed for quick installation in I-Line systems
• Standard Q-frame physical dimensions for panelboard compatibility

Standards and Certifications

• UL Listed
• CSA Certified
• IEC compliant
• NOM certified
• RoHS compliant
• HACR rated
