Square D

Square D QOB120VH 20A 1-Pole Standard Bolt-On Circuit Breaker – Bolt-On – 120/240V AC

In stock
SKU: QOB120VH-RECON GTIN/UPC: 785901371731
$10.63
SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

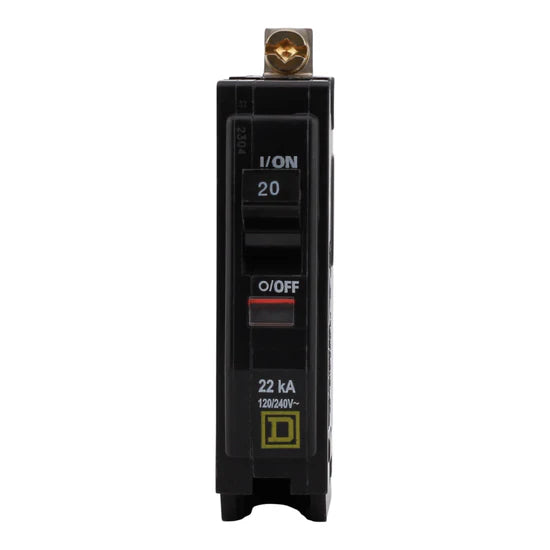

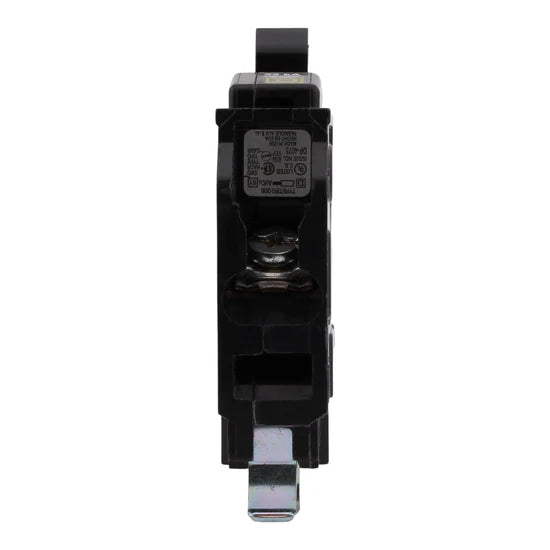

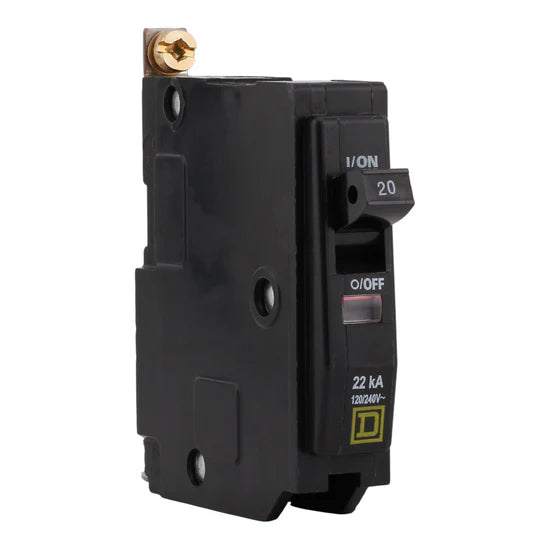

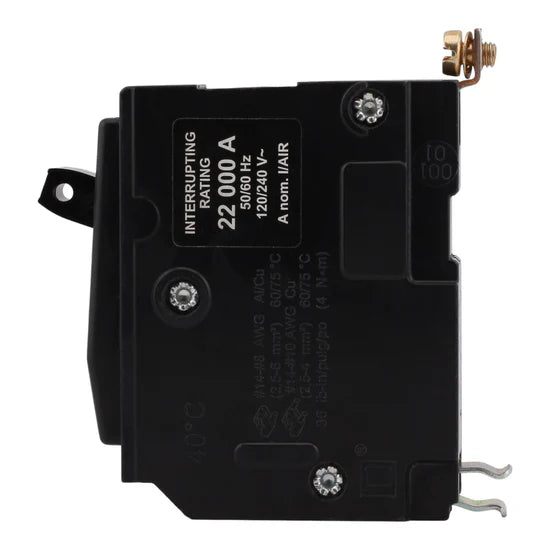

The Square D QOB120VH is a 20 Amp, 1-pole standard miniature circuit breaker designed for 120/240V AC circuits in QO loadcenters. Featuring a bolt-on mounting with pressure plate terminals, it delivers reliable overcurrent protection with a 22kA interrupt rating. The breaker’s thermal-magnetic trip mechanism and VisiTrip indication provide enhanced safety, quick troubleshooting, and durable performance for residential and commercial applications.

Electrical Ratings:

  • Amperage: 20 Amps
  • Voltage: 120/240V AC
  • Interrupt Rating: 22 kAIC
  • Frequency: 50/60 Hz

Key Specifications:

  • Breaker Type: Standard Miniature Circuit Breaker
  • Poles: 1-Pole
  • Product Range: QO
  • Mounting Mode: Bolt-On
  • Terminal Type: Pressure Plate
  • Application: Residential and commercial overcurrent protection
  • Special Rating: HACR Rated

Technical Specifications:

  • Wire Size: (1) #14–8 AWG Cu/Al
  • Tightening Torque: 40.7 lb-in
  • Dimensions: 3.0" H × 0.7" W × 2.9" D
  • Weight: 0.300 lbs
  • Certifications: UL Listed, CSA Certified, HACR Rated

Product Data:

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: QOB120VH
  • UPC: 785901371731
  • Type Circuit Breakers
  • Vendor Square D
  • Brand Square D
