TG4323R – General Electric 100A 240V 3-Pole Fusible Safety Switch NEMA 3R

Description

TG4323R

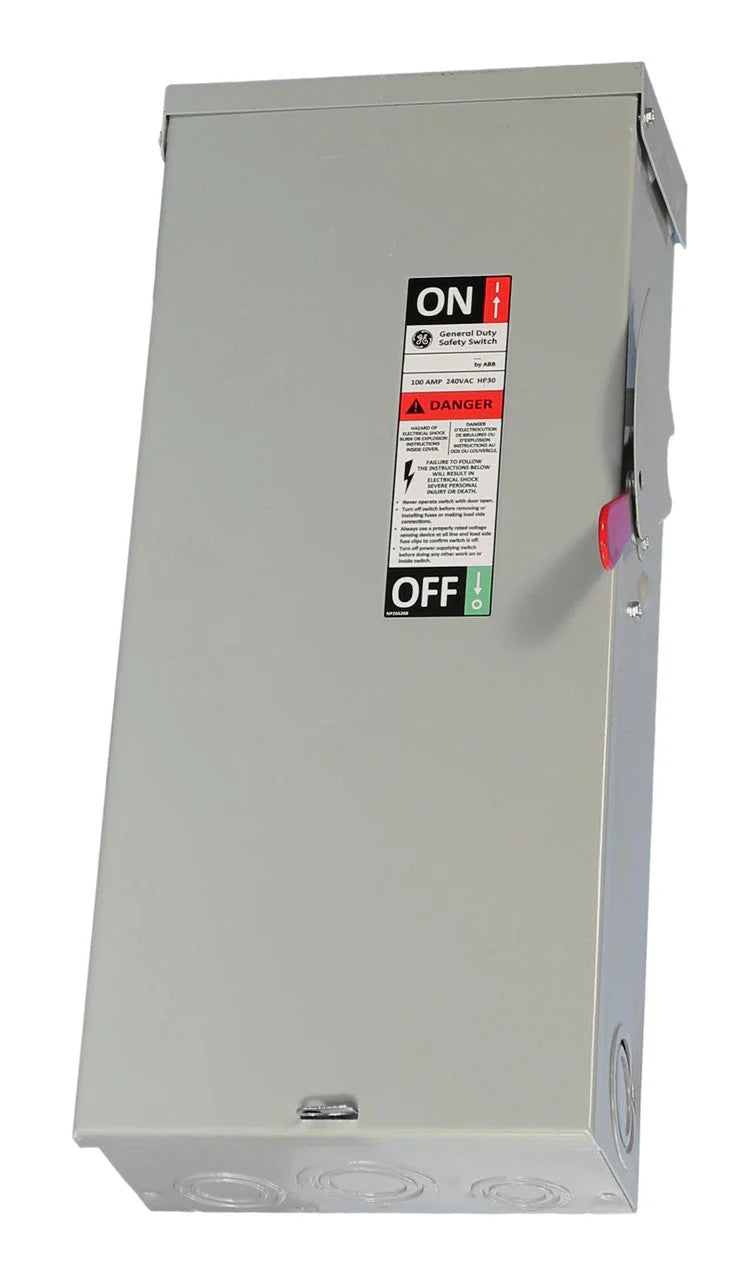

The TG4323R is a General Electric fusible safety switch designed for general duty residential and light commercial electrical distribution applications. It features a NEMA 3R rain-tight steel enclosure for outdoor use and is rated at 100 amps with a 240 VAC voltage rating. This three-pole, four-wire switch accepts Class H/K/J/R fuses and provides a quick-make/quick-break mechanism with positive contact indication. It offers horsepower ratings per NEC standards and time-delay conditions for motor loads.

Key Specifications

• Amperage: 100 A

• Voltage Rating: 240 V AC

• Poles: 3

• Wires: 4

• Fusible: Yes, Class H/K/J/R fuses

• Enclosure: Painted steel, NEMA 3R (outdoor)

• Interrupt Rating: 100 kA @ 240 V

• Mounting Type: Surface mount

• Series/Frame: TG Series

• Certifications: UL 98, CSA C22.2 No. 4‑04, NEMA KS1, Seismic certified

• Application: Residential, light commercial electrical distribution

• Horsepower Ratings:

  • 7.5 HP @ 240 V AC, NEC standard

  • 15 HP @ 240 V AC, NEC standard (3‑phase)

  • 15 HP @ 240 V AC, time delay

  • 30 HP @ 240 V AC, time delay (3‑phase)

  • 20 HP @ 250 V DC

Specifications

• Part Number: TG4323R

• Manufacturer: General Electric

• Category: Switch

• Item Subcategory: Safety Switch / Disconnect

• Family: TG Series

• Type: Fusible General Duty

• Voltage: 240 AC

• Amperage: 100

• Phase: 1 / 3 (Motor horsepower ratings apply per NEC)

• Poles: 3

• AIC Rating: 100 kA @ 240 V

• Fuse Class: H / K / J / R

• Configuration: Single

• Switch Style: Fusible

• NEMA Rating: NEMA 3R

• Compatible Frames: Standard TG Series

Product Data

• UPC: 783164008661

• GTIN: 00783164008661

• Country of Origin: Not specified

• Dimensions: 9.3 in W x 5 in D x 21.05 in H

• Weight: ~17 lbs

• Certifications: UL 98, CSA C22.2 No. 4‑04, cUL Listed, NEMA KS1, Seismic certified
