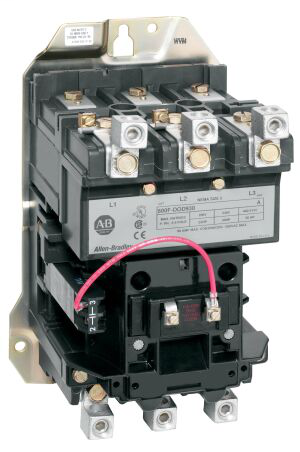

500‑FOD930 – Allen‑Bradley 270A 600V 3‑Pole NEMA 5 Motor Contactor 110/120V Coil

Description

500‑FOD930
The 500‑FOD930 is an Allen‑Bradley NEMA Size 5 motor contactor engineered for industrial three‑phase motor control applications. It is rated for continuous service at 270 amps and features an open‑style construction with a three‑pole configuration and one normally open auxiliary contact. The contactor is designed to operate with a 110/120 V AC coil at 50/60 Hz and supports motor voltages up to 600 V AC, offering reliable control for heavy electrical loads.

Key Specifications

• Amperage: 270 A

• Voltage Rating: 600 V AC

• Maximum Voltage: 600 V AC

• Poles: 3 Power Poles

• Coil Voltage: 110/120 V AC 50/60 Hz

• Auxiliary Contacts: 1 Normally Open

• Enclosure: Open Type

• NEMA Size: Size 5

• Motor HP Ratings:

  • 200 V AC – 75 HP

  • 230 V AC – 100 HP

  • 460 V AC – 200 HP

• Functionality: Non‑Reversing

• Application: Motor control, industrial power systems

Specifications

• Part Number: 500‑FOD930

• Manufacturer: Allen‑Bradley

• Category: Motor Control

• Item Subcategory: Contactor

• Family: Bulletin 500

• Type: 500‑F

• Voltage: 600 AC

• Amperage: 270

• Phase: 3

• Poles: 3

• Coil Voltage: 110/120 V AC

• Auxiliary Contact(s): 1 NO

• Configuration: Single

• Contactor Style: Feed Through / NEMA Contactor

• NEMA Rating: NEMA 5

• Compatible Frames: JD
