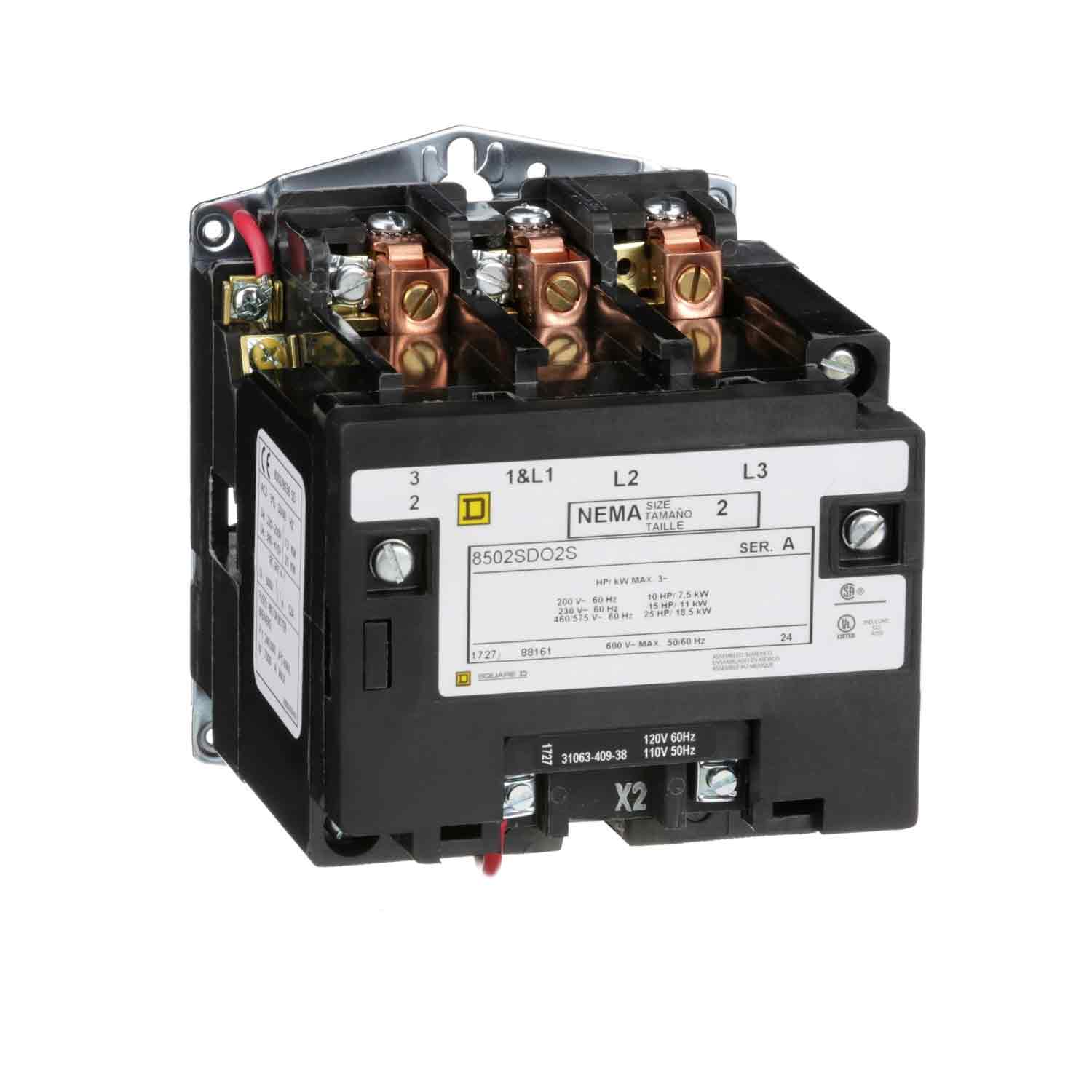

Square D 8502SDO2V02S Magnetic Contactor – 45A – 3-Pole / 3-Phase – 600V – NEMA Size 2 – Open Type – Class 8502

The Square D 8502SDO2V02S is a 45A, 3-pole, 3-phase full-voltage magnetic contactor from the Square D Class 8502 family. It is a Type SDO contactor designed for compatible motor-control and electrical power-switching applications.

The contactor is rated for 600V and features a 120V AC, 60 Hz / 110V AC, 50 Hz coil. It is configured as a NEMA Size 2 complete contactor in a NEMA open-type enclosure.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Magnetic Contactor
• Product Family: Class 8502
• Class: 8502
• Type: SDO
• Catalog No.: 8502SDO2V02S
• Current Rating: 45A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Contactor Type: Full-Voltage Contactor
• Coil Voltage: 120V AC @ 60 Hz / 110V AC @ 50 Hz
• NEMA Size: Size 2
• Enclosure Type: NEMA Open Type
• Configuration: Complete Contactor
• Application: Motor Control and Electrical Power Switching
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): 8502SDO2V02S
• Catalog Number: 8502SDO2V02S
• Model: 8502SDO2V02S
• Product Family: Square D Class 8502 Magnetic Contactors
• Class: 8502
• Type: SDO
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Magnetic Contactor
• Configuration: 3-Pole, 45A
• NEMA Size: Size 2
• UPC:785901881612

Compatibility:

Designed for use with compatible Square D Class 8502 motor-control systems requiring a 3-pole, 45A full-voltage magnetic contactor. The 8502SDO2V02S is configured as a NEMA Size 2 complete contactor with a NEMA open-type enclosure.

The contactor is rated for 600V and uses a 120V AC coil at 60 Hz or 110V AC coil at 50 Hz. Always verify the specific motor or load application, supply voltage, coil voltage and frequency, contactor configuration, NEMA size, control circuit requirements, and installation specifications before installation.

Certifications:

• Square D Class 8502
• Type SDO
• 45A Rated
• 3-Pole / 3-Phase
• 600V Rated
• Full-Voltage Contactor
• NEMA Size 2
• NEMA Open Type
• Complete Contactor
• 120V AC Coil @ 60 Hz
• 110V AC Coil @ 50 Hz
• Magnetic Contactor
