Square D 8536SBG2V03 18 Amp NEMA Size 0 Magnetic Motor Starter – 3 Pole – 600 V – 220/240 V Coil – Type S

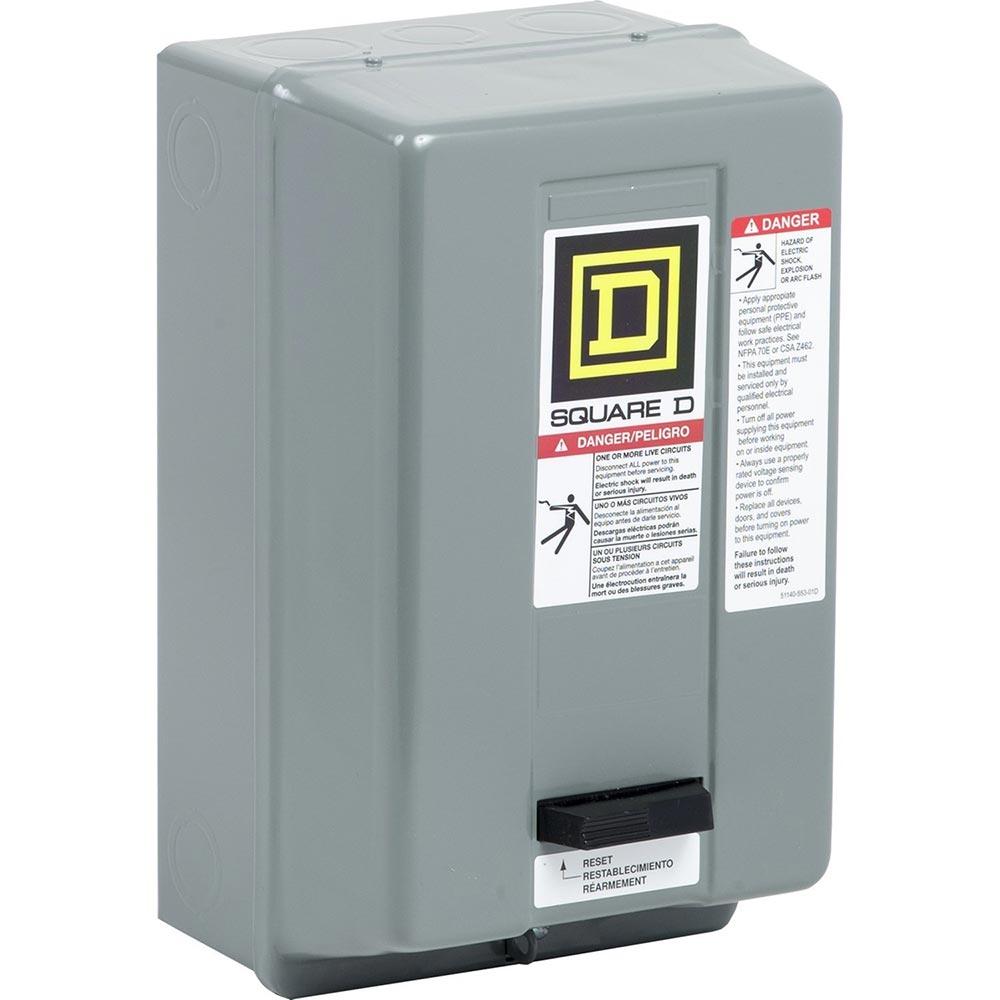

The Square D 8536SBG2V03 is a Type S NEMA magnetic motor starter designed for full-voltage starting and stopping of three-phase AC motors. This non-reversing starter features a NEMA Size 0 rating, 18 Amp current capacity, 3-pole configuration, melting-alloy thermal overload protection, and a NEMA 1 general-purpose enclosure. It is equipped with a 220/240 VAC, 50/60 Hz operating coil and is rated for systems up to 600 VAC.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: NEMA Magnetic Motor Starter
• Series: Type S / Class 8536
• Catalog Number / MPN: 8536SBG2V03
• Starter Type: Magnetic Motor Starter
• Action: Non-Reversing
• NEMA Size: Size 0
• Primary Rating: 18 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Maximum Voltage: 600 VAC
• Coil Voltage: 220/240 VAC
• Nominal Coil Voltage @ 60 Hz: 240 VAC
• Frequency: 50/60 Hz
• Overload Type: Melting-Alloy Thermal
• Thermal Units Required: 3 Type B Thermal Units
• Enclosure: NEMA 1
• SCCR: 5 kA

Horsepower Ratings

• 200 V, 3 Phase: 3 HP
• 230/240 V, 3 Phase: 3 HP
• 460 V, 3 Phase: 5 HP
• 575/600 V, 3 Phase: 5 HP

Dimensions & Weight

• Height: 10 in.
• Width: 6 in.
• Depth: 5.56 in.
• Weight: Approximately 7.4 lbs

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: 8536SBG2V03
• Series: Type S / Class 8536
• Product Type: NEMA Magnetic Motor Starter
• NEMA Size: 0
• Current Rating: 18 A
• Pole Count: 3 Pole
• Action: Non-Reversing
• Coil Voltage: 220/240 VAC
• UPC: 785901869108
• GTIN: 00785901869108
• Country of Origin: Mexico

Compatibility

The Square D 8536SBG2V03 is designed for compatible Schneider Electric / Square D Type S NEMA motor control applications for three-phase AC motors. Verify the motor horsepower, system voltage, coil voltage, overload thermal units, enclosure requirements, and control equipment compatibility before installation.
