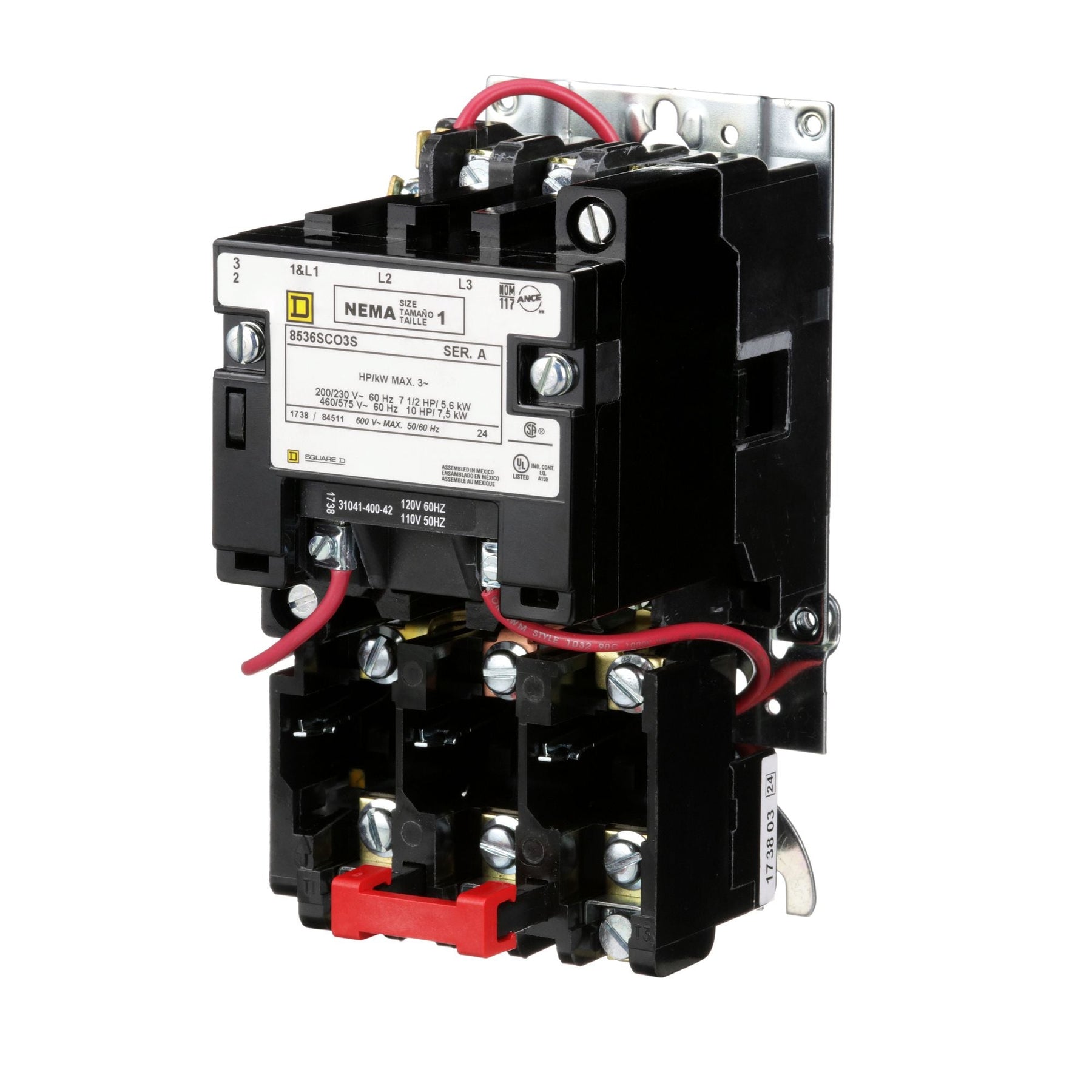

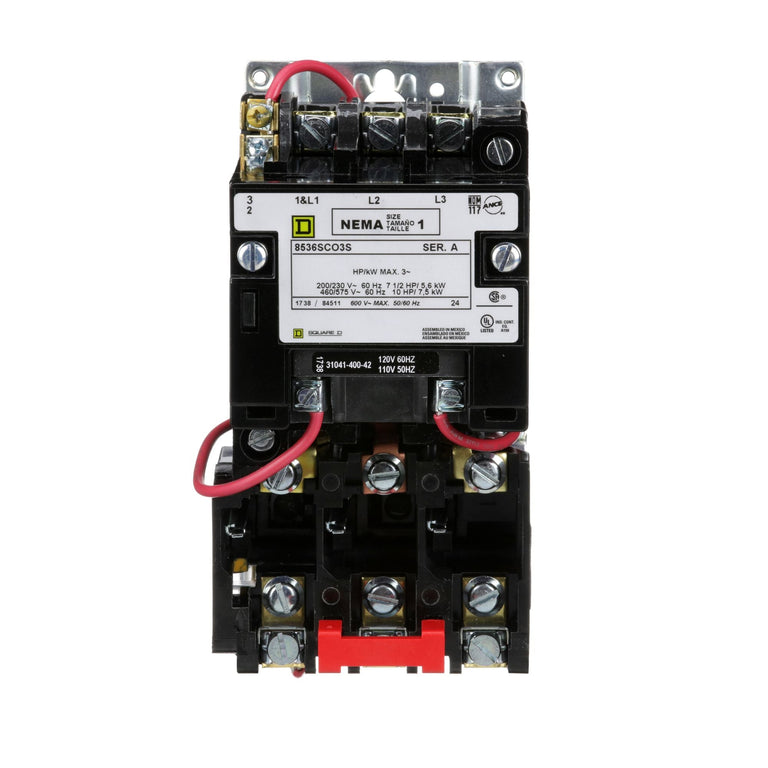

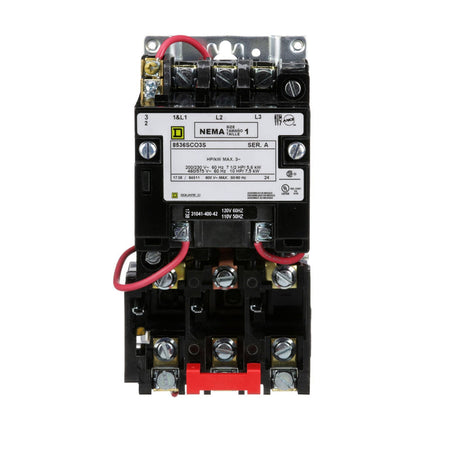

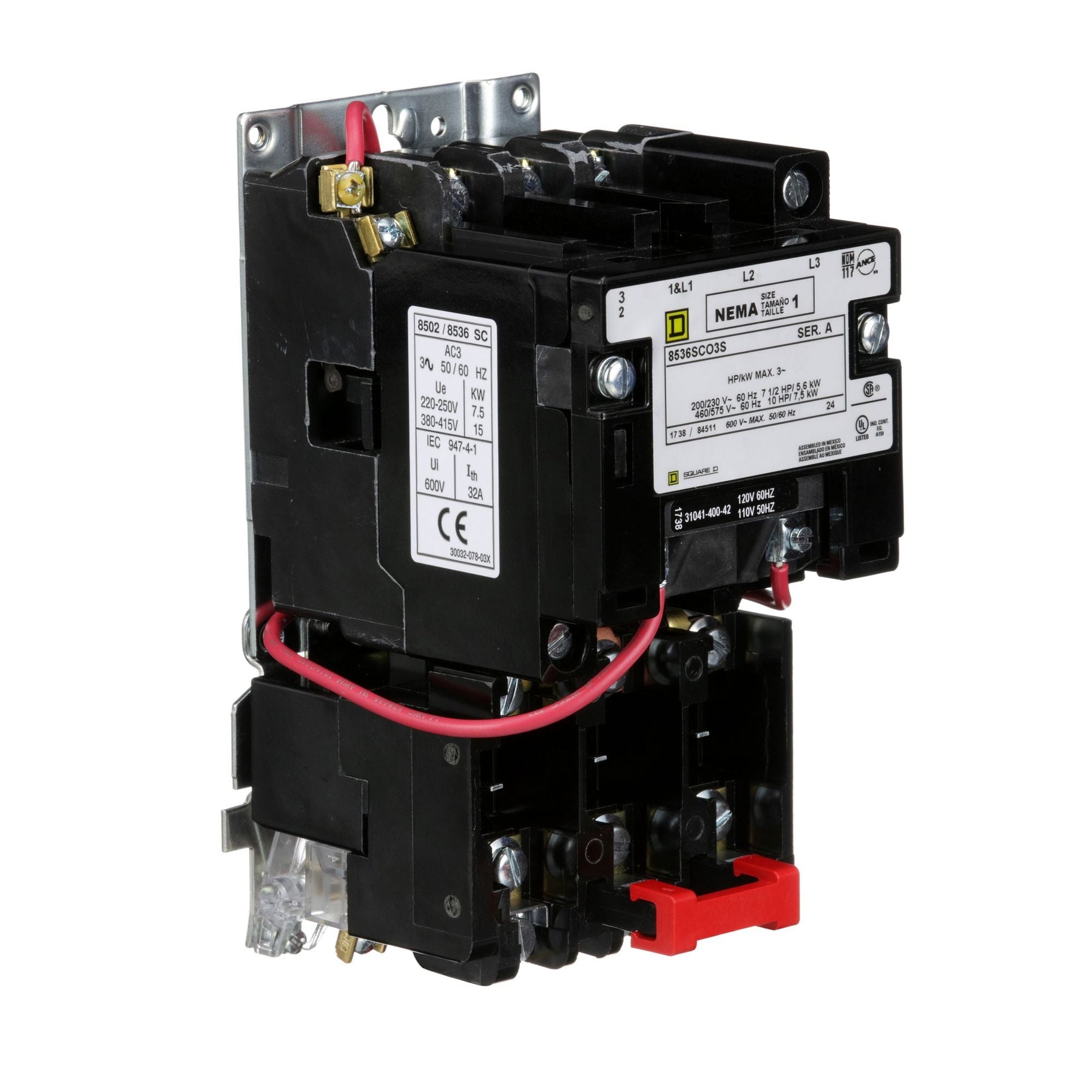

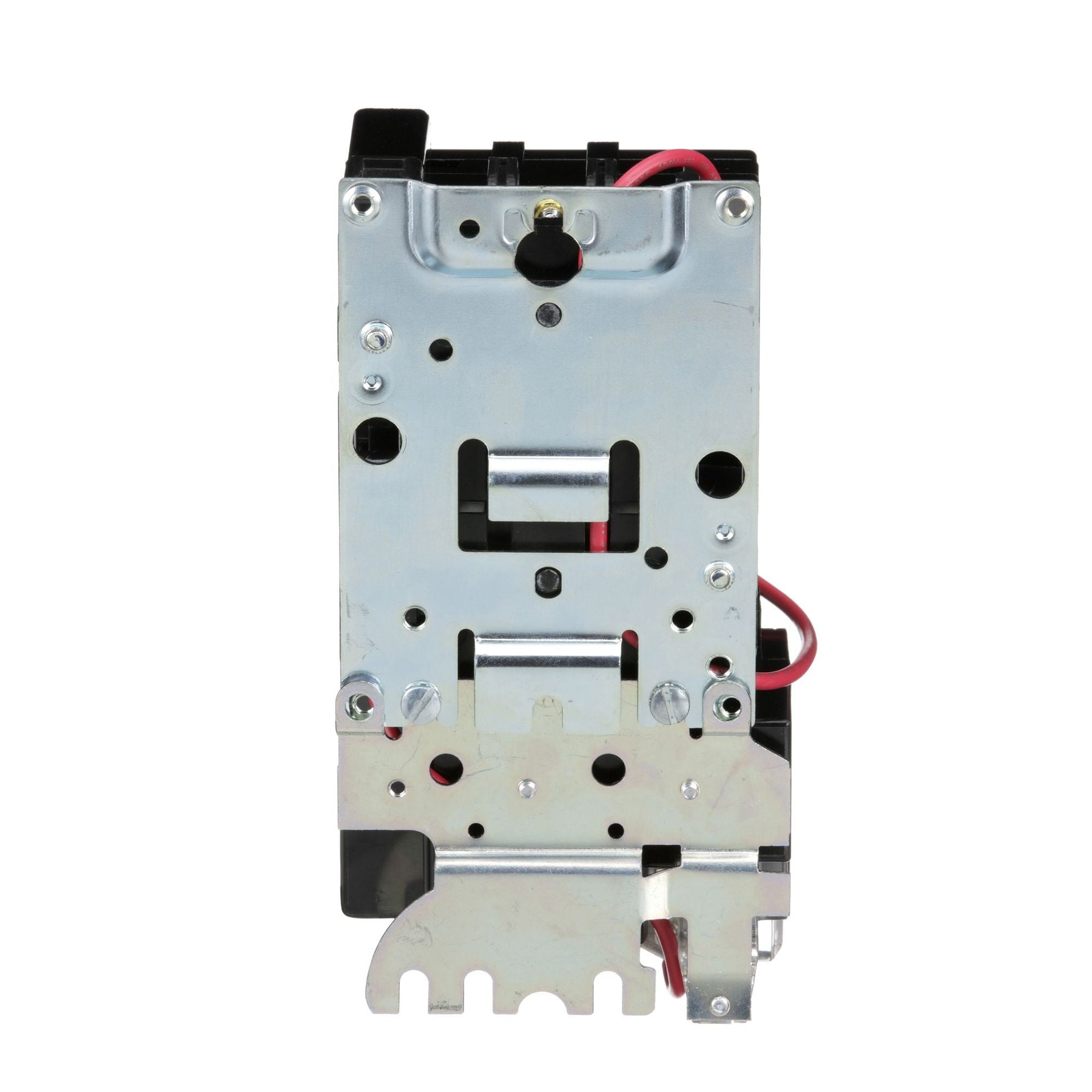

Square D 8536SCO3V03 27 Amp Electric Motor Starter – 3 Pole – 600 V – 240 V/60 Hz Coil – Class 8536

The Square D 8536SCO3V03 is a 27 Amp, 3-pole electric motor starter from the Schneider Electric / Square D Class 8536 Series, Type SCG. It is rated for 600 V and features a 240 V, 60 Hz / 220 V, 50 Hz control coil. The starter is NEMA Size 1 and has an open-type construction for motor control applications.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Electric Motor Starter
• Family: Class 8536
• Type: SCG
• Catalog Number / MPN: 8536SCO3V03
• Primary Rating: 27 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Coil Voltage: 240 V @ 60 Hz / 220 V @ 50 Hz
• NEMA Size: Size 1
• Enclosure / Construction: Open Type

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: 8536SCO3V03
• Family: Class 8536
• Type: SCG
• Current Rating: 27 A
• Pole Count: 3 Pole
• Product Type: Electric Motor Starter
• NEMA Size: Size 1
• Construction: Open Type
• UPC: 785901872139

Compatibility

The Square D 8536SCO3V03 is designed for compatible Schneider Electric / Square D Class 8536 Type SCG motor control applications. Verify the motor load, control voltage, starter configuration, and system requirements before installation.

Certifications

• UL Listed
• CSA Certified
