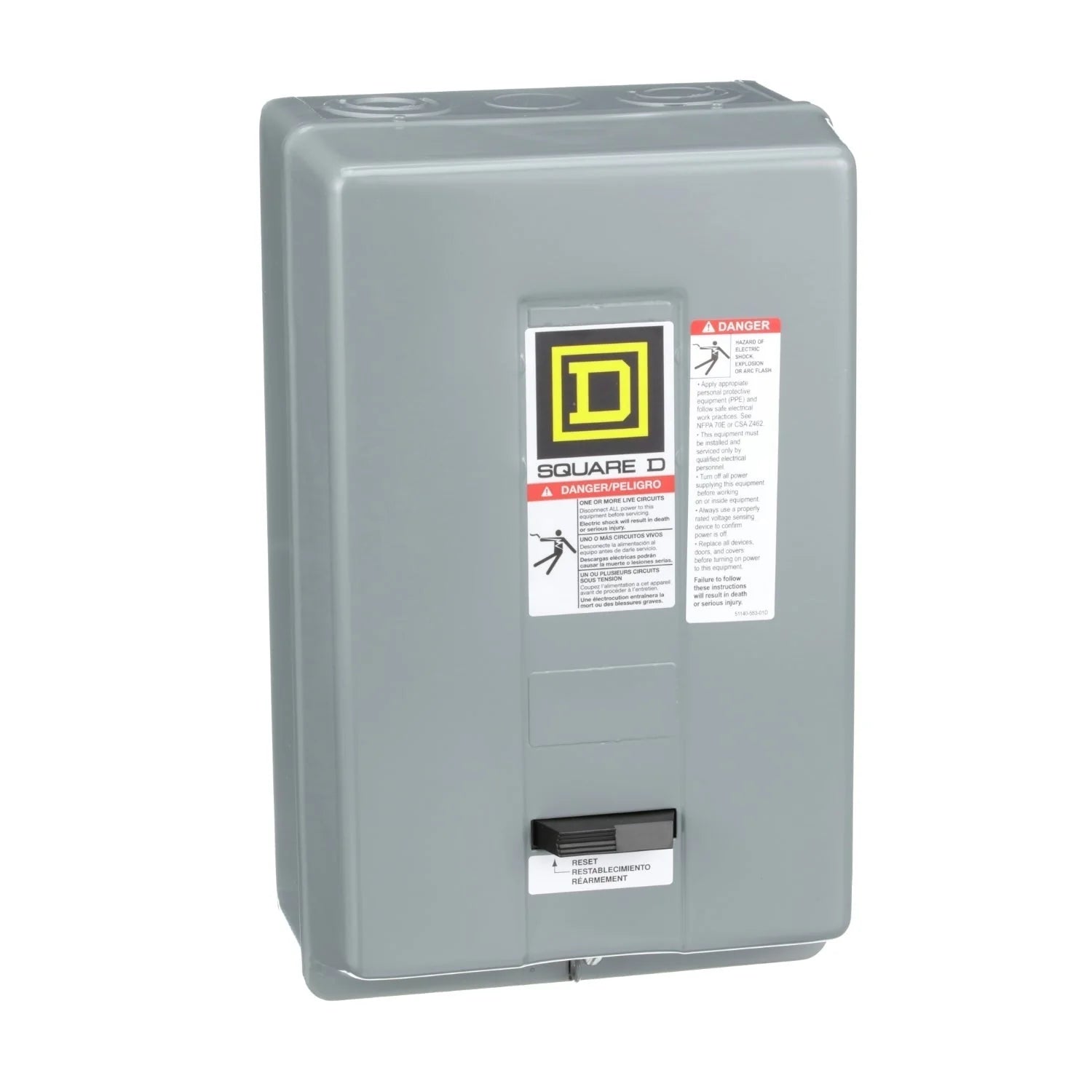

Square D 8536SDG1V02H30S 45 Amp NEMA Electric Motor Starter – 3 Pole – 120V AC Coil

The Square D 8536SDG1V02H30S is a three-pole electric motor starter designed for motor control applications. With a 45A current rating and a 120V AC coil, it provides switching and control for compatible three-phase motor circuits. It belongs to the Square D 8536 series of magnetic motor starters.

Specifications

• Brand: Square D / Schneider Electric
• Product Series: 8536
• Catalog Number: 8536SDG1V02H30S
• Product Type: Electric Motor Starter
• Current Rating: 45A
• Number of Poles: 3
• Phase: 3-phase
• Coil Voltage: 120V AC
• Starter Configuration: Not specified
• NEMA Size: Not specified
• Enclosure Type: Not specified
• Overload Protection: Not specified

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• MPN: 8536SDG1V02H30S
• Product Family: 8536 Series
• UPC:785901807087

Compatibility

Designed for compatible Square D 8536-series motor control applications requiring a three-pole starter with a 45A rating and 120V AC coil. Suitable for integration into motor control assemblies with compatible overload protection and control circuitry.
