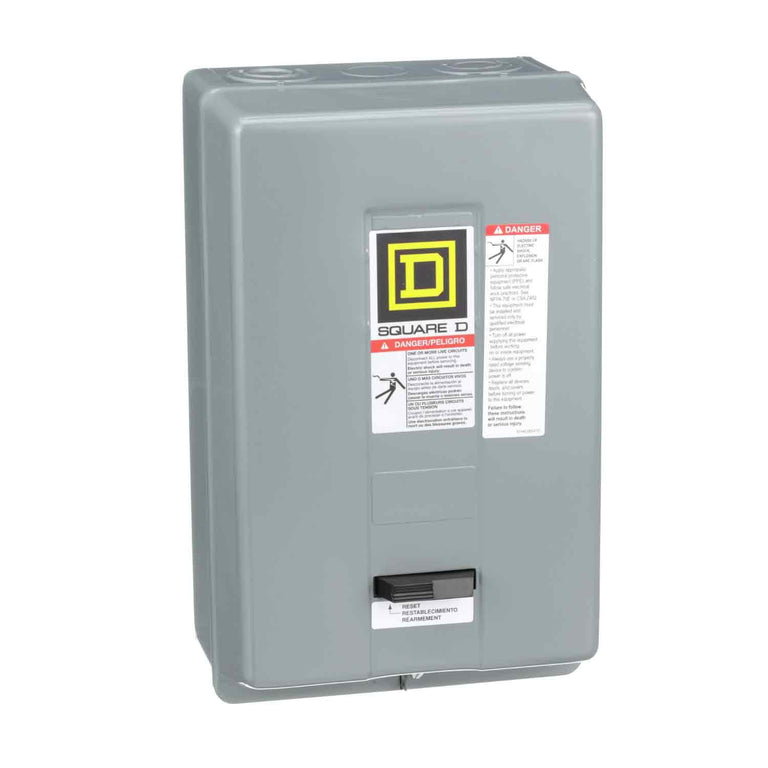

Square D 8536SDG1V03 45 Amp Electric Motor Starter – NEMA Size 3 – 3 Pole – Type S

The Square D 8536SDG1V03 is a 45 Amp electric motor starter from Schneider Electric's Square D Type S series. It is designed for motor control applications requiring switching and overload protection for compatible electric motors.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Electric Motor Starter
• Series: Type S
• Catalog Number / MPN: 8536SDG1V03
• Primary Rating: 45 Amp
• Poles / Configuration: 3 Pole
• NEMA Size: Size 3
• Motor Control Type: Motor Starter
• Application: Electric Motor Control
• Connection / Mounting: Not specified

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: 8536SDG1V03
• Series: Type S
• Current Rating: 45 A
• Pole Count: 3 Pole
• NEMA Size: Size 3
• Product Type: Electric Motor Starter
• UPC:785901881704

Compatibility

The Square D 8536SDG1V03 is designed for compatible Square D Type S motor control applications. Verify the specific motor voltage, horsepower, control voltage, overload requirements, enclosure configuration, and starter compatibility before installation.
