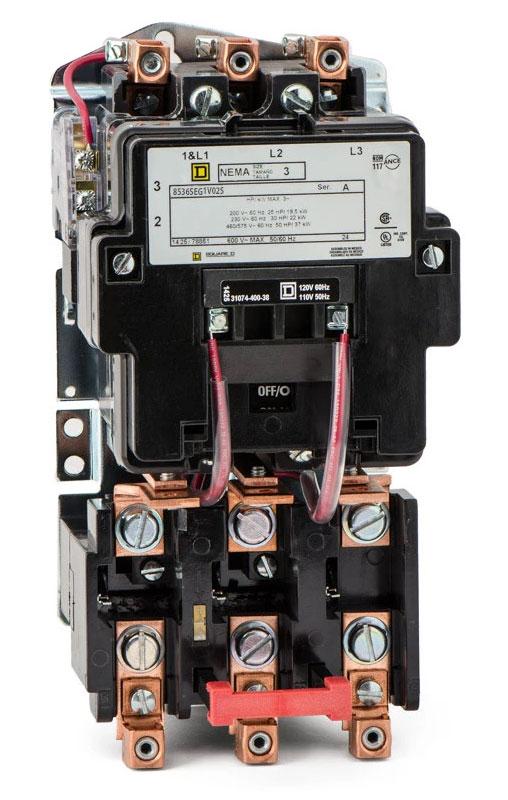

Square D 8536SEG1V02S 90 Amp Electric Motor Starter – 3 Pole – 3 Phase – NEMA Full-Voltage Non-Reversing – Magnetic Starter

The Square D 8536SEG1V02S is a 90 Amp, 3-pole, 3-phase NEMA magnetic electric motor starter from Schneider Electric / Square D. It features a full-voltage non-reversing (FVNR) configuration designed for starting and stopping AC squirrel-cage motors in industrial motor control applications.

The starter incorporates a standard melting-alloy overload relay for motor overload protection and features screw-clamp connections. Its magnetic starter design provides full-voltage motor control with integrated overload protection.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Electric Motor Starter
• Starter Type: NEMA Magnetic Motor Starter
• Catalog Number / MPN: 8536SEG1V02S
• Primary Rating: 90 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Starter Configuration: Full-Voltage Non-Reversing (FVNR)
• Connection Type: Screw-Clamp
• Overload Relay: Standard Overload Relay
• Overload Technology: Melting Alloy
• Motor Type: AC Squirrel-Cage Motor
• Control Function: Motor Starting and Stopping
• Protection: Motor Overload Protection

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: 8536SEG1V02S
• Current Rating: 90 A
• Pole Count: 3 Pole
• Phase Configuration: 3 Phase
• Product Type: NEMA Magnetic Electric Motor Starter
• Starter Configuration: Full-Voltage Non-Reversing
• Connection: Screw-Clamp
• Overload Relay Type: Melting Alloy
• UPC:785901788317

Compatibility

The Square D 8536SEG1V02S is intended for compatible Schneider Electric / Square D NEMA motor control applications requiring a 90 Amp, 3-phase, full-voltage non-reversing starter for AC squirrel-cage motors.
