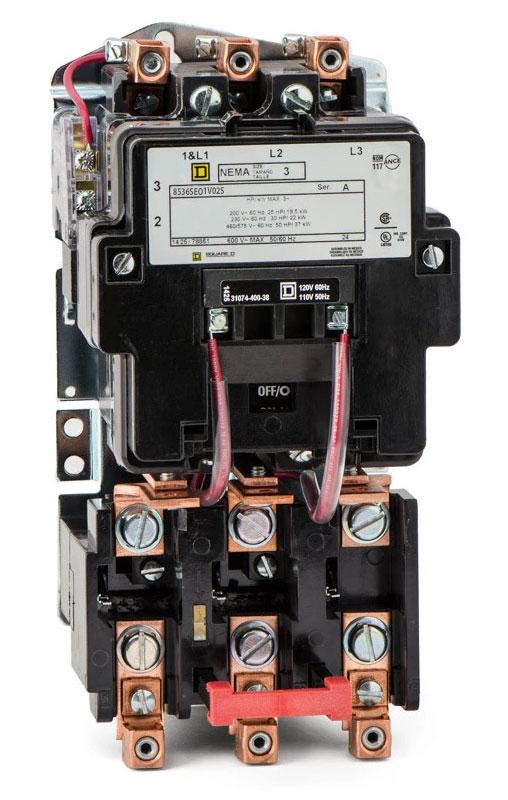

Square D 8536SEO1V02S Electric Motor Starter – 90A – 3-Pole / 3-Phase – 110/120V Coil – Full-Voltage Non-Reversing – NEMA

The Square D 8536SEO1V02S is a 90A, 3-pole, 3-phase NEMA full-voltage non-reversing electric motor starter from Schneider Electric / Square D. It features separate control, NEMA Size 3, and a control coil rated 110V at 50 Hz or 120V at 60 Hz. The starter uses melting-alloy overloads for motor protection.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Electric Motor Starter
• Catalog No.: 8536SEO1V02S
• Starter Type: NEMA Full-Voltage Non-Reversing
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• NEMA Size: Size 3
• Control Type: Separate Control
• Coil Voltage: 110V at 50 Hz / 120V at 60 Hz
• Overload Type: Melting Alloy
• Application: Electric Motor Starting and Protection
• Brand: Square D

Part Numbers & Identification:

• Manufacturer Part Number (MPN): 8536SEO1V02S
• Catalog Number: 8536SEO1V02S
• Product Family: Square D NEMA Motor Starters
• Series: 8536
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Electric Motor Starter
• Model: 8536SEO1V02S
• Configuration: 3-Pole, 90A
• Starter Configuration: Full-Voltage Non-Reversing
• upc:785901788515

Compatibility:

Designed for compatible Square D / Schneider Electric NEMA motor starter applications requiring a 3-pole, 90A, full-voltage non-reversing starter. The 8536SEO1V02S includes separate control, a NEMA Size 3 configuration, and melting-alloy overloads.

Always verify the motor horsepower, full-load current, control-circuit voltage and frequency, overload requirements, system voltage, enclosure/application requirements, and installation specifications before installation.

Certifications:

• NEMA Motor Starter
• NEMA Size 3
• 90A Rated
• 3-Pole / 3-Phase
• Full-Voltage Non-Reversing
• 110V Coil at 50 Hz
• 120V Coil at 60 Hz
• Melting-Alloy Overloads
