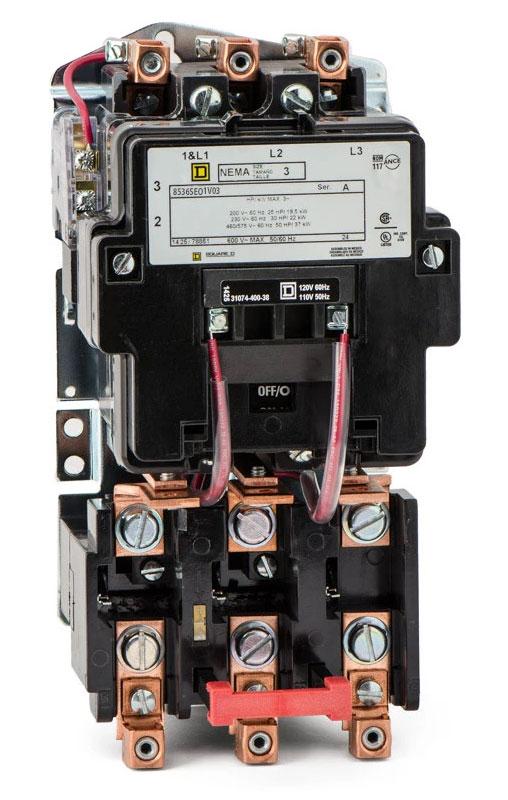

Square D 8536SEO1V03 Electric Motor Starter – 90A – 3-Pole / 3-Phase – 200/230V & 460/575V – 50 HP – Screw Clamp – NEMA Size 3

The Square D 8536SEO1V03 is a 90A, 3-pole, 3-phase NEMA full-voltage non-reversing electric motor starter from Schneider Electric / Square D. It is designed for compatible motor-control applications and features a screw-clamp connection with a separate control circuit.

The starter is NEMA Size 3 and provides a power rating of 25 HP at 200/230VAC and 50 HP at 460/575VAC. The coil is rated for 240VAC at 60Hz and 220VAC at 50Hz.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Electric Motor Starter
• Product Family: NEMA Starters
• Catalog No.: 8536SEO1V03
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Starter Type: Full-Voltage Non-Reversing
• NEMA Size: Size 3
• Connection Type: Screw Clamp
• Control Configuration: Separate Control
• Motor Rating: 25 HP @ 200/230VAC; 50 HP @ 460/575VAC
• Coil Voltage: 240VAC @ 60Hz; 220VAC @ 50Hz
• Frequency: 50/60Hz
• Application: Electric Motor Control
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): 8536SEO1V03
• Catalog Number: 8536SEO1V03
• Model: 8536SEO1V03
• Product Family: Square D NEMA Starters
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Electric Motor Starter
• Starter Configuration: 3-Pole, 90A
• Starter Type: Full-Voltage Non-Reversing
• NEMA Size: Size 3
• UPC:785901788430

Compatibility:

Designed for compatible Square D / Schneider Electric NEMA motor-control applications requiring a 90A, 3-pole, full-voltage non-reversing motor starter. The starter is suitable for motor loads rated up to 25 HP at 200/230VAC and 50 HP at 460/575VAC, as specified.

The unit uses a screw-clamp connection, separate control configuration, and a coil rated for 240VAC at 60Hz or 220VAC at 50Hz. Always verify the motor horsepower, system voltage, control voltage, frequency, NEMA size, wiring configuration, overload requirements, and installation specifications before installation.

Certifications:

• NEMA Starter
• NEMA Size 3
• 90A Rated
• 3-Pole / 3-Phase
• Full-Voltage Non-Reversing
• 25 HP @ 200/230VAC
• 50 HP @ 460/575VAC
• Screw-Clamp Connection
• Separate Control
• 240VAC @ 60Hz Coil
• 220VAC @ 50Hz Coil
