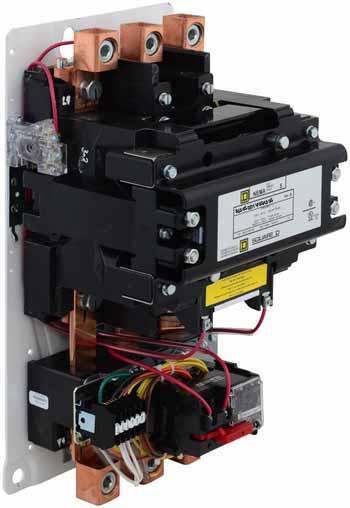

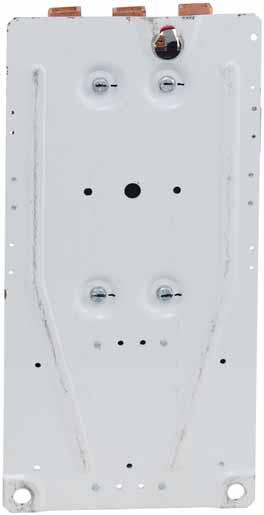

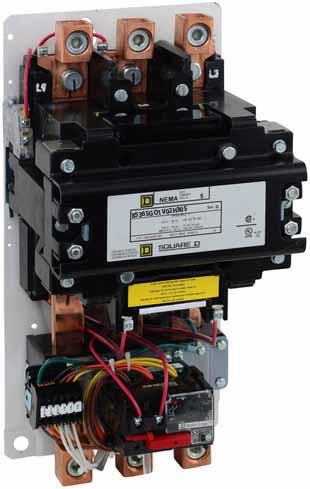

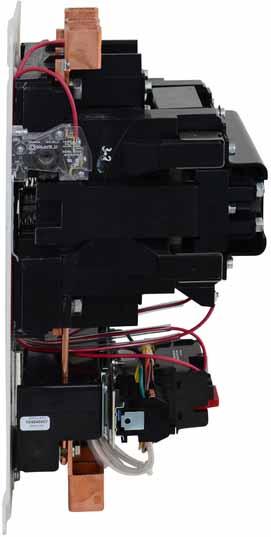

Square D 8536SGO1V02H30S 270 Amp Electric Motor Starter – 3 Pole – 600V AC – NEMA Size 5 – Motor Logic SSOLR Class 10/20

The Square D 8536SGO1V02H30S is a three-pole, three-phase electric motor starter designed for controlling and protecting industrial motor loads. It features a 270A current rating, a 600V AC voltage rating, and a 120V 60Hz / 110V 50Hz control coil. This open-type starter is equipped with a NEMA Size 5 configuration and a Motor Logic solid-state overload relay (SSOLR) with Class 10/20 overload protection.

Specifications

• Manufacturer: Square D
• Product Type: Electric Motor Starter
• Catalog Number / MPN: 8536SGO1V02H30S
• Poles: 3 Pole
• Phase: 3 Phase
• Current Rating: 270A
• Voltage Rating: 600V AC
• Coil Voltage: 120V AC, 60Hz / 110V AC, 50Hz
• NEMA Size: Size 5
• Enclosure / Construction: Open Type
• Overload Relay: Motor Logic Solid-State Overload Relay (SSOLR)
• Overload Protection Class: Class 10/20

Part Numbers & Identification

• Brand: Square D
• Catalog Number: 8536SGO1V02H30S
• Product Family: 8536 Series
• Product Category: Electric Motor Starter
• NEMA Configuration: Size 5
• UPC:785901604082

Compatibility

Suitable for three-phase motor control applications requiring a 270A, NEMA Size 5 starter with a 600V AC rating. Its Motor Logic SSOLR Class 10/20 overload protection supports industrial motor applications requiring solid-state overload protection and a 120V AC, 60Hz / 110V AC, 50Hz control coil.
