Square D 8910DPA33V02 Contactor – 30A – 3-Pole – 110/120V AC Coil – 20 HP @ 575V 3-Phase – Straight-Through – 8910DP Series

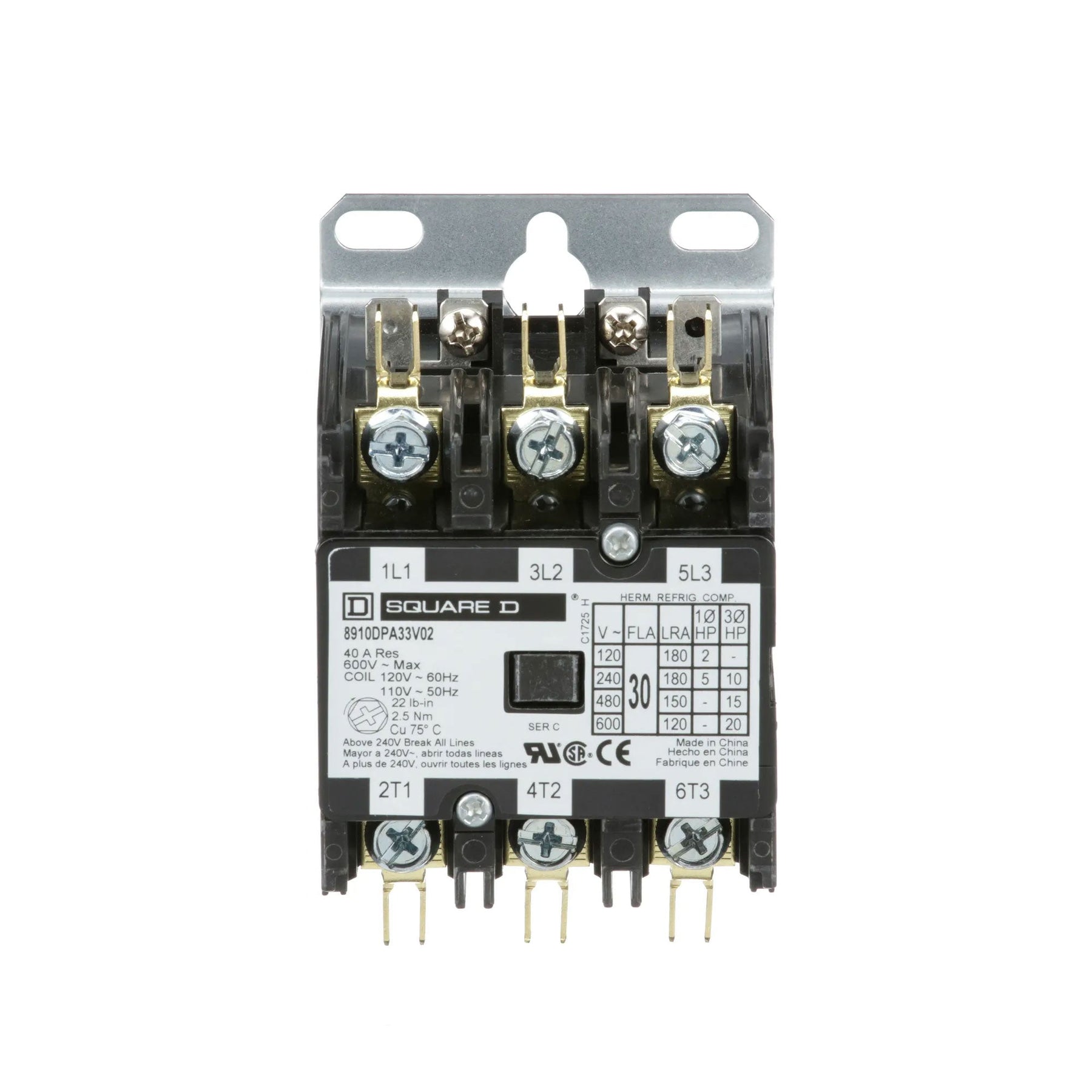

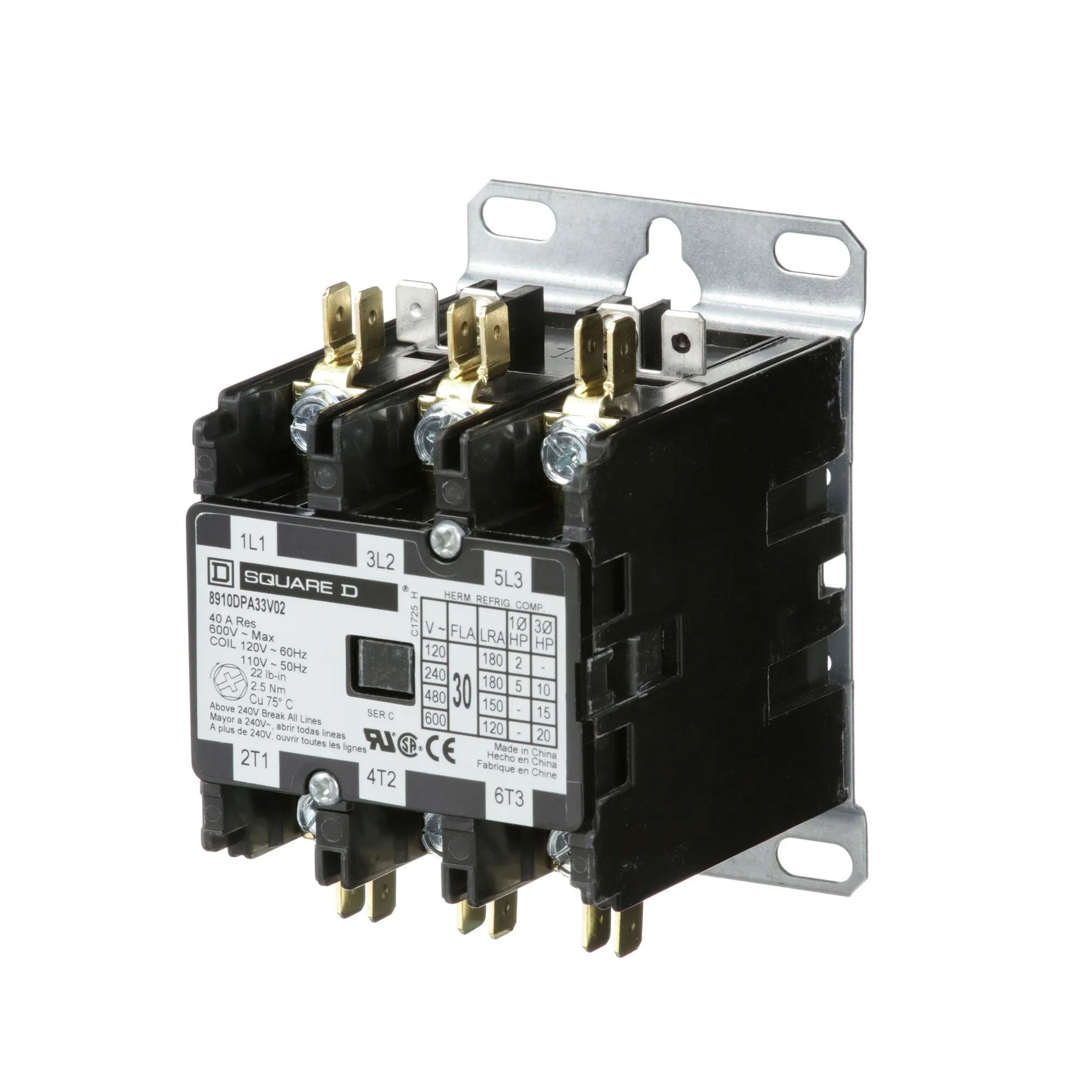

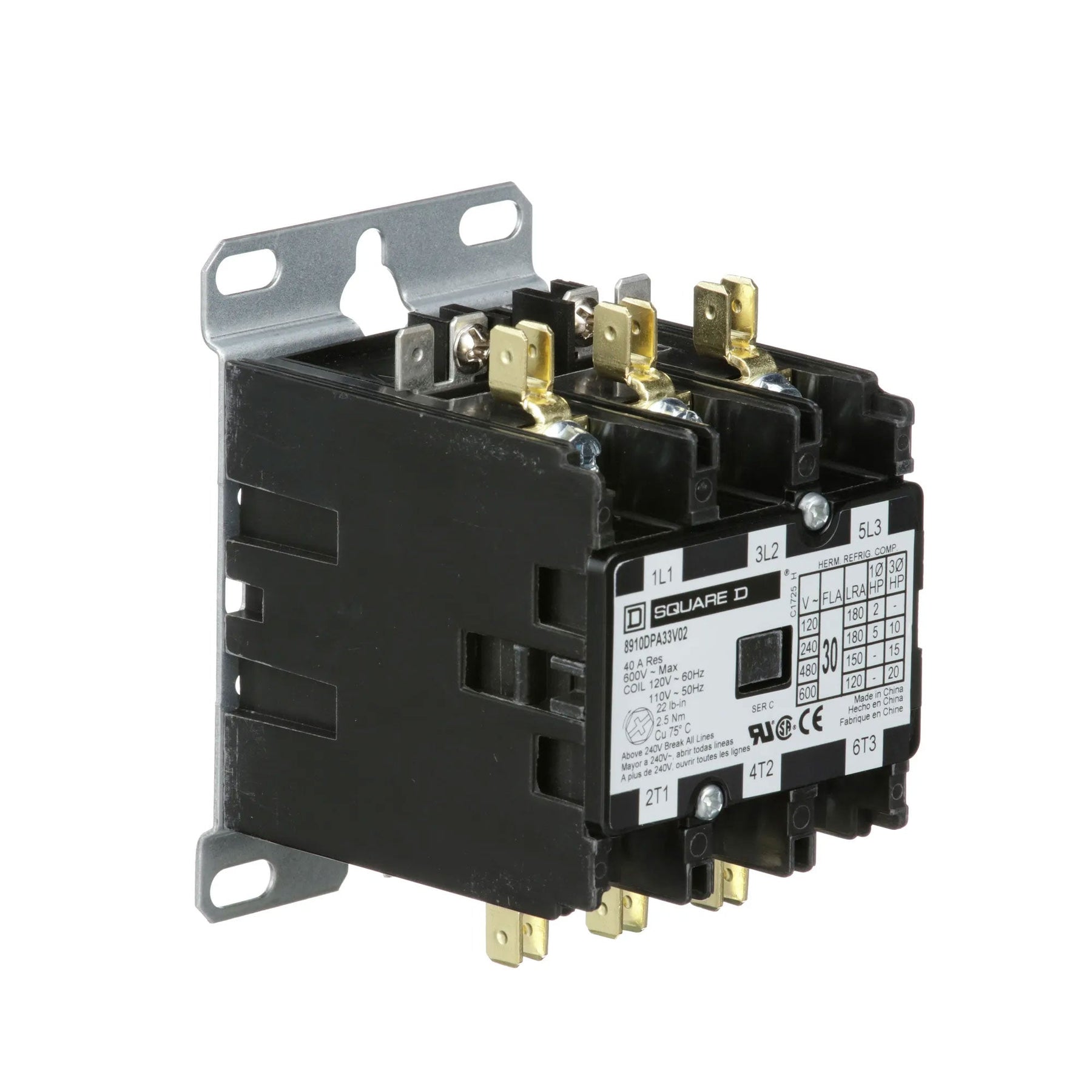

The Square D 8910DPA33V02 is a 3-pole definite-purpose magnetic contactor designed for heating, air conditioning, and refrigeration applications. It has a 30A full-load rating and a 40A resistive rating, with multiple motor horsepower ratings across single- and three-phase applications.

The contactor features a nonreplaceable 110/120VAC coil rated at 50/60Hz and straight-through wiring. It is suitable for compatible HVAC, refrigeration, heating, and motor-control applications. The device is UL Component Recognized and CSA Certified.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Definite-Purpose Magnetic Contactor
• Series: 8910DP
• Catalog No.: 8910DPA33V02
• Number of Poles: 3-Pole
• Full Load Rating: 30A
• Resistive Rating: 40A
• Coil Voltage: 110/120VAC
• Coil Frequency: 50/60Hz
• Coil Type: Nonreplaceable
• Wiring: Straight-Through
• Application: Heating, Air Conditioning, Refrigeration, and Motor Control
• Motor Rating: 2 HP @ 115VAC 1-Phase
• Motor Rating: 5 HP @ 230VAC 1-Phase
• Motor Rating: 10 HP @ 230VAC 3-Phase
• Motor Rating: 15 HP @ 460VAC 3-Phase
• Motor Rating: 20 HP @ 575VAC 3-Phase
• Maximum Series Rating: Up to 120A resistive and 50 HP @ 600VAC
• Dimensions: 3.75" × 2.37" × 3.00"

Part Numbers & Identification:

• Manufacturer Part Number (MPN): 8910DPA33V02
• Catalog Number: 8910DPA33V02
• Product Family: 8910DP
• Series: 8910DP
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Definite-Purpose Magnetic Contactor
• Model: 8910DPA33V02
• upc:785901073536

Compatibility:

Designed for compatible Square D 8910DP definite-purpose contactor applications, particularly heating, air conditioning, refrigeration, and motor-control systems. The 8910DPA33V02 is a 3-pole, 30A full-load contactor with a 110/120VAC, 50/60Hz nonreplaceable coil and straight-through wiring.

Always verify the required coil voltage and frequency, load current, motor horsepower, system voltage, phase configuration, and application requirements before installation.

Certifications:

• UL Component Recognized
• CSA Certified
• 30A Full-Load Rating
• 40A Resistive Rating
• 3-Pole
• 110/120VAC Coil
• 50/60Hz Coil
• Nonreplaceable Coil
• Straight-Through Wiring
• 8910DP Series
