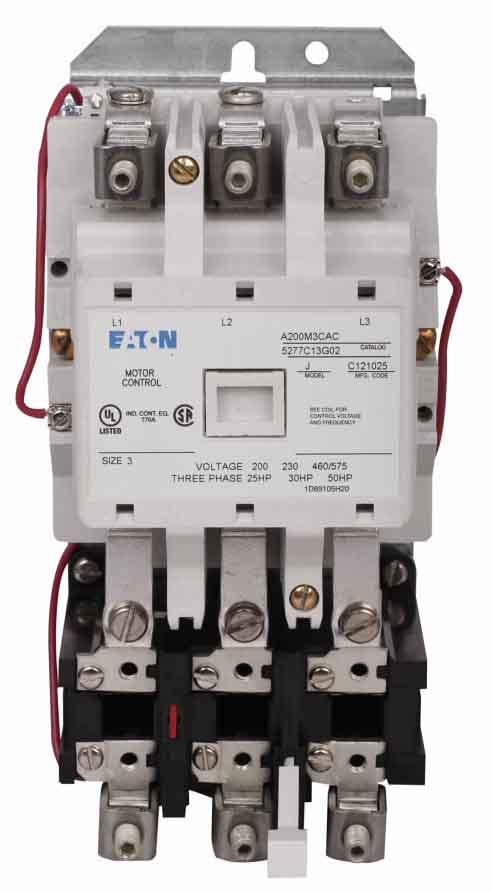

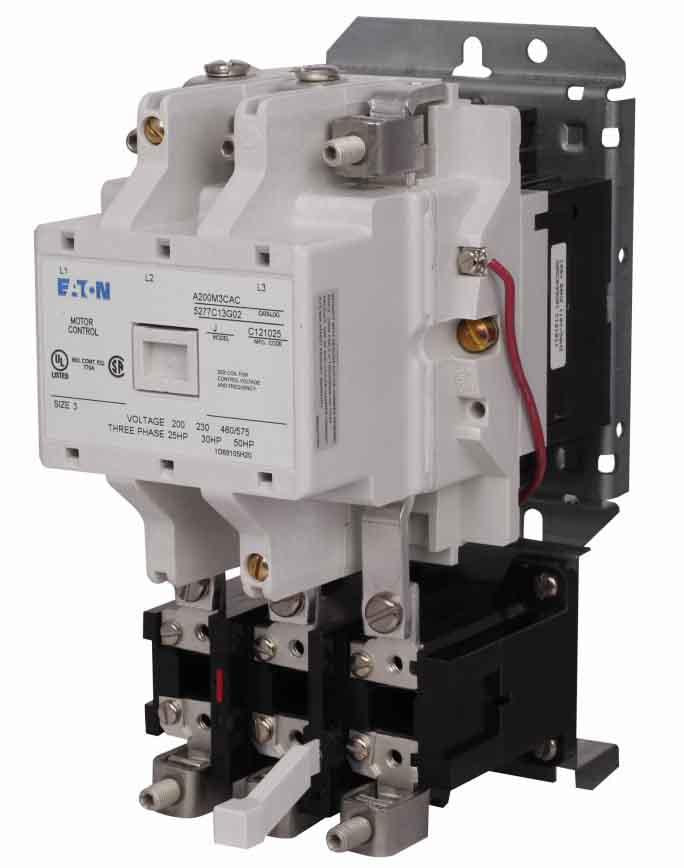

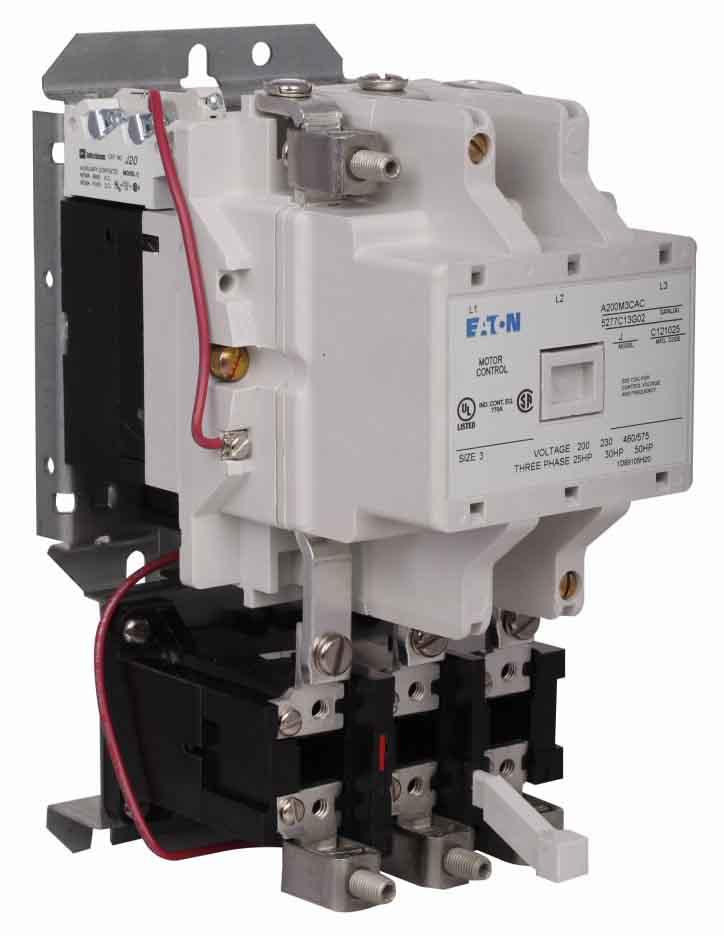

Eaton A200M3CB 90 Amp Electric Motor Starter – 3 Pole – 200–208 V AC Coil – NEMA Size 3 – Non-Reversing – A200 Series

The Eaton A200M3CB is a 90 Amp, 3-pole non-reversing electric motor starter from the Eaton Freedom NEMA A200 Series. It features a 200–208 V AC coil rated at 60 Hz and a NEMA Size 3 configuration. Designed for industrial motor control applications, it supports motor ratings up to 25 HP at 208 V, 30 HP at 240 V, and 50 HP at 480 V or 600 V.

Specifications

• Manufacturer: Eaton
• Brand: Eaton / Cutler-Hammer
• Product Type: Electric Motor Starter
• Series: A200
• Catalog Number / MPN: A200M3CB
• Primary Rating: 90 Amp
• Poles / Configuration: 3 Pole
• Coil Voltage: 200–208 V AC
• Coil Frequency: 60 Hz
• NEMA Size: Size 3
• Starter Configuration: Non-Reversing
• Motor Rating at 208 V: 25 HP
• Motor Rating at 240 V: 30 HP
• Motor Rating at 480 V: 50 HP
• Motor Rating at 600 V: 50 HP

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton / Cutler-Hammer
• Catalog Number: A200M3CB
• Series: A200
• Current Rating: 90 A
• Pole Count: 3 Pole
• Product Type: Non-Reversing Electric Motor Starter
• NEMA Size: Size 3
• Coil Voltage: 200–208 V AC at 60 Hz
• UPC:786678231266

Compatibility

The Eaton A200M3CB is intended for compatible Eaton Freedom NEMA A200 Series motor control assemblies and industrial motor switching applications.
