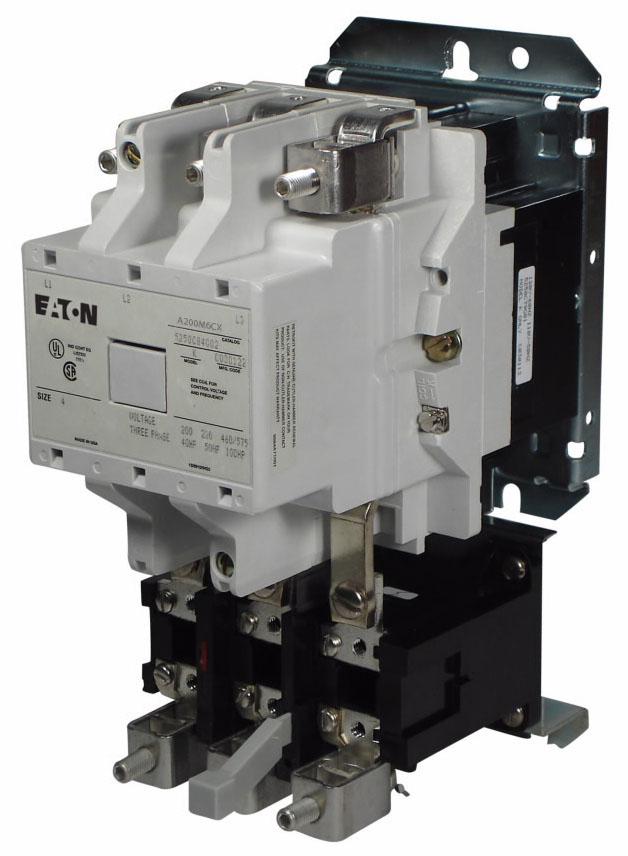

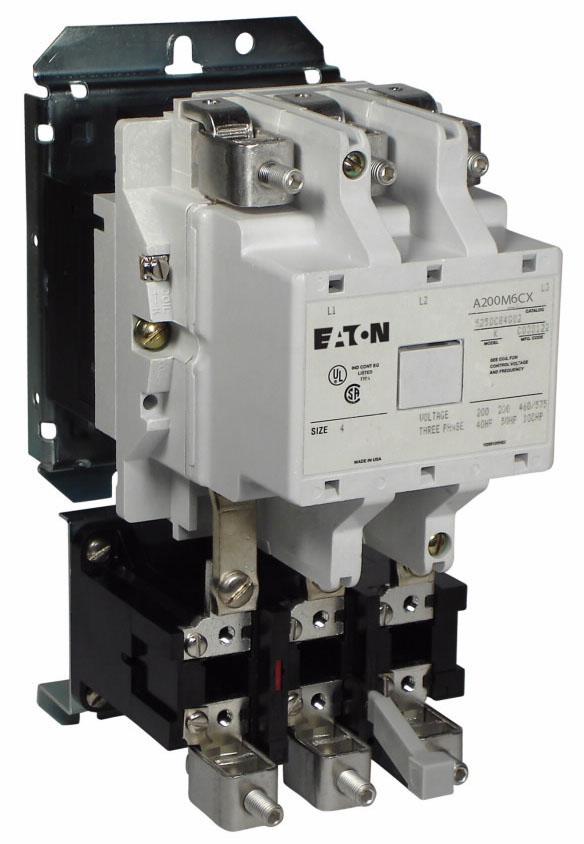

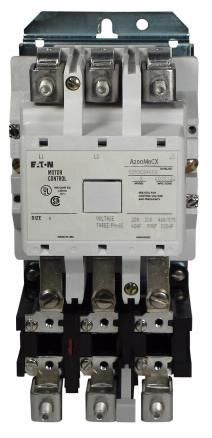

Eaton A200M6CX 540 Amp Electric Motor Starter – 3 Pole – NEMA Size 6 – 480 V AC Coil – Non-Reversing – A200 Series

The Eaton A200M6CX is a 540 Amp, three-pole electric motor starter from the Eaton Freedom NEMA motor control range, A200 Series. It features a non-reversing configuration and a 480 V AC coil rated at 60 Hz. The starter is NEMA Size 6 and supports motor ratings of 150 HP at 208 V, 200 HP at 240 V, and 400 HP at 480 V and 600 V.

Specifications

• Manufacturer: Eaton
• Brand: Eaton / Freedom
• Product Type: Electric Motor Starter
• Series: A200
• Product Family: Freedom NEMA
• Primary Rating: 540 Amp
• Poles / Configuration: 3 Pole
• Coil Voltage: 480 V AC
• Coil Frequency: 60 Hz
• NEMA Size: Size 6
• Motor Control Configuration: Non-Reversing
• Motor Rating at 208 V: 150 HP
• Motor Rating at 240 V: 200 HP
• Motor Rating at 480 V: 400 HP
• Motor Rating at 600 V: 400 HP

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton / Freedom
• Catalog Number / MPN: A200M6CX
• Series: A200
• Current Rating: 540 A
• Pole Count: 3 Pole
• Product Type: Electric Motor Starter
• NEMA Size: Size 6
• Configuration: Non-Reversing
• UPC;786678214573

Compatibility

The Eaton A200M6CX is intended for compatible Eaton Freedom NEMA A200 Series motor control and non-reversing motor starter applications.
