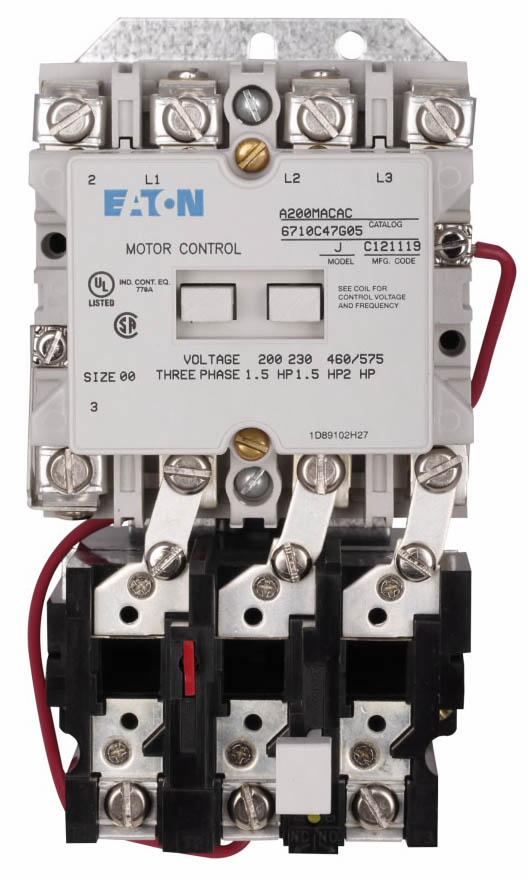

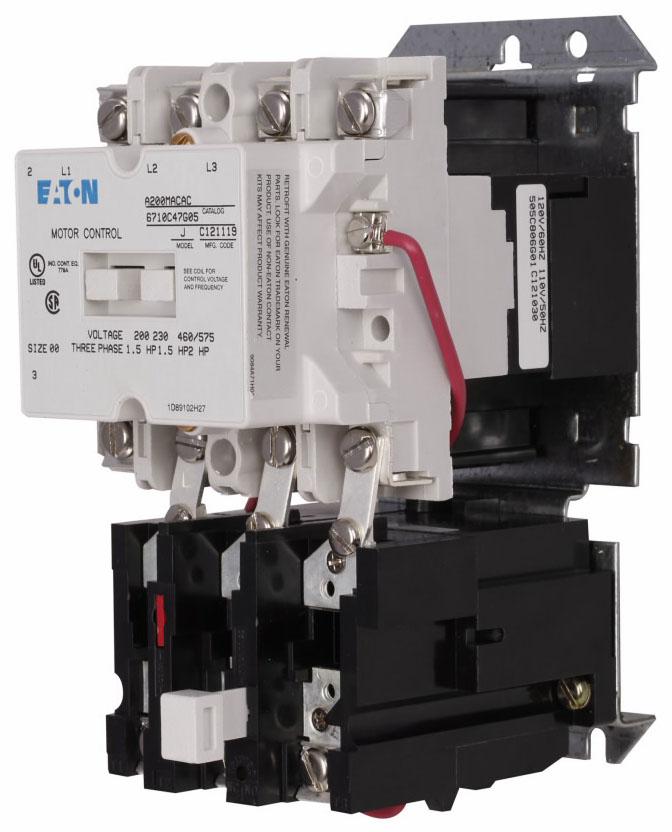

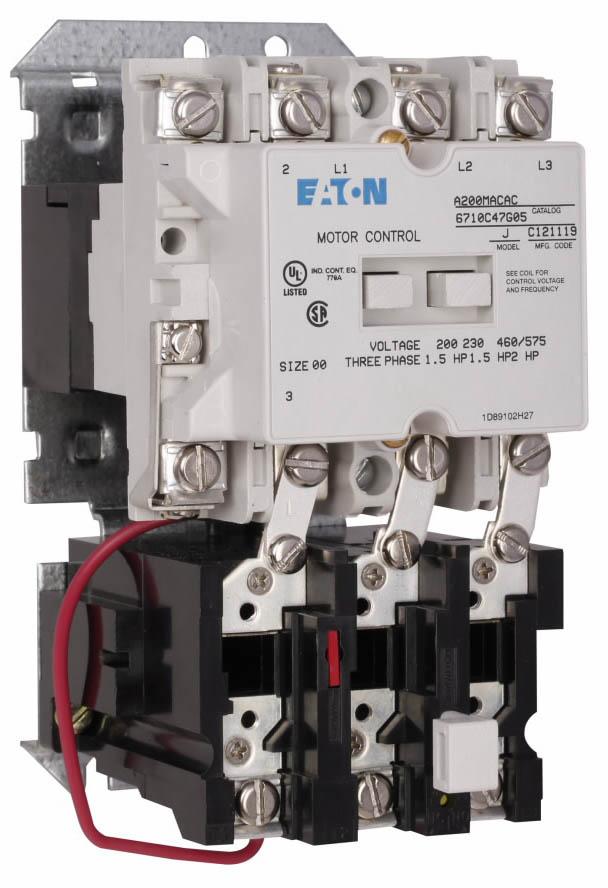

Eaton A200MACAC Electric Motor Starter – 9A – 3-Pole – 120/110V Coil – 2HP @ 480/600V – Wired for Separate Control – A200 Series

The Eaton A200MACAC is a 9A, 3-pole, non-reversing NEMA motor starter from the Eaton Freedom A200 Series. It features a 120V/60Hz or 110V/50Hz coil and is wired for separate control.

The starter is suitable for motor applications with horsepower ratings of 1/3 HP at 115V, 1-1/2 HP at 208/240V, and 2 HP at 480/600V.

Specifications:

• Manufacturer: Eaton
• Product Type: Electric Motor Starter
• Product Name: Freedom NEMA Motor Control Starter
• Catalog No.: A200MACAC
• Series: A200
• Starter Type: Non-Reversing Starter
• Current Rating: 9A
• Number of Poles: 3-Pole
• Coil Voltage: 120V @ 60Hz / 110V @ 50Hz
• Control Configuration: Wired for Separate Control
• Horsepower Rating: 1/3 HP @ 115V; 1-1/2 HP @ 208/240V; 2 HP @ 480/600V
• Application: Motor Control and Starting
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): A200MACAC
• Catalog Number: A200MACAC
• Model: A200MACAC
• Product Family: Eaton Freedom Motor Control
• Series: A200
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: NEMA Motor Starter
• Starter Configuration: 3-Pole, Non-Reversing
• Control Configuration: Separate Control
• UPC:786678231051

Compatibility:

Designed for use in compatible Eaton Freedom A200 Series motor control applications requiring a 9A, 3-pole, non-reversing NEMA starter with a 120V/60Hz or 110V/50Hz control coil.

Always verify the motor voltage, horsepower, full-load current, control voltage and frequency, starter configuration, overload requirements, and installation specifications before installation.

Certifications:

• No specific certification information provided
