Eaton A201K1CX 27 Amp Magnetic Contactor – 3 Pole – NEMA Size 1 – 480 V AC Coil – Non-Reversing – A200 Series

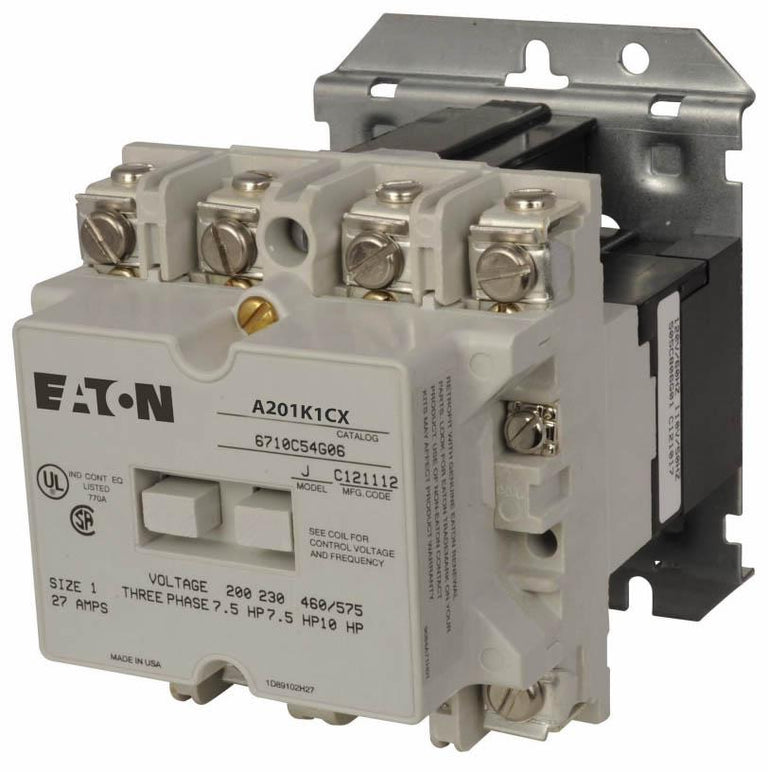

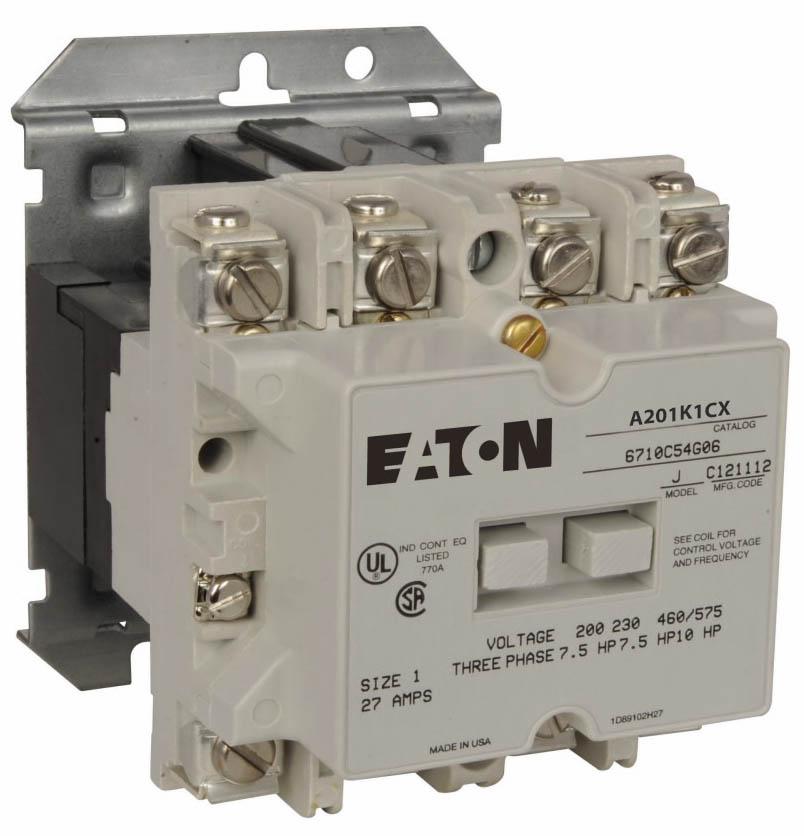

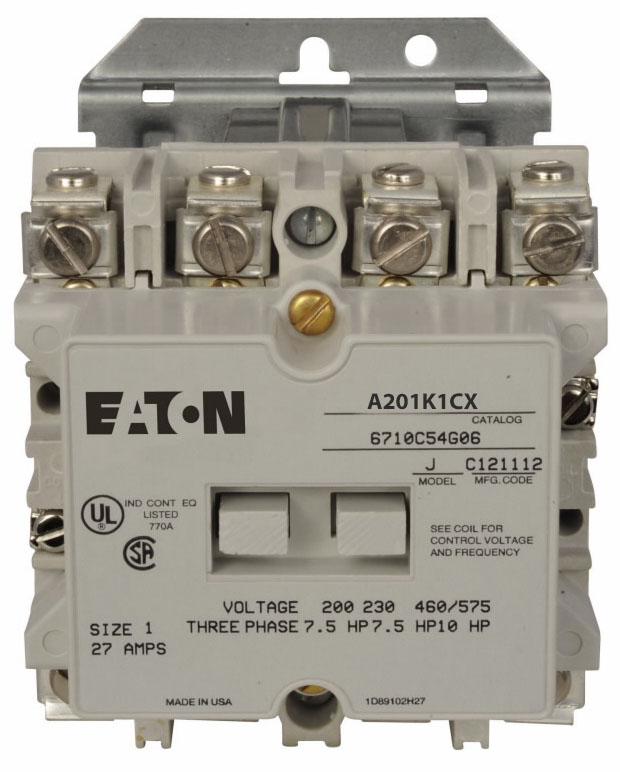

The Eaton A201K1CX is a 27 Amp, three-pole magnetic contactor from the Eaton Freedom NEMA motor control range, A200 Series. It features a non-reversing configuration, front-connected terminals, and an open-type construction. The contactor is NEMA Size 1 and is equipped with a 480 V AC coil rated at 60 Hz.

Specifications

• Manufacturer: Eaton
• Brand: Eaton / Freedom
• Product Type: Magnetic Contactor
• Series: A200
• Product Family: Freedom NEMA
• Primary Rating: 27 Amp
• Poles / Configuration: 3 Pole
• Coil Voltage: 480 V AC
• Coil Frequency: 60 Hz
• NEMA Size: Size 1
• Connection: Front Connected
• Construction: Open Type
• Motor Control Configuration: Non-Reversing

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton / Freedom
• Catalog Number / MPN: A201K1CX
• Series: A200
• Current Rating: 27 A
• Pole Count: 3 Pole
• Product Type: Magnetic Contactor
• NEMA Size: Size 1
• Connection: Front Connected
• Configuration: Non-Reversing
• UPC:786678231563

Compatibility

The Eaton A201K1CX is intended for compatible Eaton Freedom NEMA A200 Series motor control and non-reversing contactor applications.
