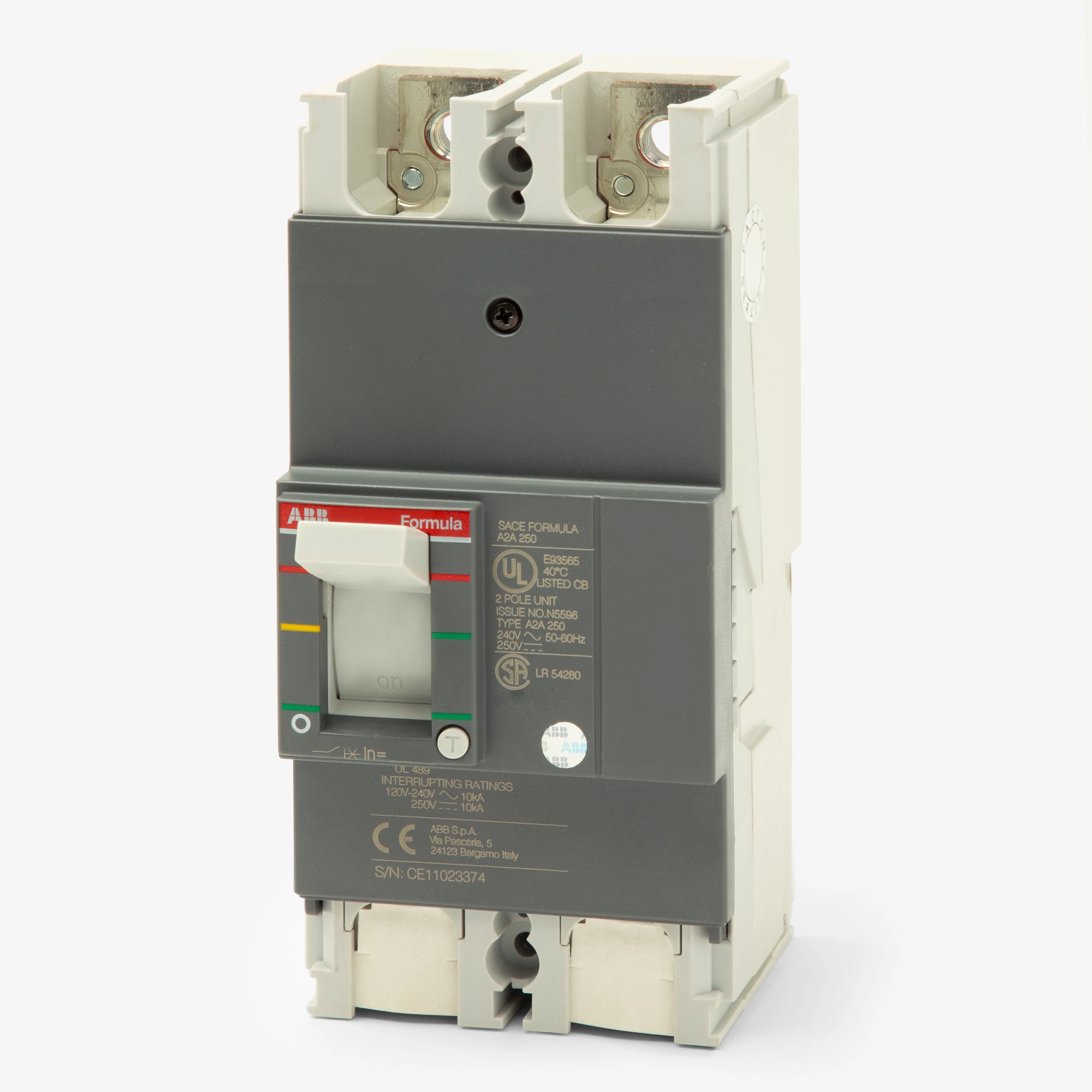

ABB A2A200TW-2 200A 2P Molded Case Circuit Breaker – Thermal Magnetic – 240VAC / 250VDC

In stock
SKU: A2A200TW-2 GTIN/UPC: 804325579001
$443.80
CONDITION
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The ABB A2A200TW-2 is a molded case circuit breaker from the Formula A2 frame series, engineered for reliable performance in commercial and industrial power distribution systems. Featuring a 2-pole configuration and a 200 Amp rating, it supports operation at 240VAC and 250VDC. This breaker utilizes a fixed thermal-magnetic trip unit to provide dependable long-time and instantaneous protection against overloads and short circuits. Designed for unit mount installation, it fits ABB ReliaGear RQ panelboards and serves as a replacement for legacy GE TQD22200 breakers.

Voltage and Rating

  • Current Rating: 200A
  • Voltage Rating: 240VAC / 250VDC
  • AIC Rating: 10kA @ 240VAC, 10kA @ 250VDC

Key Specifications

  • Device Type: Molded Case Circuit Breaker
  • Number of Poles: 2-Pole
  • Series: Formula (A2 Frame)
  • Phase: 1 Phase
  • Trip Technology: Thermal Magnetic
  • Trip Function Code: LI
  • Trip Function: Long-Time, Instantaneous
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic
  • Mounting Type: Unit Mount
  • Terminal Type: Lugs
  • Application: Power Distribution / Industrial Control Systems

Technical Specifications

  • Wire Gauge: 11 AWG – 300 kcmil (Cu/Al)
  • Temperature Rating: -25°C to 70°C
  • Construction Features: Reverse Feed, HACR Rated, 50°C Ambient Calibration
  • Accessories Included: Front Terminals
  • Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Rotary Handle, Lug Kits, DIN Rail Adapter
  • Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
  • Approvals: CSA, IEC, UL

Product Data

  • Manufacturer: ABB
  • Model Number: A2A200TW-2
  • Series: Formula
  • Product Type: Molded Case Circuit Breaker
  • For Use With: ABB ReliaGear RQ Panelboards
  • Type Circuit Breakers
  • Vendor ABB
  • Brand ABB
