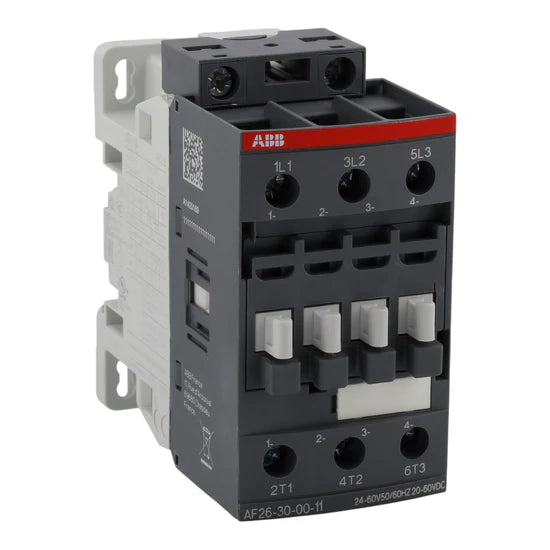

The ABB AF26-30-00-11 is a 26 Amp, 3-pole contactor designed for reliable motor control and power switching in industrial applications up to 690V AC. Featuring a wide-range 24–60V AC/DC coil, it provides flexible control voltage compatibility. The unit is equipped with durable screw terminals and supports both DIN rail and screw mounting for versatile installation. Built for robust performance, it is suitable for motors up to 11 kW at 400V AC (AC-3) and up to 15 hp at 480V (UL), making it an excellent choice for demanding control panel and automation environments.
Electrical Ratings:
- Rated Operational Current (AC-3): 26 Amps (400V, 60 °C)
- Rated Operational Voltage: 690V AC
- Rated Control Circuit Voltage: 24–60V AC (50/60 Hz), 20–60V DC
- Rated Operational Power (AC-3): 11 kW (400V)
- Conventional Free-Air Thermal Current: 50 Amps (40 °C)
- Frequency: 50/60 Hz
Key Specifications:
- Product Type: Contactor
- Series: AF Series
- Number of Poles: 3-Pole

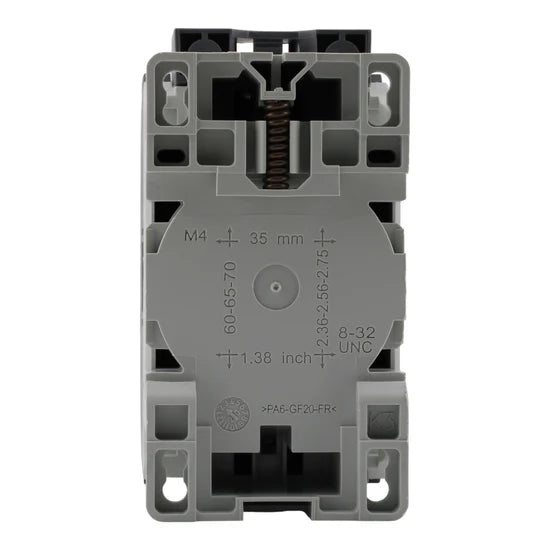

- Mounting Mode: DIN Rail (TH35-15, TH35-7.5) or Screw Mount
- Terminal Type: Screw Terminals
- Application: Motor control and power switching
Technical Specifications:
- Main Circuit Wire Size: 14–8 AWG (Rigid/Stranded)
- Control Circuit Wire Size: 18–14 AWG (Rigid)
- Main Circuit Capacity: Flexible 1/2× 1.5–10 mm²; Rigid 1/2× 2.5–10 mm²
- Control Circuit Capacity: Flexible 1/2× 0.75–2.5 mm²; Rigid 1/2× 1–2.5 mm²
- Tightening Torque: Main 22 lb-in; Control 11 lb-in
- Certifications: UL Listed, CSA Certified, IEC 60947-1, IEC 60947-4-1, UL 60335-2-40, CSA C22.2 No. 60335-2-40
Product Data:
- Manufacturer: ABB
- Brand: ABB
- Model Number: AF26-30-00-11
- UPC: 3471523110915
- Dimensions: 3.39" H × 1.77" W × 3.39" D
- Weight: 0.683 lbs
