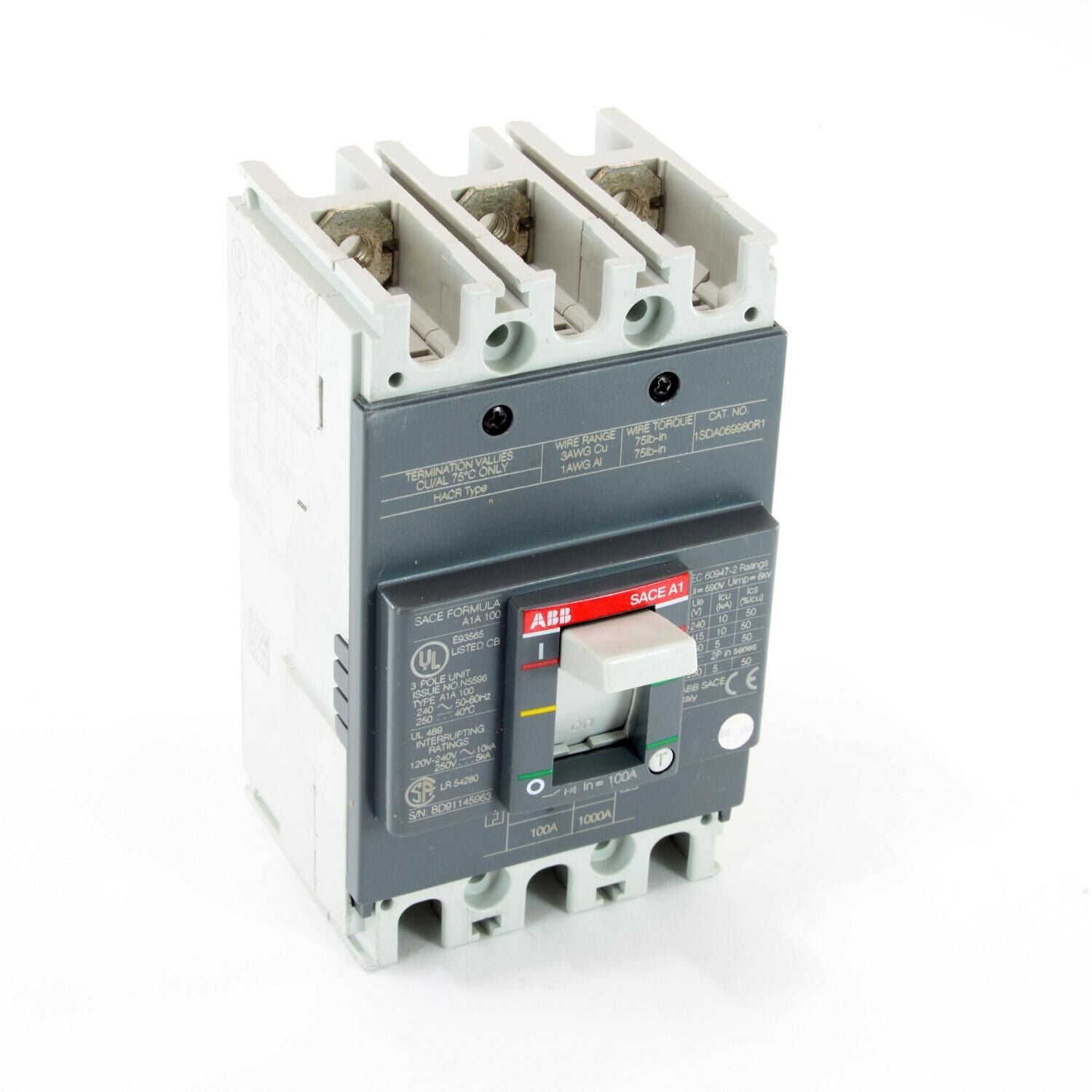

ABB FORMULA A1A100TW 100A 3P Molded Case Circuit Breaker – Thermal Magnetic – 240VAC / 250VDC
Couldn't load pickup availability
Ask an expert
The ABB FORMULA A1A100TW is a molded case circuit breaker designed for low-voltage industrial applications requiring dependable overcurrent protection. Featuring a 3-pole configuration and a 100 Amp rating, this breaker supports operation at 240VAC and 250VDC. It utilizes a thermal-magnetic trip unit to provide reliable protection against overloads and short circuits. With an interrupt rating of 5/10 kA, it is suitable for a wide range of motor control and distribution systems. Its compact design supports DIN rail or fixed mounting for flexible installation.
Voltage and Rating
- Current Rating: 100 Amps
- Voltage Rating: 240 VAC / 250 VDC
- Frequency Rating: 50/60 Hz
- Interrupt Rating: 5/10 kA
Key Specifications
- Device Type: Molded Case Circuit Breaker
- Number of Poles: 3-Pole
- Frame Type: A1A
- Trip Type: Thermal Magnetic
- Mounting Type: DIN Rail / Fixed
- Connection Type: Front
- Application: Low Voltage / Motor Control / Power Distribution
Technical Specifications
- Dimensions (W x D x H): 3 in x 2.36 in x 5.12 in
- Temperature Rating: -13°F to 158°F
- Trip Range: 100 to 1000 A
- Type: Adequate Interrupt Low Voltage
Product Data
- Manufacturer: ABB
- Model Number: FORMULA A1A100TW
- Product Type: Molded Case Circuit Breaker
- Amperage Rating: 100 A
- Type Circuit Breakers
- Vendor ABB
- Brand ABB
