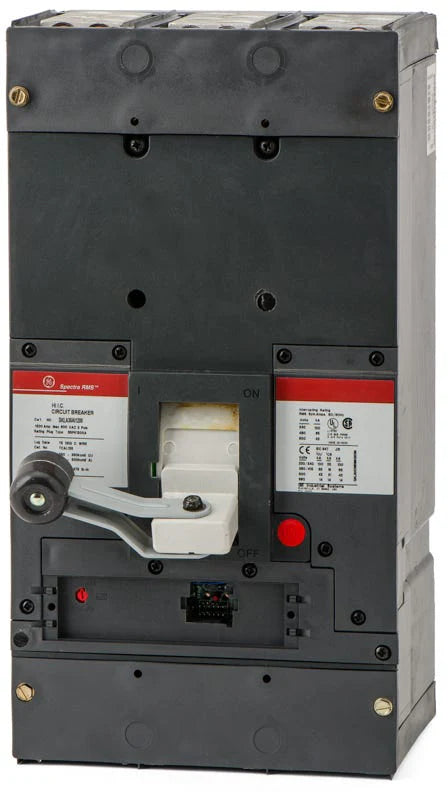

ABB / General Electric SKLA36AI1200 Motor Circuit Protector – 1200A, Spectra Series

In stock
SKU: SKLA36AI1200 GTIN/UPC: 783164211818
$6,558.28
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The ABB / General Electric SKLA36AI1200 is a high-performance motor circuit protector (MCP) engineered for critical industrial motor protection applications. Designed for installation in GE Spectra Series switchboards and motor control centers, this 3-pole, 1200A unit delivers instantaneous-only trip protection for reliable short-circuit defense and precise coordination with motor starters. Equipped with a solid-state electronic trip system featuring true RMS sensing and adjustable magnetic trip functionality, the breaker ensures dependable protection in demanding three-phase electrical systems. This model is commonly replaced by the XT7H 1200 Ekip M Dip I when upgrading to newer technology platforms.

Key Specifications

  • Brand: ABB / General Electric
  • Part Number: SKLA36AI1200
  • Series: SKLA
  • Product Type: Motor Circuit Protector (MCP)
  • Current Rating: 1200A
  • Voltage Rating: 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC
  • Phase: 3 Phase
  • Poles: 3
  • Mounting Style: Bolt-On
  • Terminal Type: Lugs
  • Temperature Rating: 40°C

Protection & Trip Features

  • Trip Technology: Electronic Trip
  • Trip Function Code: I
  • Trip Function:
    • Instantaneous Only
  • Trip Adjustability:
    • Adjustable Magnetic
  • True RMS Sensing

Interrupting Capacity

  • 100kA @ 120VAC
  • 100kA @ 240VAC
  • 65kA @ 277VAC
  • 65kA @ 480VAC
  • 42kA @ 600VAC
  • 100kA @ 120/240VAC

Construction Features

  • Motor Circuit Protector Design
  • Current Limiting
  • Reverse Feed Suitable
  • HACR Rated
  • Interchangeable Rating Plug
  • True RMS Sensing Technology

Wire & Terminal Specifications

  • Wire Gauge: (4) 250–500 kcmil (Cu/Al)
  • Maximum Wire Size: 500 kcmil
  • Minimum Wire Size: 250 kcmil

Available Options

  • Shunt Trip
  • Auxiliary Switch
  • Undervoltage Release
  • Bell Alarm
  • Lug Kits
  • Rating Plugs
  • Mechanism Lock

Accessories

  • Lugs Not Included

Standards & Approvals

  • CSA C22.2 No. 5
  • IEC 60947-2
  • UL 489
  • CE Approved
  • CSA Approved
  • HACR Rated
  • IEC Approved
  • UL Listed

Applications

  • GE Spectra Series switchboards
  • Motor control centers (MCCs)
  • Industrial motor protection systems
  • Heavy-duty three-phase motor circuits
  • Short-circuit protection for critical industrial equipment
  • Type Circuit Breakers
  • Vendor GE
  • Brand General Electric
