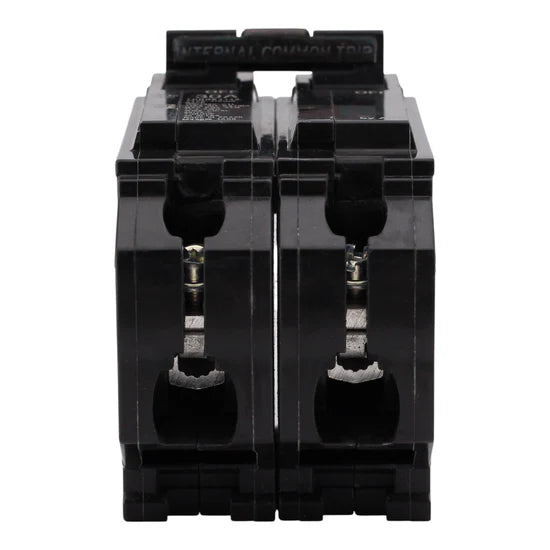

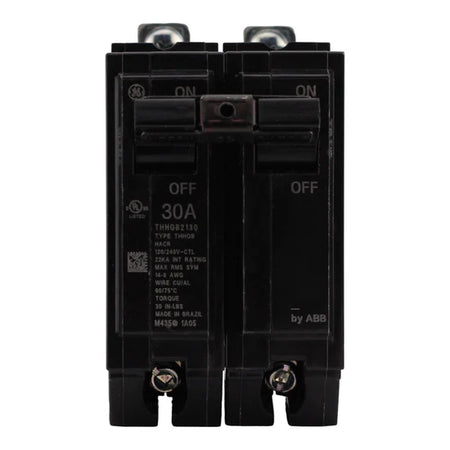

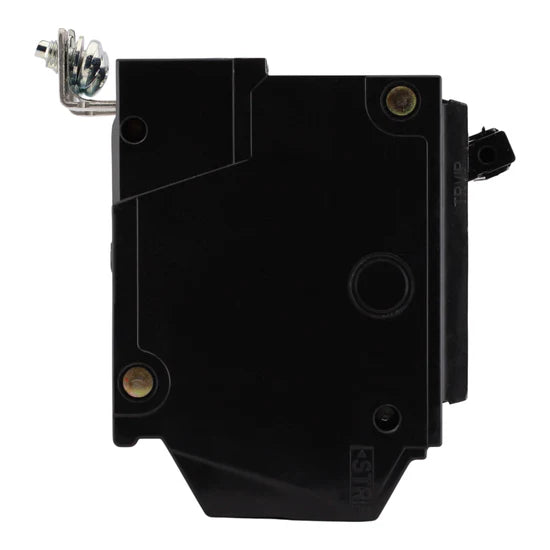

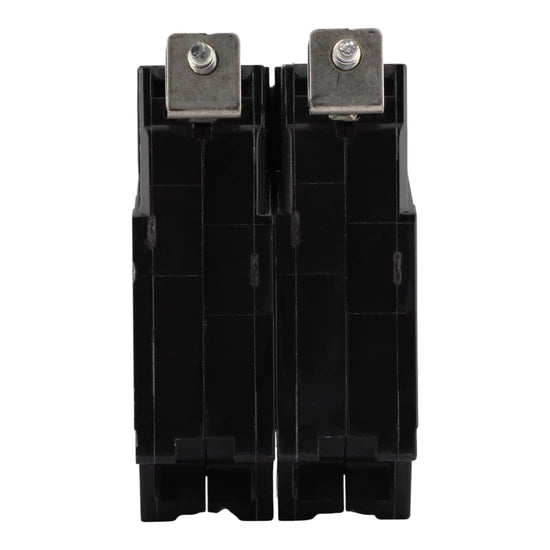

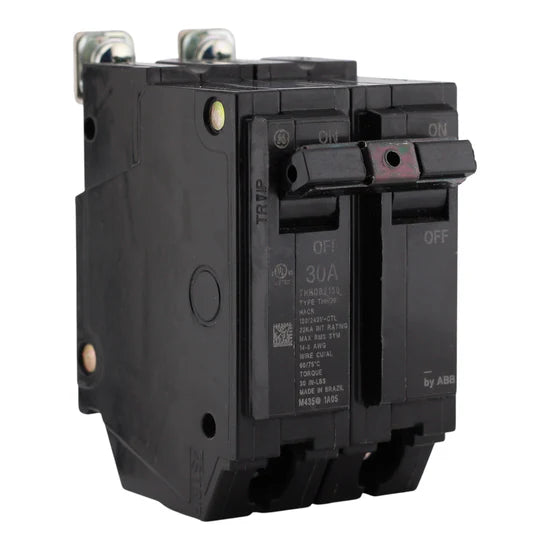

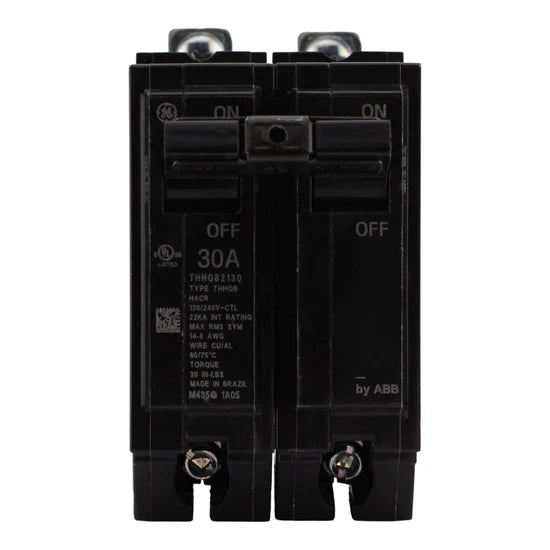

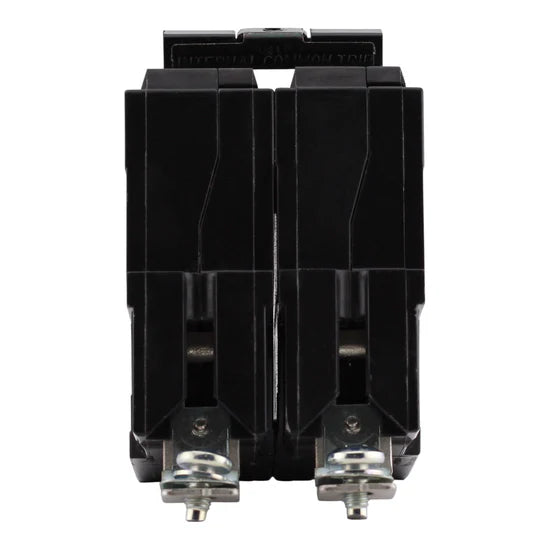

ABB THHQB2130 30A 2-Pole Thermal Magnetic – Bolt-On – 120/240V

The ABB THHQB2130 30A 2-Pole Thermal Magnetic – Bolt-On – 120/240V Circuit Breaker provides reliable 30 Amp, 2-pole overcurrent protection for 120/240V AC circuits in Q-Line loadcenters. Designed for residential and commercial applications, this breaker features a thermal-magnetic trip mechanism with a 22 kAIC interrupt rating. Its bolt-on mounting and load lug (box terminal) connections allow secure installation, and it is HACR rated for HVAC and motor loads. UL listed, the THHQB2130 ensures durable, safe, and code-compliant circuit protection.

Voltage and Rating

• Amperage Rating: 30 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 22 kAIC
• Poles: 2-Pole

Key Specifications

• Breaker Type: Thermal Magnetic Molded Case Circuit Breaker
• Mounting Type: Bolt-On
• Product Range: Q-Line (for AQ and AQC series panelboards)
• Connections: Load Lug (Box Terminal)
• Wire Size: #14–8 AWG Cu / #12–8 AWG Al
• Certifications: UL Listed (File #E11592), HACR Rated
• Application: Residential and commercial branch circuit protection

Technical Specifications

• Operating Mechanism: Thermal-magnetic
• Trip Settings: Fixed
• Mounting Mode: Bolt-on

Product Data

• Manufacturer: ABB (formerly GE Industrial Solutions)
• Brand: GE
• Model Number: THHQB2130
• UPC: 783164118360

Dimensions

• • Height: 3.29 in
  • Width: 2 in
  • Depth: 2.38 in
  • Weight: 0.75 lbs
