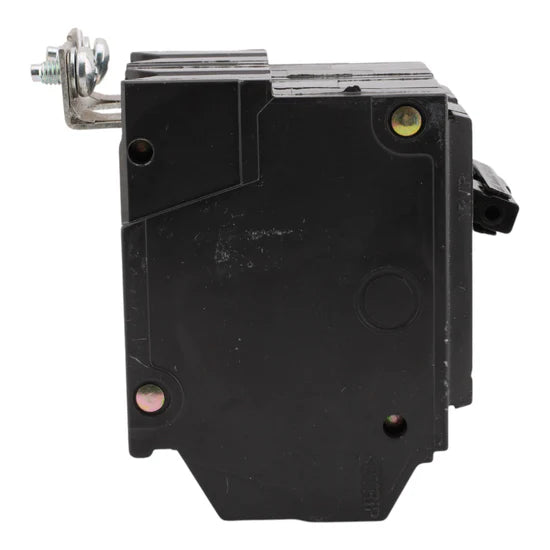

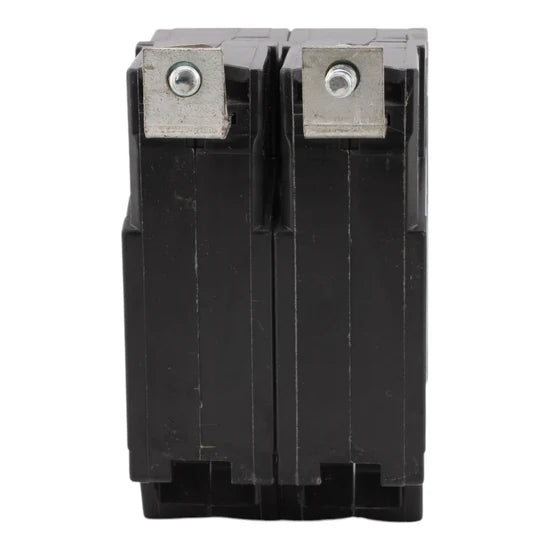

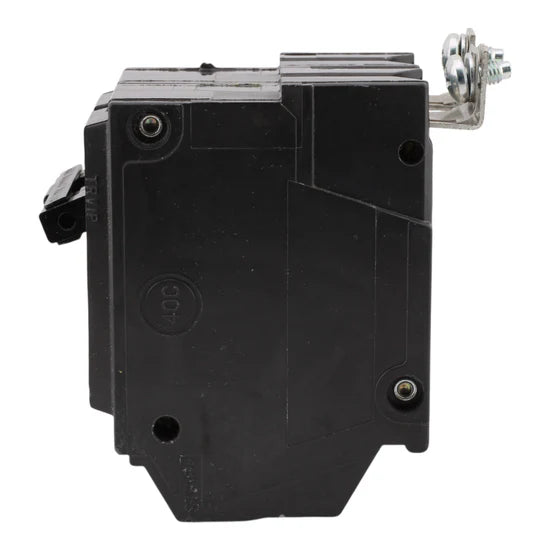

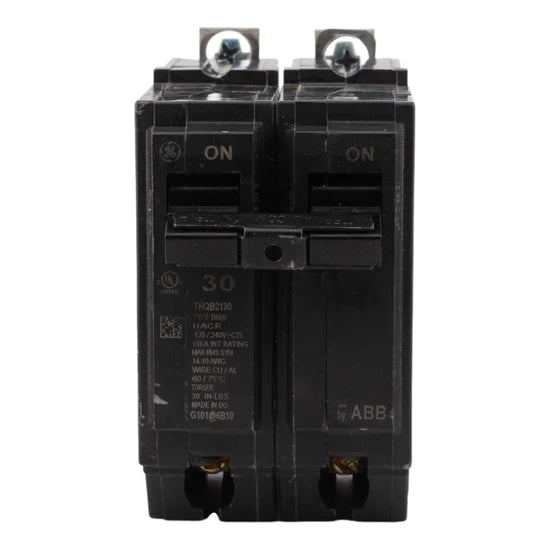

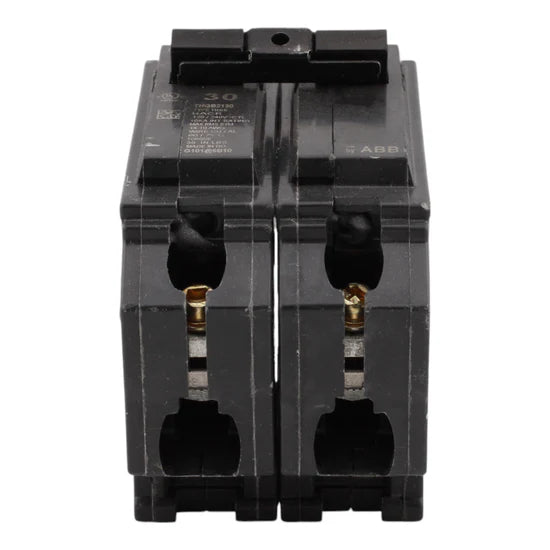

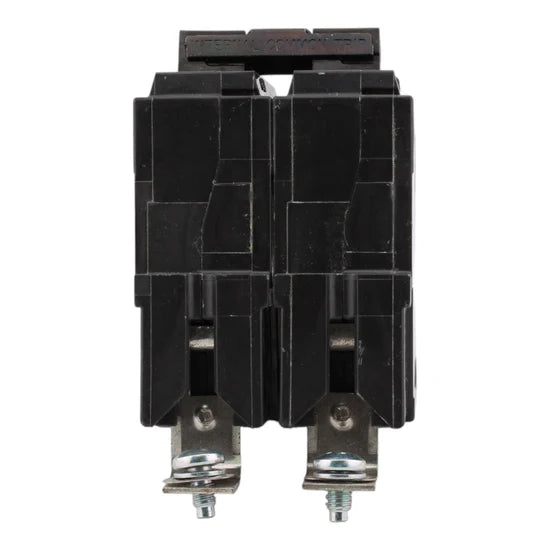

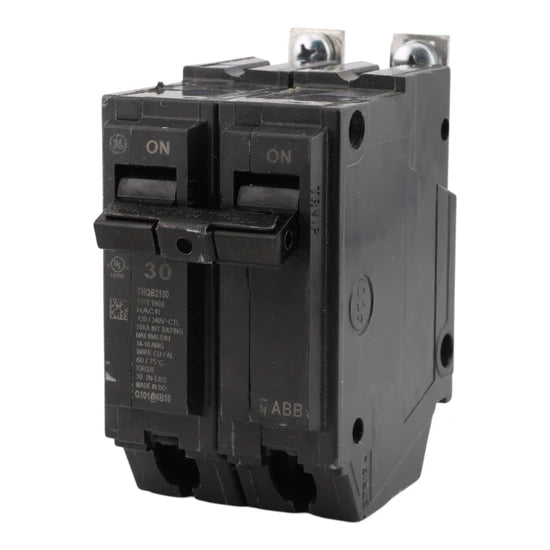

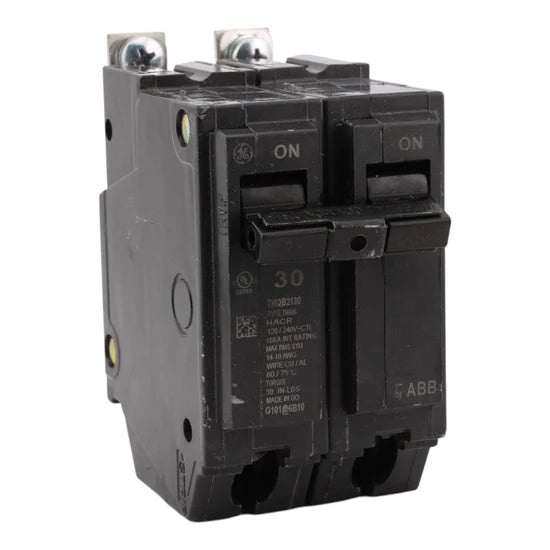

The ABB THQB2130 30 Amp two-pole bolt-on circuit breaker provides reliable thermal-magnetic protection for residential and commercial electrical systems. Designed for Q-Line load centers and lighting panels, it delivers dependable overload and short-circuit protection with a 10 kAIC interrupt rating. HACR rated and suitable for bolt-on installation, it ensures robust performance for HVAC and standard electrical applications.
Voltage and Rating
- Current Rating: 30 Amps
- Voltage Rating: 120V AC, 120/240V AC
- Interrupting Capacity: 10 kAIC
- Poles: 2-Pole
Key Specifications
- Breaker Type: Q-Line Bolt-On Circuit Breaker
- Frame Type: Q-Line
- Trip Function: LI (Long-time, Instantaneous)
- Trip Style: Non-Interchangeable
- Mounting Type: Bolt-On
- Application: Residential and commercial
- Suitable for Reverse Feed: Yes
- Special Markings: HACR (Heating, Air Conditioning, Refrigeration)
- Product Line: TEY Q-Line (Bolt-On)
- GSA Compliance: Yes
Technical Specifications
- Wire Range: 14–8 kcmil / 12–8 kcmil (Cu/Al)
- Long Time Setting: Fixed
- Instantaneous Setting: Fixed
- Continuous Current Rating: Standard
- Features: Quick-make/Quick-break mechanism, Common trip bars, Easy to spot trip indication
Certifications
-
UL Listed (File E11592)
Product Data
-
- Manufacturer: ABB
- Brand: ABB
- Model Number: THQB2130
- UPC: 783164012255
