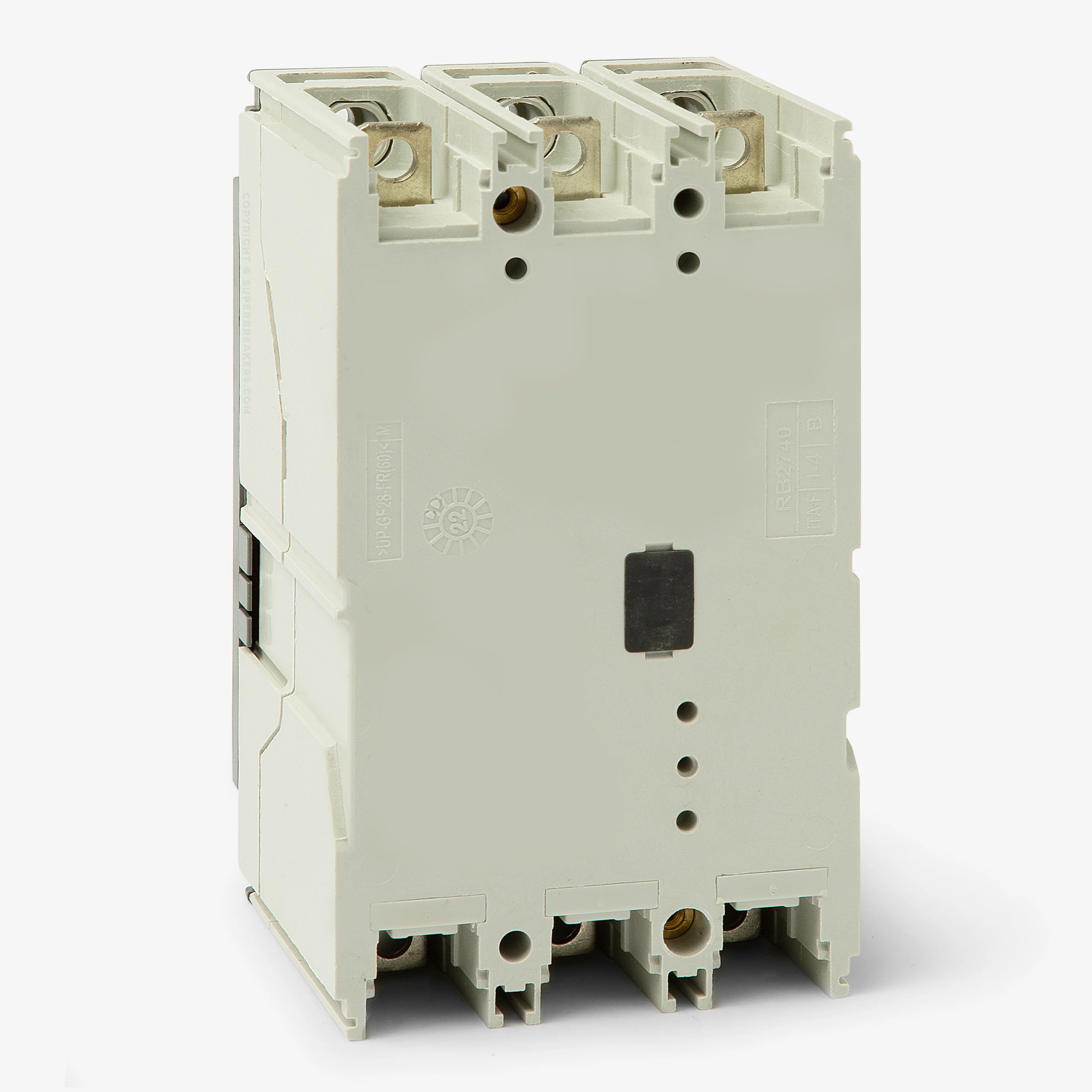

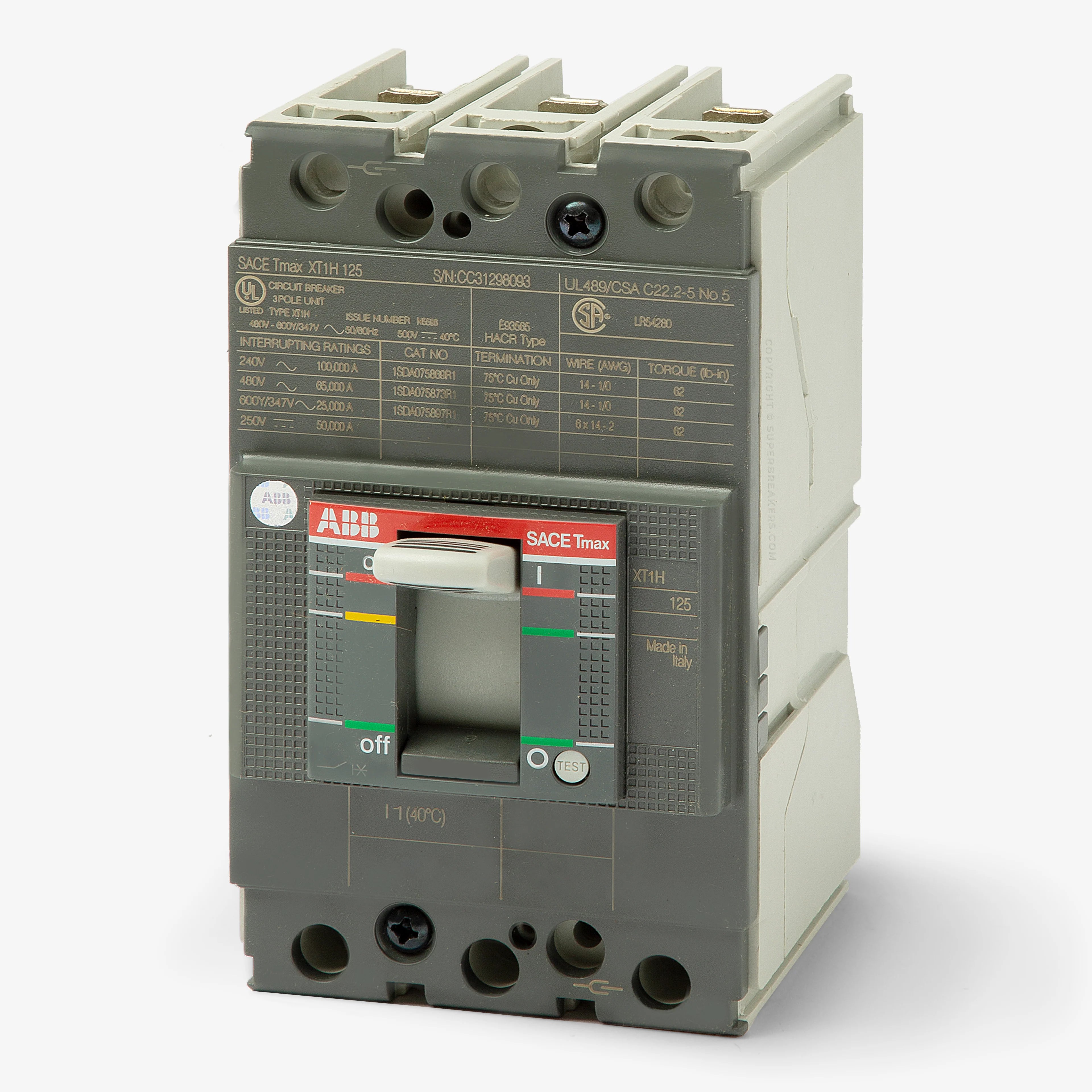

ABB XT1HU3015AFD000XXX 15A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 100kAIC

The ABB XT1HU3015AFD000XXX is a molded case circuit breaker from the XT1 series, designed for high-performance current-limiting protection in modern electrical distribution systems. Featuring a 3-pole configuration and a 15 Amp rating, it uses a fixed thermal-magnetic trip unit to provide reliable long-time and instantaneous protection. Engineered for unit mount installation, it integrates seamlessly into ABB SACE Tmax XT panelboards and switchboards, offering advanced safety and compact design efficiency.

Voltage and Rating

• Current Rating: 15 A
• Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC
• AIC Rating:
  • 100kA @ 240VAC
  • 65kA @ 480VAC
  • 25kA @ 600Y/347VAC
  • 50kA @ 250VDC

Key Specifications

• Device Type: Molded Case Circuit Breaker
• Series: XT1
• Number of Poles: 3-Pole
• Phase: 3 Phase
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Mounting Type: Unit Mount

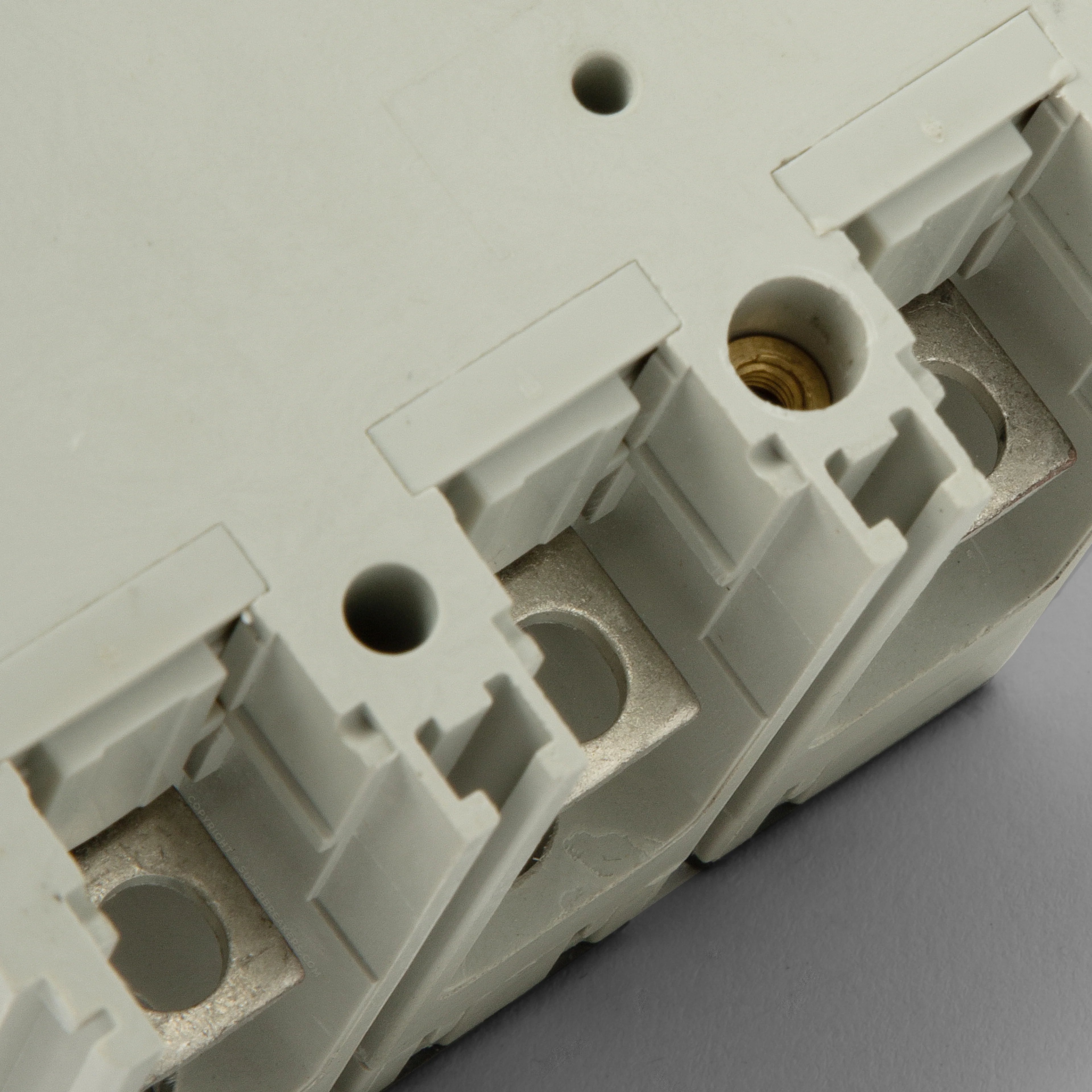

• Terminal Type: Lugs
• Application: Power distribution / industrial switchboards

Technical Specifications

• Wire Range: 10 AWG – 2/0 AWG (Cu/Al)
• Max Wire: 2/0 AWG
• Min Wire: 10 AWG
• Temperature Rating: -25°C to 70°C
• Construction Features: HACR Rated, Reverse Feed, Double Insulated
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approvals: CE, CSA, HACR, IEC, UL, cULus
• Accessories Available: Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle
• Accessories Included: Load Side Lugs

Product Data

• Manufacturer: ABB
• Model Number: XT1HU3015AFD000XXX
• Series: XT1
• Product Type: Molded Case Circuit Breaker
• For Use With: ABB SACE Tmax XT Panelboards and Switchboards
