ABB

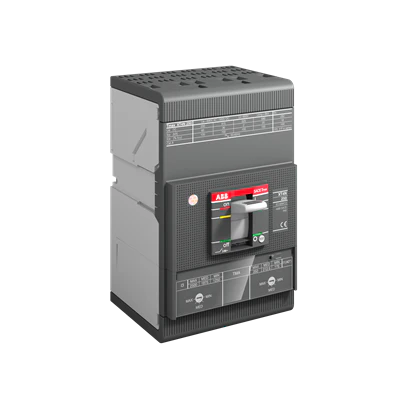

ABB XT1HU3035AFF000XXX 35A 3P Molded Case Circuit Breaker – Tmax XT Series – TMF Trip Unit – UL 489

In stock
SKU: XT1HU3035AFF000XXX GTIN/UPC: 1564478675
$572.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The ABB XT1HU3035AFF000XXX is a 3-pole molded case circuit breaker from the Tmax XT series, designed for reliable overcurrent protection in industrial and commercial power distribution systems. Rated at 35A, it features a fixed thermal-magnetic (TMF) trip unit that provides dependable long-time and instantaneous protection. Its compact XT1 frame is suitable for panel installations and supports optional accessories for enhanced functionality.

Voltage and Rating

  • Current Rating: 35 A
  • Maximum Voltage: 600 VAC
  • Trip Technology: Thermal Magnetic (TMF)

Key Specifications

  • Device Type: Molded Case Circuit Breaker
  • Series: Tmax XT
  • Number of Poles: 3-Pole
  • Mounting Type: Panel Mount
  • Terminal Type: Bolt-On
  • Neutral Pole: No
  • 100% Rated: No
  • Application: Electrical distribution protection

Technical Specifications

  • Trip Unit: Fixed Thermal / Fixed Magnetic
  • Auxiliary Switch: Optional
  • Shunt Trip: Optional
  • Undervoltage Release: Optional
  • Standards: UL 489
  • Approvals: CSA, IEC, UL

Product Data

  • Manufacturer: ABB
  • Model Number: XT1HU3035AFF000XXX
  • Part Number: 1SDA074698R1
  • Product Series: Tmax XT
  • Product Type: Molded Case Circuit Breaker
  • Gross Weight: 2.43 lbs
  • Net Weight: 2.43 lbs
  • Type Circuit Breakers
  • Vendor ABB
  • Brand ABB
