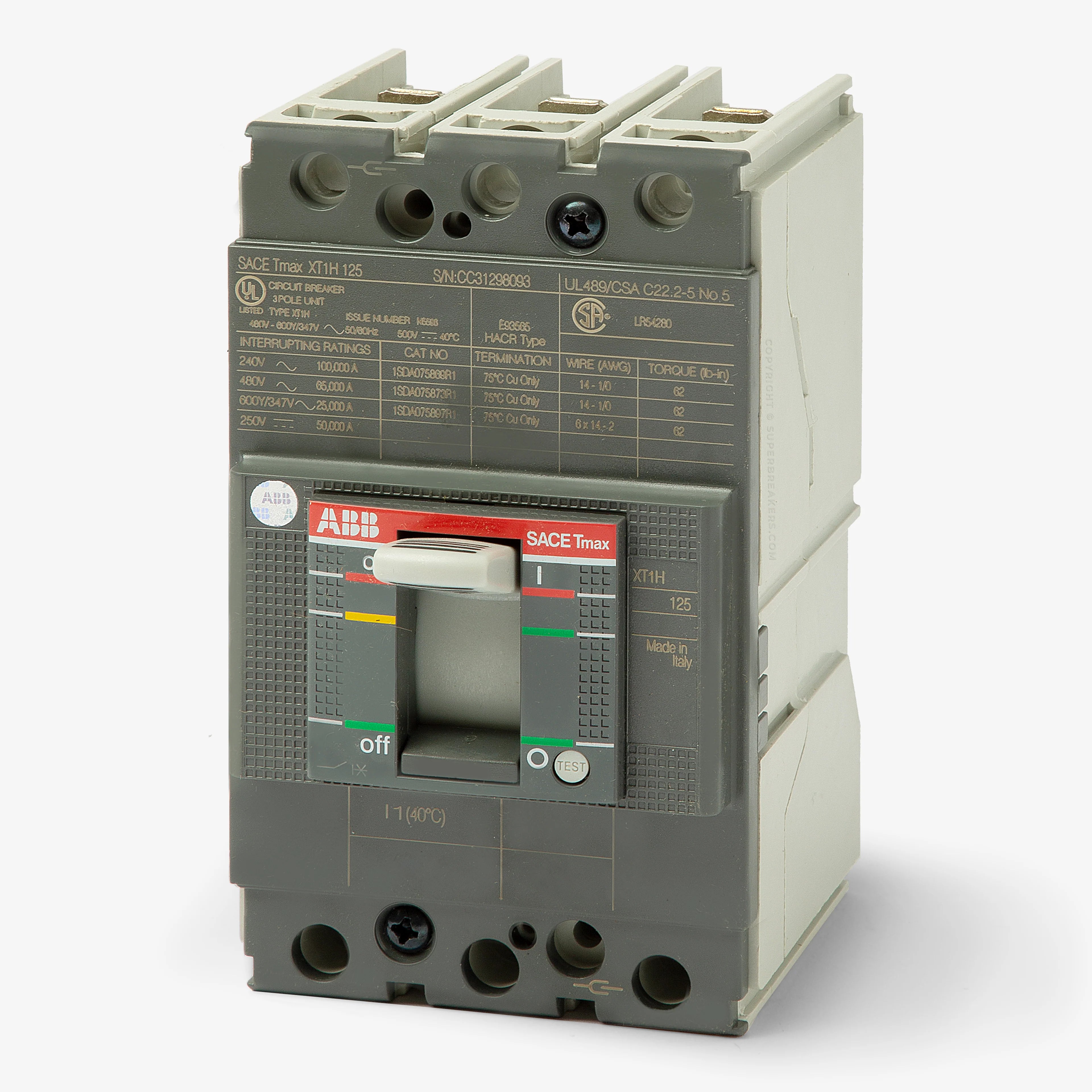

ABB XT1HU3050AFD000XXX 50A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 65kA @ 480V

In stock
SKU: XT1HU3050AFD000XXX GTIN/UPC: 56221750576
$539.00
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The ABB XT1HU3050AFD000XXX is a 3-pole molded case circuit breaker from the Tmax XT1 series, designed for industrial-grade power distribution and protection. Rated at 50A, it provides reliable current-limiting performance in a compact XT1 frame. It is engineered for use in ABB ReliaGear neXT panelboards, SB switchboards, and Tmax XT enclosures, serving as a replacement for legacy T1H050TW devices. With a fixed thermal-magnetic trip unit, it delivers dependable LI (long-time and instantaneous) protection.

Voltage and Rating

  • Current Rating: 50 A
  • Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC
  • AIC Rating:
    • 100kA @ 240VAC
    • 65kA @ 480VAC
    • 25kA @ 600Y/347VAC
    • 50kA @ 250VDC

Key Specifications

  • Device Type: Molded Case Circuit Breaker
  • Series: XT1
  • Number of Poles: 3-Pole
  • Phase: 3 Phase
  • Trip Technology: Thermal Magnetic
  • Trip Function Code: LI
  • Trip Function: Long-Time, Instantaneous
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic
  • Mounting Style: Unit Mount
  • Terminal Type: Lugs
  • Application: Industrial power distribution

Technical Specifications

  • Wire Range: 10 AWG – 2/0 AWG
  • Max Wire: 2/0 AWG
  • Min Wire: 10 AWG
  • Temperature Rating: -25°C to 70°C
  • Construction Features: HACR Rated, Current Limiting, Double Insulated, Reverse Feed
  • Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
  • Approvals: CE, CSA, cULus, IEC, UL
  • Accessories Available: Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle
  • Accessories Included: Lugs Included

Product Data

  • Manufacturer: ABB
  • Model Number: XT1HU3050AFD000XXX
  • Product Series: XT1 (Tmax XT)
  • Product Type: Molded Case Circuit Breaker
  • For Use With: ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards, Tmax XT Enclosures
  • Type Circuit Breakers
  • Vendor ABB
  • Brand ABB
