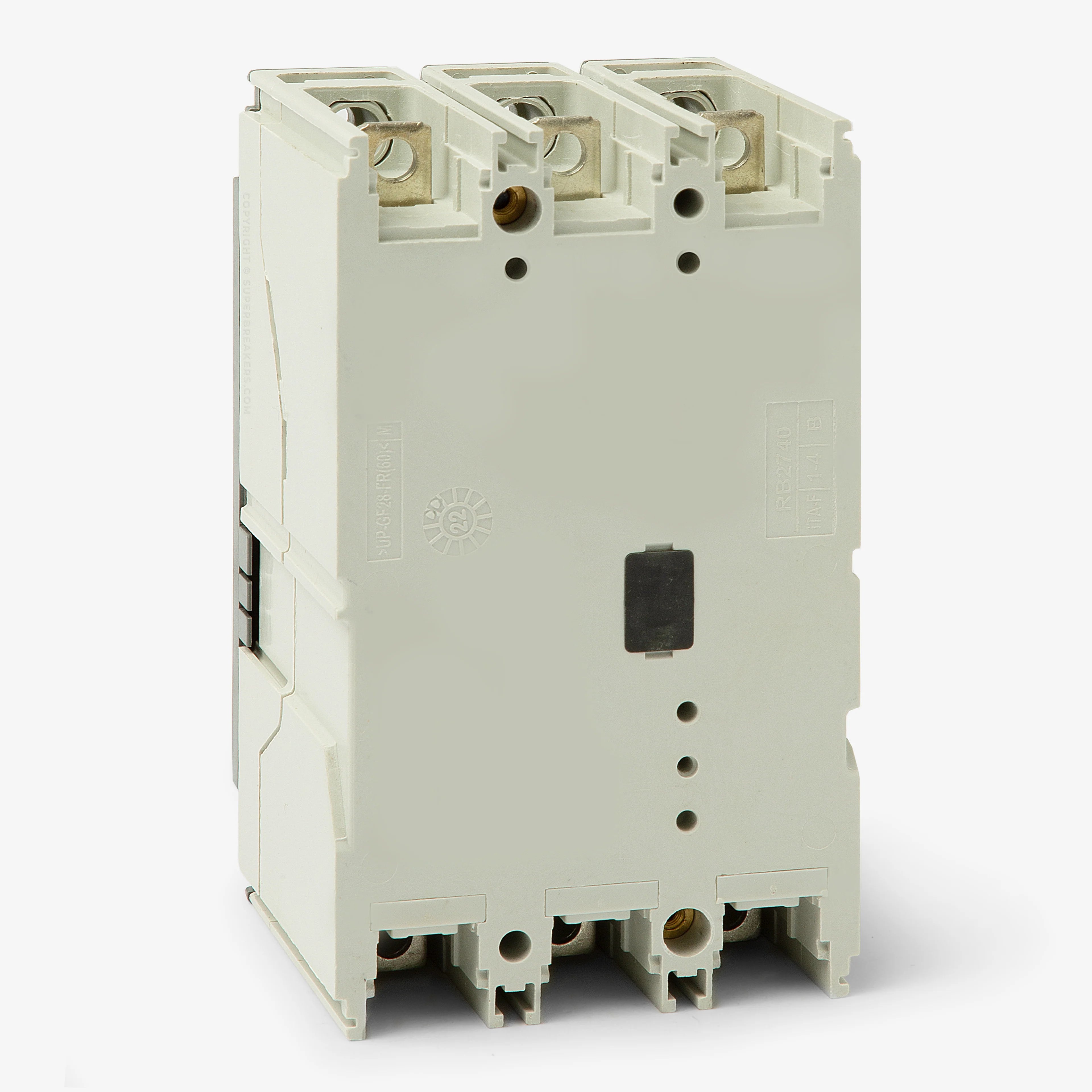

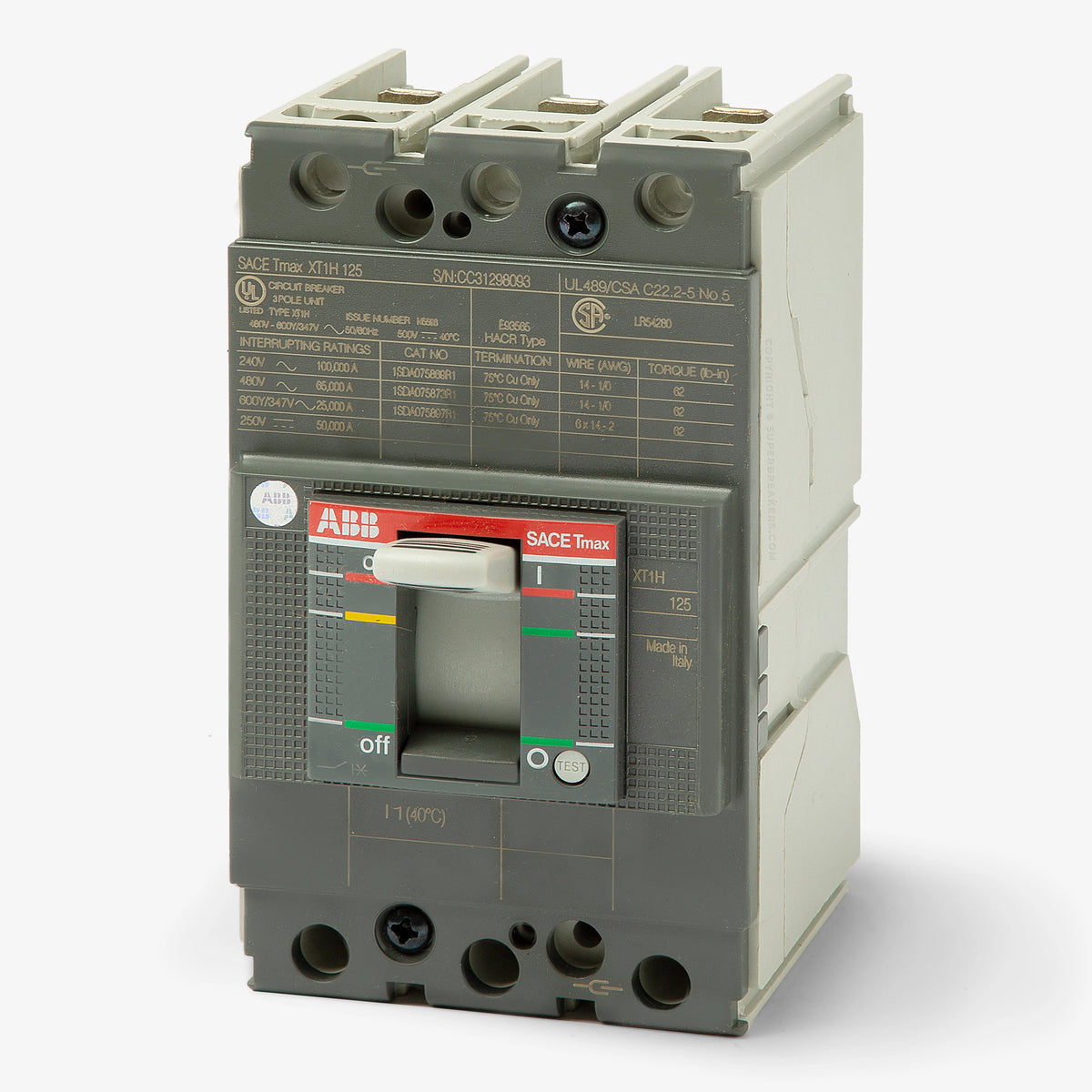

ABB XT1NU3015AFD000XXX 15A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 50kA @ 240V

The ABB XT1NU3015AFD000XXX is a 3-pole, 15A molded case circuit breaker from the SACE Tmax XT family, designed for industrial and commercial power distribution protection. It features a fixed thermal-magnetic (LI) trip unit that provides reliable long-time and instantaneous protection. Engineered for unit mount installation, it integrates into ABB ReliaGear NeXT panelboards and ReliaGear SB switchboards, serving as a direct replacement for legacy T1N015TL breakers. The XT1N frame offers strong fault-clearing capability in a compact design and is HACR rated for HVAC applications.

Voltage and Rating

• Current Rating: 15 A
• Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC
• AIC Rating:
  • 50kA @ 240VAC
  • 25kA @ 480VAC
  • 18kA @ 600Y/347VAC
  • 35kA @ 250VDC

Key Specifications

• Device Type: Molded Case Circuit Breaker
• Series: XT1 (XT1N Frame)
• Number of Poles: 3-Pole
• Phase: 3 Phase
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Mounting Style: Unit Mount

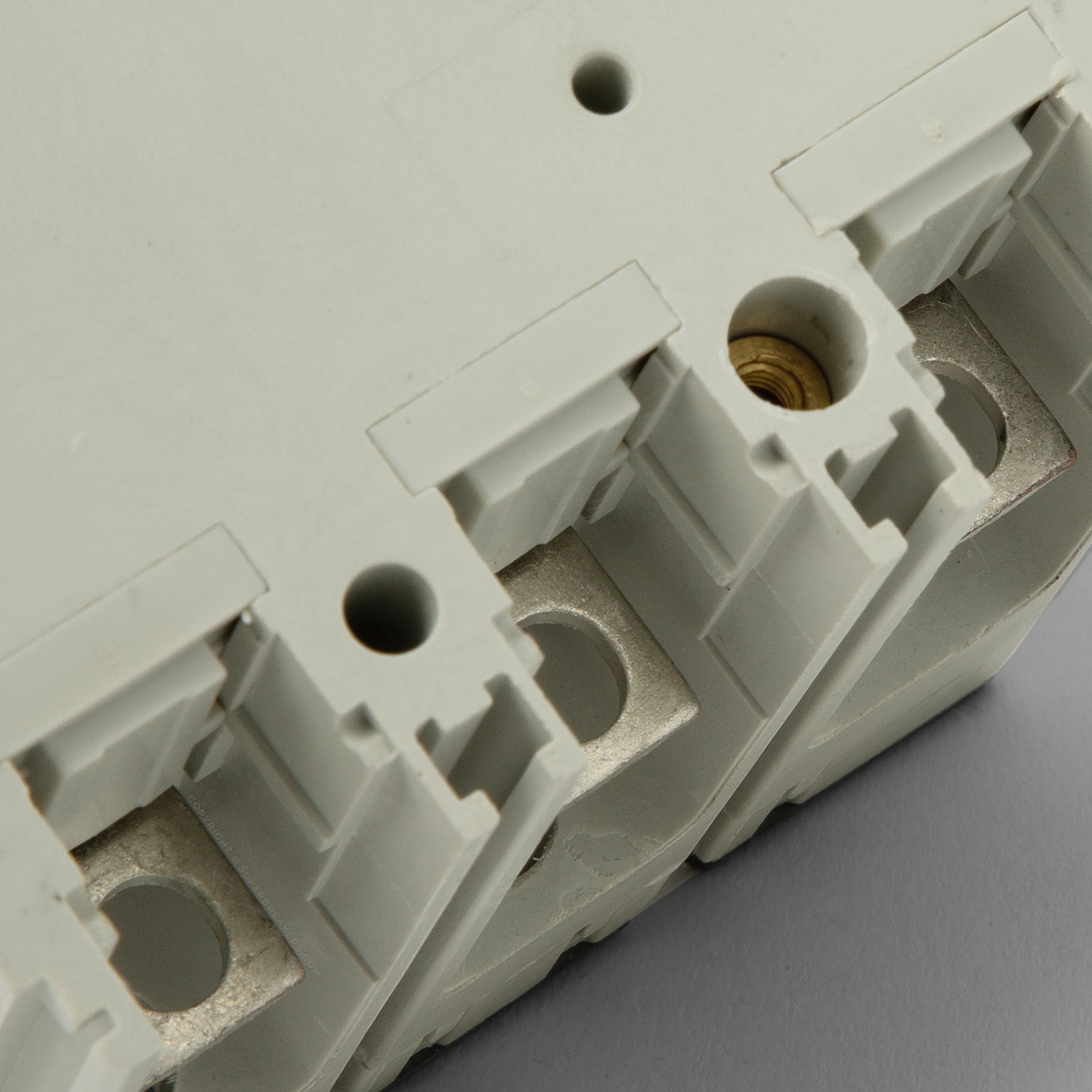

• Terminal Type: Lugs
• Application: Industrial and commercial electrical distribution

Technical Specifications

• Wire Range: 10 AWG – 2/0 AWG
• Max Wire: 2/0 AWG
• Min Wire: 10 AWG
• Temperature Rating: -25°C to 70°C
• Construction Features: HACR Rated, Reverse Feed, Double Insulated
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approvals: CE, CSA, cULus, HACR, IEC, UL
• Accessories Available: Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch
• Accessories Included: Load Side Lugs (Kit FC CuAl 10–2/0 AWG)

Product Data

• Manufacturer: ABB
• Model Number: XT1NU3015AFD000XXX
• Product Series: XT1 (SACE Tmax XT)
• Product Type: Molded Case Circuit Breaker
• For Use With: ABB ReliaGear NeXT Panelboards and ReliaGear SB Switchboards
