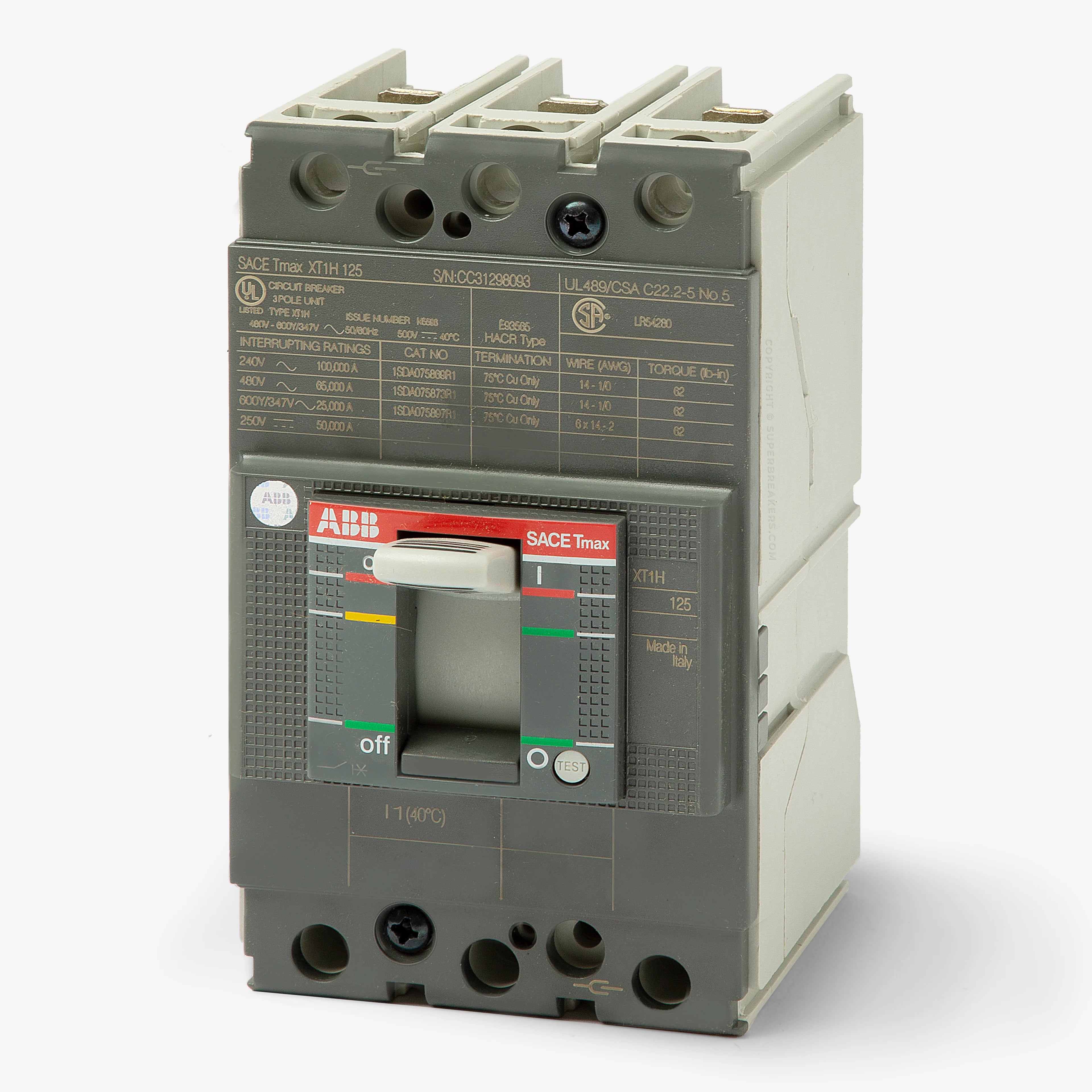

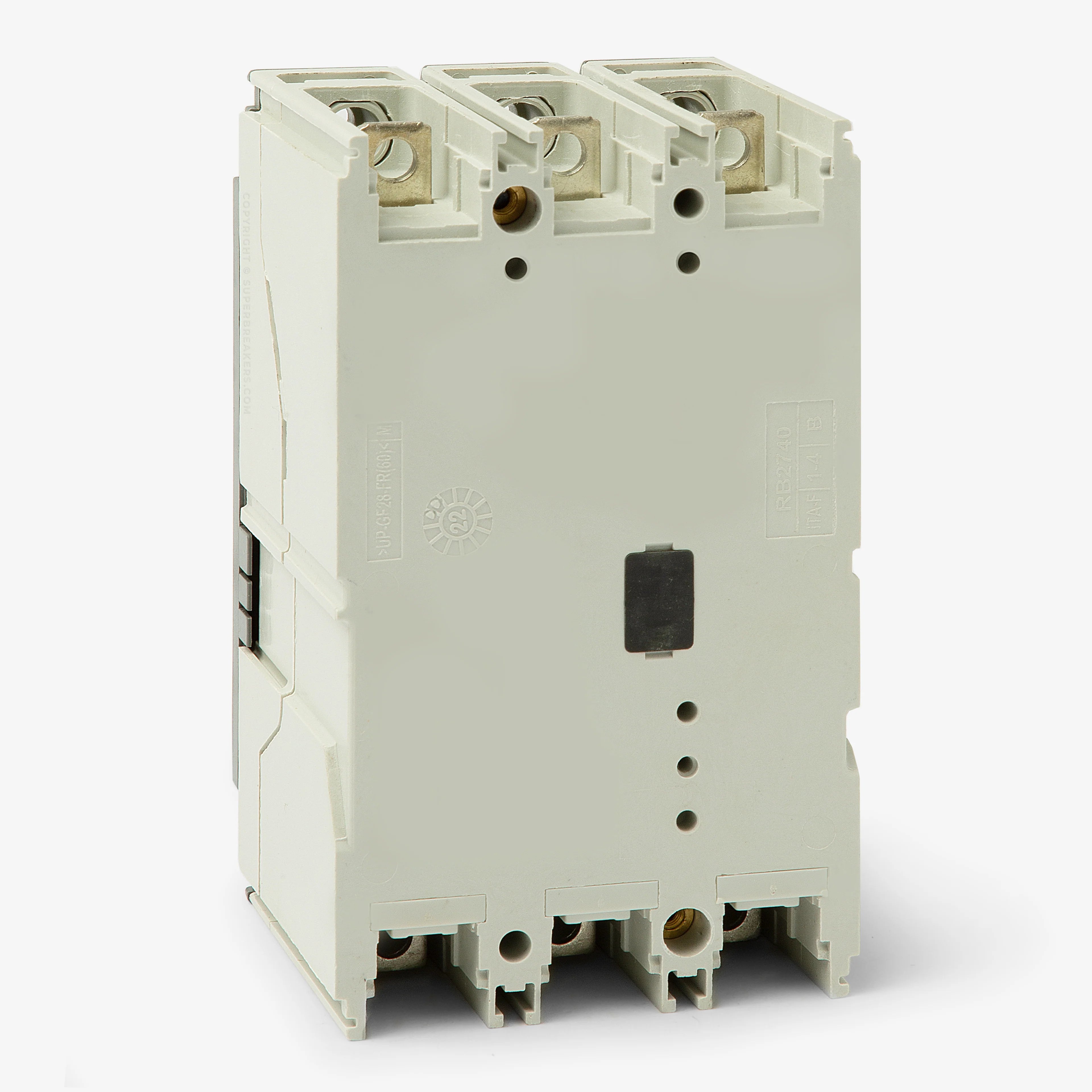

ABB XT1NU3020AFD000XXX 20A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 25kA @ 480V

The ABB XT1NU3020AFD000XXX is a 20A, 3-pole molded case circuit breaker from the SACE Tmax XT1N series, designed for reliable industrial and commercial power distribution. It features a fixed thermal-magnetic trip unit that provides dependable long-time and instantaneous protection. Engineered for unit mount installation, it integrates into ABB ReliaGear neXT panelboards, ReliaGear SB switchboards, and SACE Tmax XT enclosures, serving as a direct replacement for legacy T1N020TW breakers.

Voltage and Rating

• Current Rating: 20 A
• Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC
• AIC Rating:
  • 50kA @ 240VAC
  • 25kA @ 480VAC
  • 18kA @ 600Y/347VAC
  • 35kA @ 250VDC
  • 35kA @ 500VDC

Key Specifications

• Device Type: Molded Case Circuit Breaker
• Series: XT1 (XT1N Frame)
• Number of Poles: 3-Pole
• Phase: 3 Phase
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Mounting Style: Unit Mount

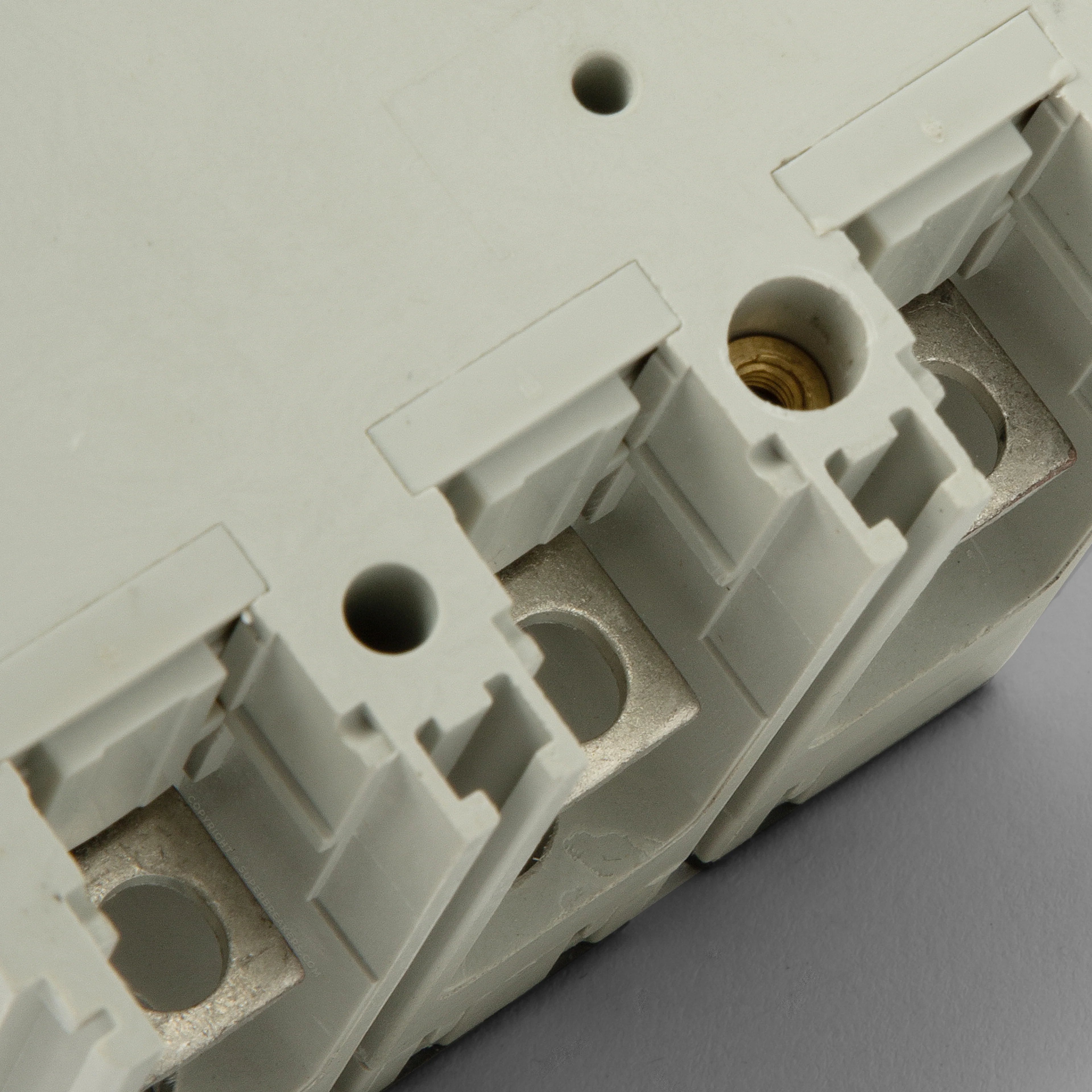

• Terminal Type: Lugs
• Application: Commercial and industrial power distribution

Technical Specifications

• Wire Range: 10 AWG – 2/0 AWG
• Max Wire: 2/0 AWG
• Min Wire: 10 AWG
• Temperature Rating: -25°C to 70°C
• Construction Features: HACR Rated, Double Insulated, Reverse Feed
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approvals: CE, CSA, cULus, IEC, KEMA, RINA, UL
• Accessories Available: Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment
• Accessories Included: Load Side Lugs (1SDA075837R1)

Product Data

• Manufacturer: ABB
• Model Number: XT1NU3020AFD000XXX
• Product Series: XT1 (SACE Tmax XT1N)
• Product Type: Molded Case Circuit Breaker
• For Use With: ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards, ABB SACE Tmax XT Enclosures
