ABB XT1NU3035AFD000XXX 35A 3P Molded Case Circuit Breaker – XT1 Series – Thermal Magnetic – 25kA @ 480V

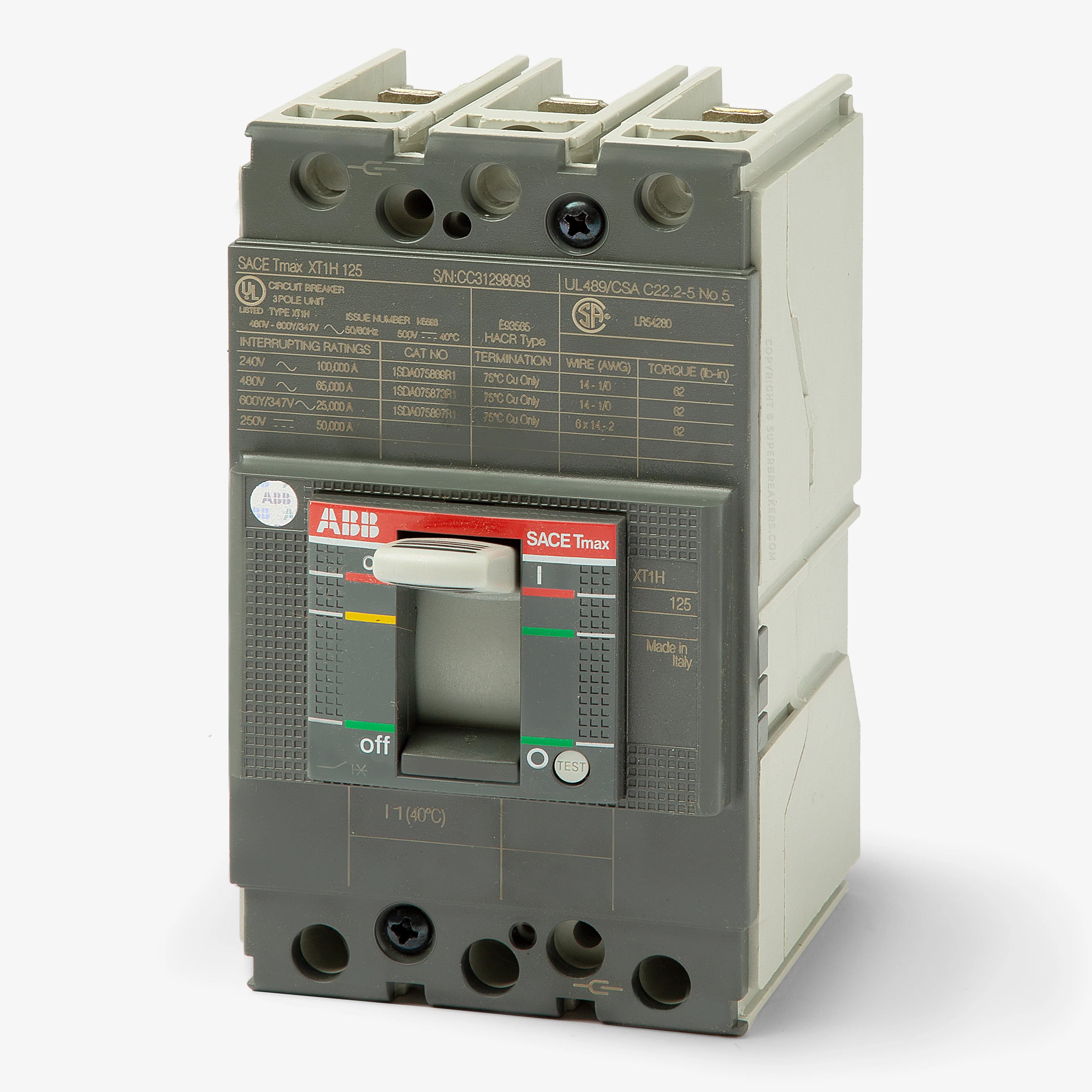

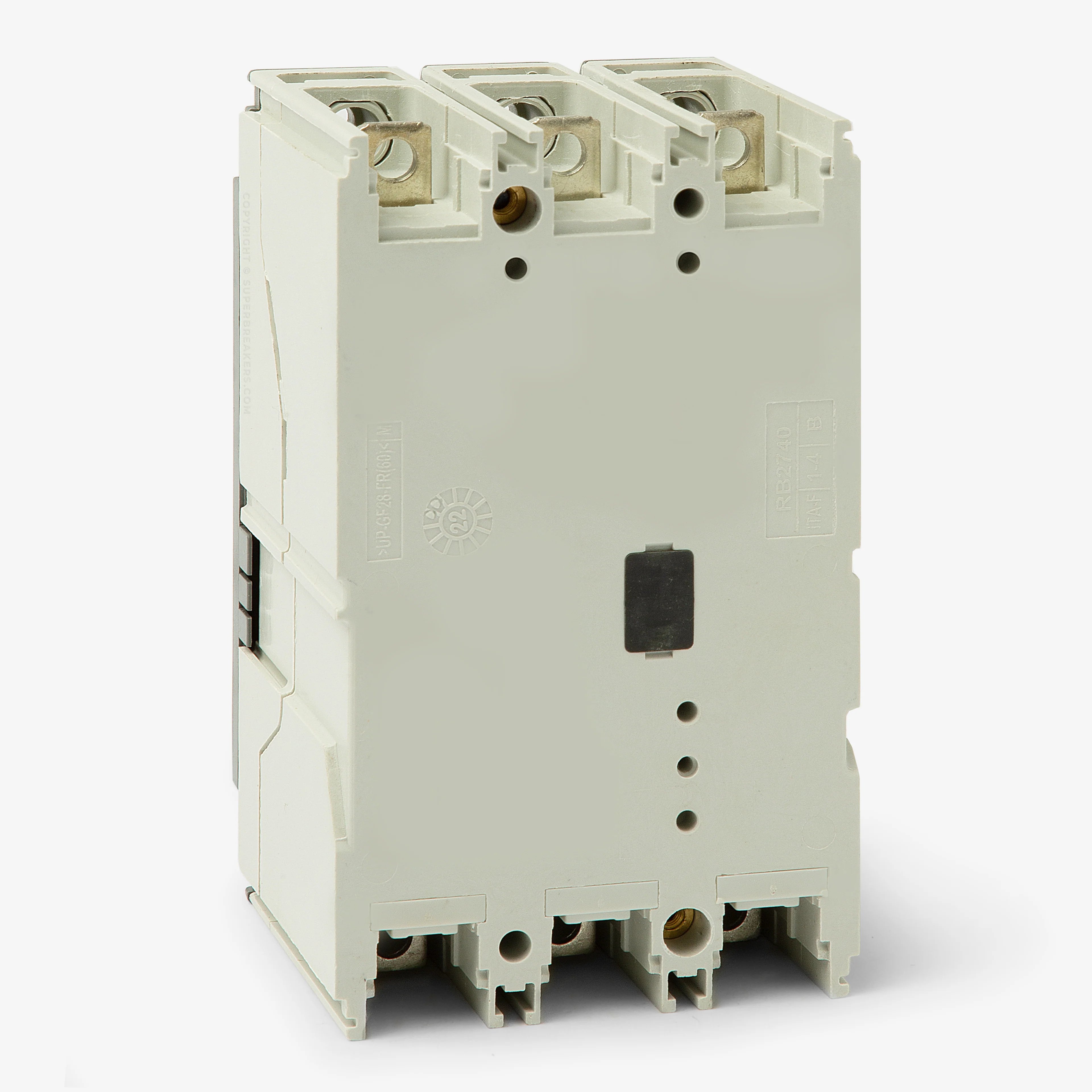

The ABB XT1NU3035AFD000XXX is a 35A, 3-pole molded case circuit breaker from the SACE Tmax XT family, designed for reliable commercial and industrial power distribution. It features a fixed thermal-magnetic (LI) trip unit that delivers precise long-time and instantaneous protection. Built for unit mount installation, it integrates into ABB SACE Tmax XT panelboards and switchboards, serving as a direct replacement for legacy Tmax T1 series breakers while maintaining system continuity.

Voltage and Rating

• Current Rating: 35 A
• Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC
• AIC Rating:
  • 50kA @ 240VAC
  • 25kA @ 480VAC
  • 18kA @ 600Y/347VAC
  • 35kA @ 250VDC
  • 35kA @ 500VDC

Key Specifications

• Device Type: Molded Case Circuit Breaker
• Series: XT1
• Number of Poles: 3-Pole
• Phase: 3 Phase
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Mounting Style: Unit Mount

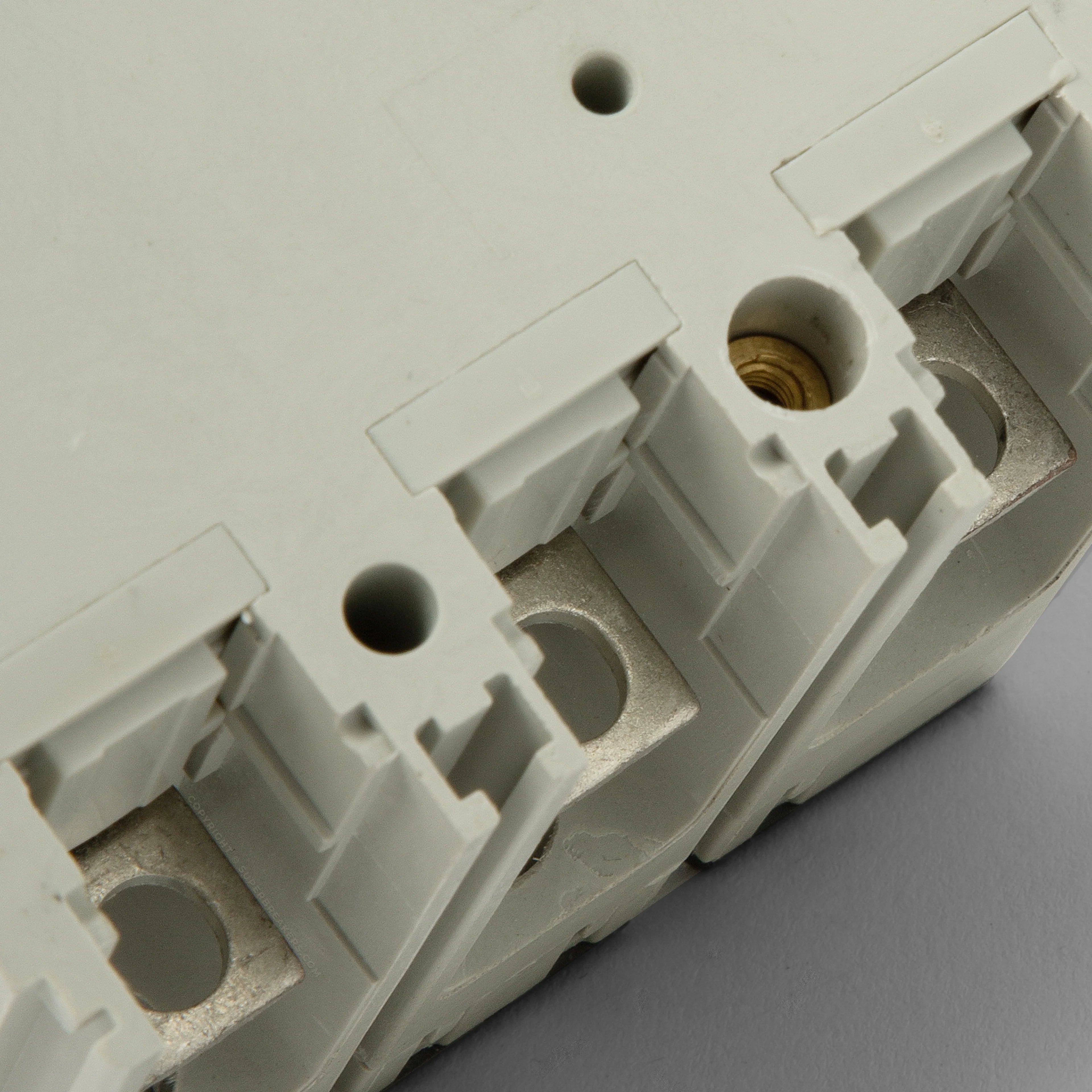

• Terminal Type: Lugs (not included)
• Application: Commercial and industrial power distribution

Technical Specifications

• Wire Range: 10 AWG – 2/0 AWG
• Max Wire: 2/0 AWG
• Min Wire: 10 AWG
• Temperature Rating: -25°C to 70°C
• Construction Features: HACR Rated, Current Limiting, Reverse Feed, Double Insulated
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approvals: CCC, CE, CSA, cULus, IEC, KEMA, RINA, RoHS, UL
• Accessories Available: Shunt Trip, Auxiliary Switch, Undervoltage Release, Motor Operator, Padlock Attachment
• Accessories Included: Mounting Hardware, Phase Barriers (Lugs not included)

Product Data

• Manufacturer: ABB
• Model Number: XT1NU3035AFD000XXX
• Product Series: XT1 (SACE Tmax XT)
• Product Type: Molded Case Circuit Breaker
• For Use With: ABB SACE Tmax XT Panelboards and Switchboards
